PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3300 × 1600 × 850 mm
Seat height (floor to cushion top)	440 mm
Seat depth (cushion front to back)	660 mm
Backrest height (seat to top of back cushion)	410 mm
Armrest width (padded top surface)	240 mm
Chaise lounge depth (corner to end)	1600 mm
Leg height (floor to sofa base)	100 mm
Cushion thickness (seat foam core)	250 mm
Back cushion thickness	200 mm
Integrated arm side shelf dimensions	300 x 200 mm
Total seating width (main straight section)	2300 mm
Seat Cushion Thickness	180 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat static weight capacity	150 kg
Total sofa static weight capacity	600 kg
Seat foam density	45D
Back foam/fill density	35D
Fabric abrasion resistance	30000 double rubs
Seam stitch pitch	8 stitches per 30mm
Net product weight	127 kg
USB charging port output	5V/2.1A
LED arm panel lifespan	50000 hours
Seat Foam Density / Rebound	40 kg/m³ / 60%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Internal frame	Kiln-dried solid hardwood + engineered plywood
Seat cushion core	45D high-resilience polyurethane foam
Back cushion fill	35D foam + hollow fiber blend
Upholstery fabric	Light grey textured woven polyester performance fabric
Support legs	Matte black powder-coated carbon steel pegs
Modular connection hardware	Zinc-plated steel latch brackets
Armrest integrated panel	Matte black ABS trim with frosted acrylic light diffuser
Included throw pillows	2 brown textured, 2 dark charcoal woven fabric covers with fiber fill
Modular seat base webbing	50mm wide elastic webbing suspension
Armrest internal structure	Plywood frame wrapped in 20mm high-density foam padding
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular section reconfiguration	Tool-free steel latch connection for chaise position adjustment
Left section backrest adjustment	Manual incline adjustment with 3 locked recline positions
Integrated arm charging	Dual USB-A ports recessed in right armrest panel for device charging
Left arm accent lighting	Warm white dimmable LED strip integrated into inner left armrest
Left arm side shelf	Fixed flat top surface for holding small items, lamps or reading materials
Cushion reversibility	Loose seat and back cushions removable for cleaning and rotation
Floor protection	Non-marking plastic end caps on all metal legs to prevent floor scratches
Throw pillow compatibility	Matching decorative pillows included, positioned for lumbar and aesthetic support
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room	Suitable for open-plan modern apartments as primary lounge seating
Home media room	Deep chaise and plush cushions support extended viewing and relaxation
Small office lounge area	Neutral light grey finish fits contemporary workspace reception zones
Loft/studio open space	Modular design adapts to flexible open floor plan layouts
Target user group	Urban professionals seeking minimalist, multi-functional lounge furniture
Recommended pairing	Pair with low-profile metal and glass side tables as shown in product image

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Applicable for strength, durability and safety requirements for domestic seating
EN 1021-1:2014	Applicable for upholstery flammability resistance to cigarette ignition

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for general technical requirements of wooden furniture frames
GB 18401-2010	Applicable for safety of upholstery textile materials, formaldehyde limits
GB/T 1952.1-2012	Applicable for mechanical performance test methods for upholstered sofas
GB 20286-2006	Applicable for flammability requirements for upholstered furniture in public spaces

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for general technical requirements of wooden furniture frames;
2. GB 18401-2010: Applicable for safety of upholstery textile materials, formaldehyde limits;
3. GB/T 1952.1-2012: Applicable for mechanical performance test methods for upholstered sofas;
4. GB 20286-2006: Applicable for flammability requirements for upholstered furniture in public spaces;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SEC-LCH-3300-GRY

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SEC-LCH-3300-GRY

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SEC-LCH-3300-GRYOpen Export Tool

Quick Actions

Post an RFQ

Product Description

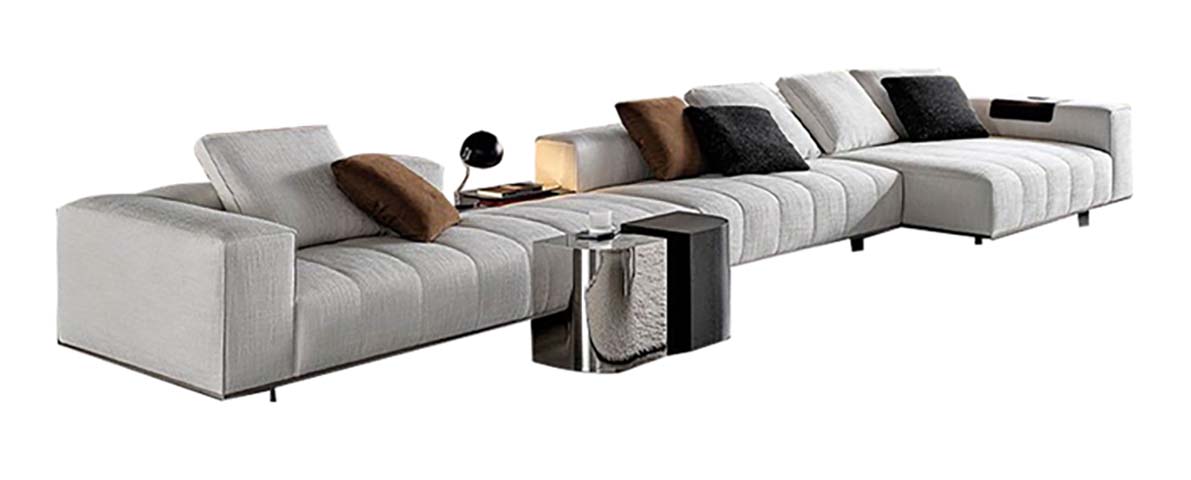

This light grey fabric L-shaped modular sectional sofa blends streamlined minimalist design with targeted functional details for modern living and work spaces. Its low-profile silhouette forms a classic corner configuration with an extended chaise lounge, accented by channel-tufted detailing on the upholstered surfaces. The set includes four coordinating throw pillows—two in brown textured fabric, two in dark charcoal woven fabric—to add subtle tonal depth, and sits on short matte black metal legs that elevate the frame just enough to preserve an open, uncluttered visual presence in rooms of varying scales.
Constructed for long-term regular use, the sofa features a kiln-dried solid hardwood and engineered plywood internal frame, supported by wide elastic webbing suspension across the modular seat bases. Seat cushions use high-resilience 45D polyurethane foam cores, while back cushions blend 35D foam with hollow fiber for a balanced, supportive feel. The light grey textured woven polyester performance upholstery holds up to frequent contact, and all metal legs are fitted with non-marking plastic end caps to protect floor surfaces. Modular sections connect via zinc-plated steel latch brackets, and padded armrests are finished with matte black ABS trim for clean, lasting edges.
Practical, user-centric features are integrated directly into the design to reduce reliance on extra furniture accessories. The chaise position can be adjusted without tools via the steel latch connection system to fit different room layouts, and the left section backrest offers three locked manual recline positions for customized comfort. The right armrest houses recessed dual USB-A ports for convenient device charging, while the inner left armrest includes a dimmable warm white LED strip for soft ambient lighting, paired with a fixed flat side shelf to hold small items, reading materials, or table lamps. All loose seat and back cushions are fully removable and reversible to simplify cleaning and extend even wear over time.
This sofa works equally well as primary lounge seating in open-plan modern residential apartments and home media rooms, where its deep chaise and plush cushions support extended relaxation. It also fits seamlessly into small office lounge areas and contemporary loft or studio open spaces, as its neutral light grey finish complements a range of modern decor palettes, and its modular structure adapts to flexible floor plan arrangements. For procurement, note the unit ships in two cartons, with a recommended assembly time of 40 minutes per set. Total static weight capacity reaches 600kg, with a 150kg per-seat static weight limit, making it suitable for regular multi-user use. For a cohesive look, pair the sofa with matching low-profile metal and glass side tables aligned with its minimalist aesthetic.

Light Grey Fabric L-Shaped Modular Sectional Sofa with Chaise and Integrated Arm Features Specifications
