Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 3500 x 1600 x 820 mm | |
|---|---|---|
| Seat height | 450 mm | |
| Seat depth (standard seat units) | 700 mm | |
| Chaise lounge depth | 1600 mm | |
| Armrest width (left rolled arm) | 290 mm | |
| Armrest height | 620 mm | |
| Back cushion height | 370 mm | |
| Seat cushion thickness | 240 mm | |
| Back cushion thickness | 180 mm | |
| Throw cushion dimensions | 500 x 500 mm | |
| Plinth base height | 40 mm | |
| Individual seat unit width | 700 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Overall weight | 120 kg | |
|---|---|---|
| Per-seat weight capacity | 136 kg | |
| Total weight capacity | 544 kg | |
| Seat foam density | 42 kg/m³ | |
| Back fill density | 28 kg/m³ | |
| Seam stitch pitch | 8 stitches per inch | |
| Foam rebound rate | 60% | |
| Structural frame warranty | 3 years | |
| Available upholstery color count | 6 | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% |
Core acceptance fields · Panels / hardware / frame / upholstery
| Internal frame | Kiln-dried solid hardwood + 18mm plywood | |
|---|---|---|
| Seat support system | 8 gauge sinuous springs + 50mm elastic webbing | |
| Upholstery fabric | 350gsm matte camel velvet, 50000 double rub abrasion rating | |
| Seat cushion fill | 42D high-resilience polyurethane foam core wrapped in 20mm Dacron | |
| Back cushion fill | 28D polyurethane foam blended with polyester fiberfill | |
| Throw cushion fill | 100% hypoallergenic polyester fiberfill | |
| Plinth base | 2mm thick matte light champagne powder-coated steel | |
| Module connection hardware | Zinc-plated steel interlocking brackets | |
| Base underside padding | 3mm thick non-slip EVA foam | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
Adjustment / rotation / tilt / mobility / storage features

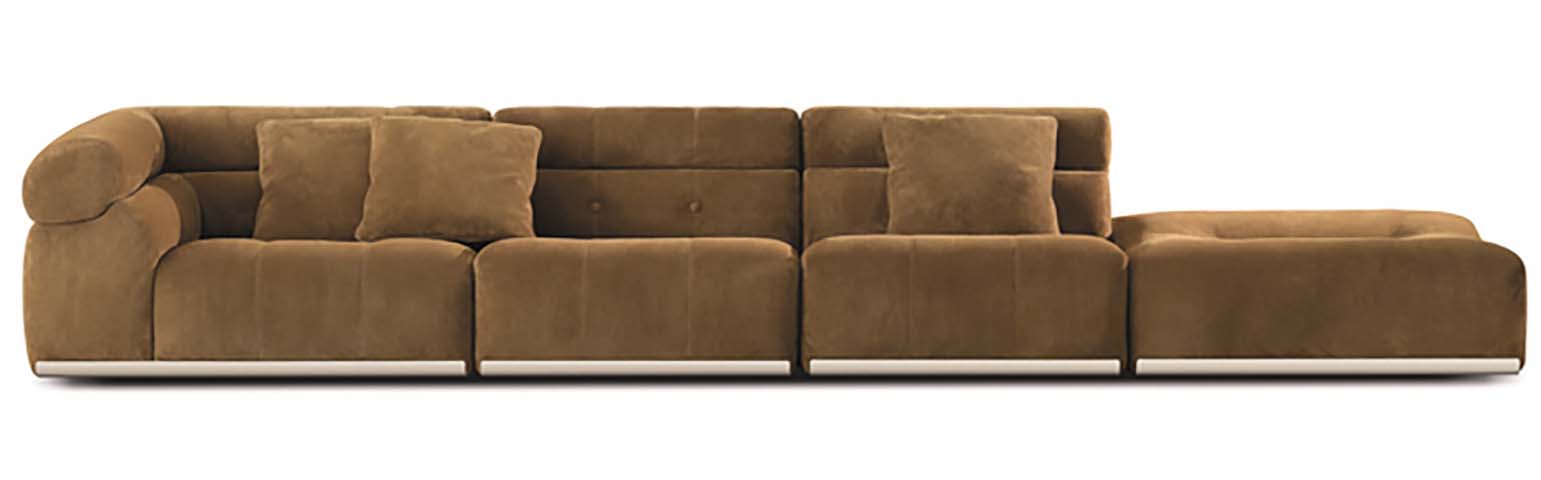

| Modular section configuration | Left rolled arm, 3 standard seats, fixed right chaise | |
|---|---|---|
| Cushion cover design | Zippered removable covers for spot cleaning | |
| Interlocking module system | All 4 sections connect with hidden under-base brackets to prevent shifting | |
| Seating orientation | Right-hand facing chaise as configured, reversible with matching armless module | |
| Lounging function | Extended right chaise supports full reclined leg rest for single user lounging | |
| Base design | Continuous floor-sitting plinth eliminates exposed legs for low-profile aesthetic | |
| Back cushion feature | Tufted middle back cushion with channel stitching for structured soft support | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Recommended spaces / users / usage modes
| Large open-plan living room | 3.5m length suits spacious residential lounge areas for family seating | |
|---|---|---|
| Modern minimalist interior schemes | Low-profile rounded design and neutral camel tone pairs with neutral decor | |
| Executive lounge waiting areas | Plush deep seating supports comfortable extended waiting for office guests | |
| High-end residential reception spaces | Sleek plinth base and soft silhouette fits luxury apartment entry seating zones | |
| Open loft residential spaces | Modular layout creates flexible zoning for large open interior spaces |
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Domestic furniture strength, durability and safety requirements for seating | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignitability resistance to smouldering cigarette |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal frame durability | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, applicable to formaldehyde emission control | |
| GB/T 1952.1-2012 | Test methods for upholstered sofas, applicable to seating durability and load testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal frame durability; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission control; 3. GB/T 1952.1-2012: Test methods for upholstered sofas, applicable to seating durability and load testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
