PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2950 × 2930 × 890 mm
Seat height from floor	510 mm
Seat depth (usable front-to-back)	585 mm
Back cushion height from seat	460 mm
Armrest height from floor	625 mm
Concealed support leg height	65 mm
Corner module footprint	990 x 990 mm
Chaise/extended seat segment depth	1755 mm
Seat cushion thickness	255 mm
Back cushion thickness	205 mm
Floor clearance under sofa base	25 mm
Throw pillow size (matching included set)	510 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Overall sofa net weight	161 kg
Per-seat static load capacity	300 kg
Total seating capacity	5 people
Cushion foam density	45 kg/m³
Foam rebound rate	60%
Seam stitch pitch	30 mm
Frame moisture content	12%
Warranty period	1 year
Available color options	3
Seat Foam Density / Rebound	40 kg/m³ / 60%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upholstery covering	Matte grey nubuck-textured performance fabric
Seat cushion fill	High-resilience polyurethane foam with pocket spring core
Back cushion fill	Blended high-density foam and polyester fiber wrap
Armrest and side panel upholstery	Button-tufted fabric with diamond stitching pattern
Internal support frame	Kiln-dried hardwood and plywood composite frame
Seat support system	8-gauge sinuous steel spring suspension with polypropylene webbing
Concealed support feet	Matte black finished hard plastic/wood block feet
Included throw pillows	Mixed textured woven fabric covers with fiber fill
Upholstery fabric abrasion resistance	50000 double rubs
Tufting buttons	Matching fabric-covered upholstery buttons
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular connection system	Heavy-duty alligator clip connectors secure adjacent seating modules
Cushion design	Removable seat and back cushions for easy cleaning and rotation
Layout flexibility	Reversible chaise configuration allows left or right extended seating
Seating function	Deep lounge depth supports upright seating, reclining, and casual lounging
Structural stability	Low wide base distributes weight evenly to prevent tipping
Floor protection	Anti-scratch pads on all concealed feet prevent hard floor damage
Pillow adjustability	Loose throw pillows can be repositioned for customized lumbar/neck support
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping cartons	4
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room	Open-plan lounge space for family relaxation and guest seating
Luxury apartment lounge	Contemporary high-end interior settings matching modern minimalist decor
Office reception/waiting area	Casual lounge-style waiting spaces for creative firms or executive suites
Home theater/media room	Deep lounge cushions support extended seated viewing sessions
Open-plan penthouse lounge	Large floorplan spaces requiring statement low-profile seating

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 1728:2012	Applicable for seat, back, and arm strength and durability testing
EN 1021-1:2014	Applicable for upholstery ignitability (smoldering cigarette)
EN 12520:2015	Applicable for domestic furniture seating strength and stability

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable for general technical requirements of wooden furniture frames
GB 18584-2001	Applicable for formaldehyde emission limits for interior wooden furniture
GB/T 1952.1-2012	Applicable for durability and safety testing of upholstered sofas

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable for general technical requirements of wooden furniture frames;
2. GB 18584-2001: Applicable for formaldehyde emission limits for interior wooden furniture;
3. GB/T 1952.1-2012: Applicable for durability and safety testing of upholstered sofas;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SEC-LTUFT-GRY-2950

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SEC-LTUFT-GRY-2950

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SEC-LTUFT-GRY-2950Open Export Tool

Quick Actions

Post an RFQ

Product Description

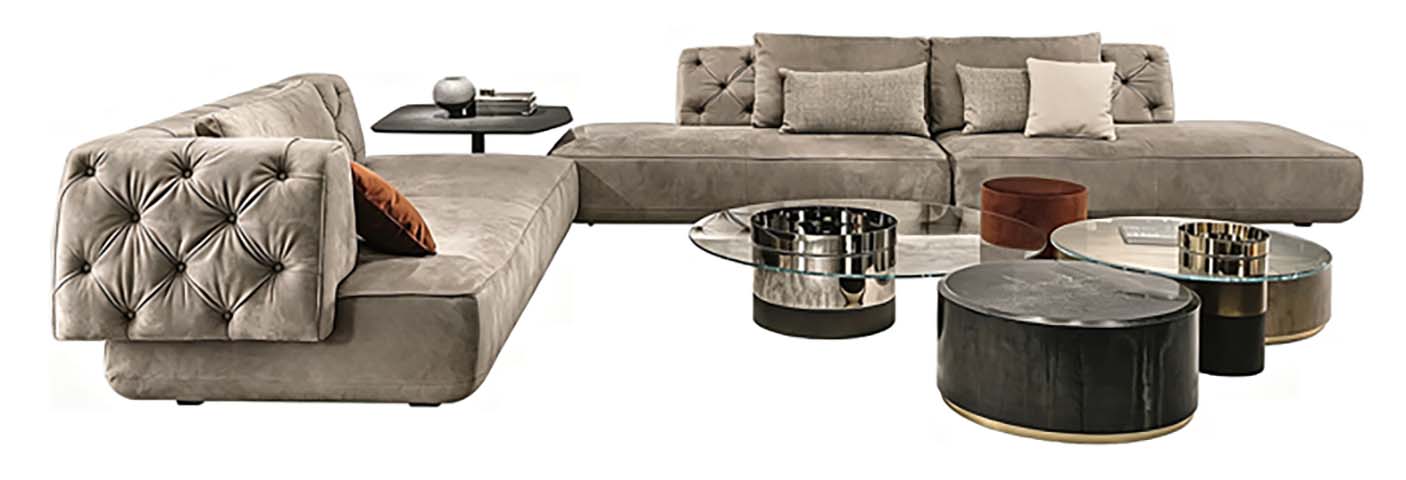

The Grey Tufted Low-Profile L-Shaped Modular Sectional Sofa delivers a refined modern lounge aesthetic anchored by a clean, low-slung L-shaped form. Its matte grey nubuck-textured performance upholstery is accented by diamond-pattern button tufting across armrests and side panels, complemented by mixed textured woven throw pillows that add subtle textural depth. The piece sits on concealed support feet, creating a streamlined, grounded silhouette that balances visual lightness with substantial, inviting presence. Construction prioritizes lasting durability and consistent comfort. The internal frame blends kiln-dried hardwood and plywood, treated to a stable moisture level to resist warping over time. Seat support relies on 8-gauge sinuous steel springs paired with polypropylene webbing, topped by seat cushions with a pocket spring core wrapped in high-resilience polyurethane foam; back cushions combine high-density foam with a soft polyester fiber wrap for plush, supportive give. Heavy-duty alligator clip connectors secure adjacent modules firmly, while matte black finished hard plastic and wood block feet sit flush against the floor, fitted with anti-scratch pads to protect hard surface flooring. Practical design features support flexible, long-term use. The modular configuration allows a reversible chaise, so the extended seating segment can be positioned to suit left or right layout preferences without additional components. Seat and back cushions are fully removable to simplify cleaning and regular rotation to extend wear life. The deep lounge seat depth accommodates upright seating, relaxed reclining, and casual lounging, while loose included throw pillows can be repositioned to provide customized lumbar or neck support. The low, wide base distributes weight evenly to prevent tipping, and the upholstery is engineered to withstand regular high-traffic use. The sofa supports total seating for five people, with consistent static load capacity per seat to accommodate regular daily use. This sectional fits seamlessly across both residential and commercial spaces. It works as a central seating piece for open-plan residential living rooms, luxury apartment lounges, penthouse entertaining areas, and dedicated home theater rooms where extended, comfortable viewing is a priority. For commercial settings, it brings a relaxed, contemporary feel to creative office reception areas, executive waiting zones, and other casual lounge-style public spaces. Procurement teams should note the sofa ships across multiple cartons, with straightforward assembly that does not require specialized trade support. The fixed L-shaped corner module footprint and extended chaise depth should be cross-referenced against intended space plans to ensure adequate clearance, with layout flexibility to adapt to both left and right chaise orientations. The unbranded design makes it easy to integrate with a range of modern minimalist interior palettes, without competing decorative branding elements.

Grey Tufted Low-Profile L-Shaped Modular Sectional Sofa Specifications
