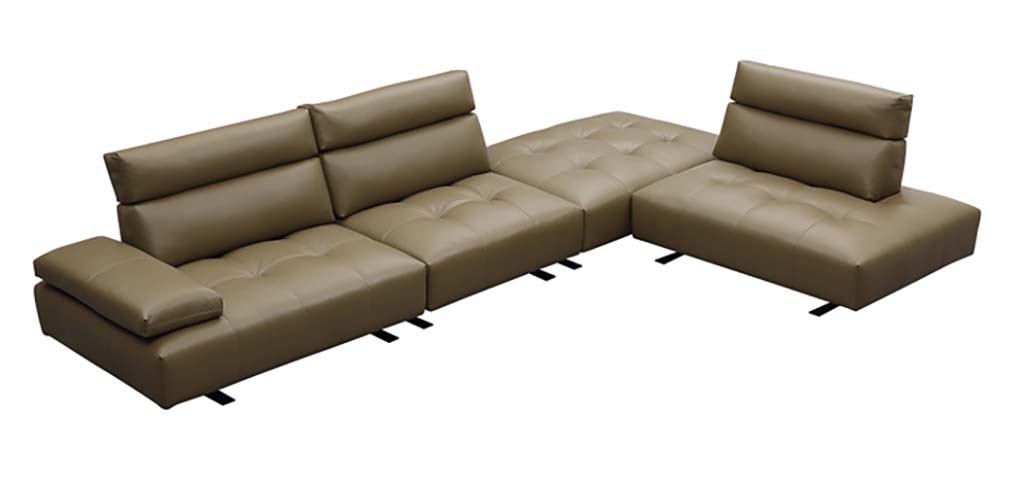

Product supplierTaupe Tufted Leather Modular U-Sectional Sofa with Adjustable Headrests, 1.4mm thick full-aniline top-grain taupe leather
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3300 × 1800 × 980 mm | |
|---|---|---|
| Seat height from floor | 460 mm | |
| Seat depth per module | 700 mm | |
| Per-seat module width | 820 mm | |
| Backrest height (headrest down) | 310 mm | |
| Backrest height (headrest up) | 520 mm | |
| Armrest height from seat | 180 mm | |
| Corner chaise module dimensions | 900 x 900 mm | |
| Support leg height | 100 mm | |
| Armrest width | 250 mm | |
| Cushion thickness (seat) | 180 mm | |
| Cushion thickness (back) | 120 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Overall net weight | 135 kg | |
|---|---|---|
| Total static load capacity | 600 kg | |
| Cushion foam density | 45D high-resilience foam | |
| Foam rebound rate | 60% | |
| Leather abrasion resistance | 50000 Martindale cycles | |
| Seam stitch pitch | 3 stitches per cm | |
| Frame joint static load rating | 150 kg per seat | |
| Modular connector shear strength | 200 kg per joint | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | 1.4mm thick full-aniline top-grain taupe leather | |
|---|---|---|
| Internal support frame | Kiln-dried solid hardwood with 12mm plywood reinforcement | |
| Seat suspension | 3.8mm gauge sinuous steel springs with 50mm elastic webbing | |
| Seat cushion fill | 45D high-resilience polyurethane foam with 20mm down fiber wrap | |
| Back cushion fill | 30D soft polyurethane foam with polyester fiber batting | |
| Support legs | 20mm wide black powder-coated flat steel feet | |
| Modular connection hardware | Zinc-plated steel U-clip connectors | |
| Headrest mechanism | Steel ratchet tilt hardware with powder-coated finish | |
| Armrest construction | Padded wood frame wrapped in matching leather upholstery | |
| Seat tufting detail | Button-tufted leather seat surface with matching taupe stitching | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Headrest adjustment | 3-position ratchet tilt from 0 to 30 degrees | |
|---|---|---|
| Modular reconfiguration | Tool-free clip connection to rearrange seat units | |
| Floating low-profile design | 100mm leg elevation creates open visual space below seating | |
| Corner chaise lounging | Open middle corner unit provides extended lounging surface for 1 user | |
| Cushion support distribution | Sinuous spring base evenly distributes weight across seat surface | |
| Fixed padded armrest | Left-side wide arm provides stable arm support and visual balance | |
| Headrest independent operation | Each headrest adjusts separately for individual user preference | |
| Floor protection | Hidden plastic glides on leg bases prevent hard floor scratching | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Large residential living rooms | Fits open-plan spaces 20sqm or larger for multi-user family seating | |
|---|---|---|
| Modern minimalist interiors | Low-profile floating design matches contemporary neutral-toned decor schemes | |
| Home theater or media rooms | Adjustable headrests provide neck support for extended viewing sessions | |
| Open-concept loft spaces | U-shaped layout creates defined seating zones without blocking sight lines | |
| Executive lounge areas | Premium leather finish suits professional casual reception spaces | |
| Multi-user household use | 4-seat capacity accommodates family gatherings and small group entertaining |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture strength, durability and safety for domestic seating | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture flammability resistance to cigarette ignition |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal hardwood frame | |
|---|---|---|
| GB 20400-2006 | Limit of harmful substances in leather and fur, applicable to upholstery material | |
| GB/T 1952.1-2012 | Test methods for mechanical properties of sofas, applicable to load and durability testing |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal hardwood frame; 2. GB 20400-2006: Limit of harmful substances in leather and fur, applicable to upholstery material; 3. GB/T 1952.1-2012: Test methods for mechanical properties of sofas, applicable to load and durability testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
