PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4060 × 2010 × 700 mm
Overall L-shaped dimensions	4060 x 2010 x 700 mm
Chaise segment depth	1460 mm
Standard seat depth	660 mm
Seat height from floor	420 mm
Backrest height above seat	280 mm
Armrest height from floor	700 mm
Single seating module width	1100 mm
Corner module dimensions	1100 x 1100 mm
Seat cushion thickness	220 mm
Floor clearance under base	10 mm
Throw pillow dimensions	550 x 550 mm
Armrest width	250 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product weight	140 kg
Total static load capacity	300 kg
Seating capacity	5 people
Upholstery abrasion resistance	40000 Martindale cycles
Foam density (seat cushion)	45 kg/m³
Foam density (backrest)	30 kg/m³
Seam stitch pitch	8 stitches per 30mm
Warranty period	2 years
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Inner load-bearing frame	Solid kiln-dried pine wood, 30mm frame section thickness
Seat support system	8-gauge sinuous steel springs with 50mm elastic webbing
Cushion core fill	High-density polyurethane foam wrapped in 20mm Dacron batting
Upholstery fabric	380g/m² woven linen-blend matte fabric in light beige
Modular connection hardware	Powder-coated steel bottom latch connectors
Floor glides	Non-marking black plastic floor protectors, 10mm height
Throw pillow fill	100% recycled polyester fiber fill, matching fabric covers
Quilted upholstery stitching	Reinforced polyester thread for grid channel definition
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color Count	Recommended 8fabric/leather color options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular reconfiguration	Bottom metal latch connectors allow layout rearrangement via tool-free connection
Fixed deep lounge seating	Pre-upholstered deep seat cushions designed for relaxed lounge posture
Integrated padded armrests	Wide padded armrests at both outer ends function as side bolsters for lateral support
Floor protection	Hidden low-profile glides prevent floor scuffing without visible raised legs
Detachable back cushions	Loose back throw pillows are removable for cleaning or position adjustment
Reversible chaise configuration	Modular connectors allow chaise to be installed on left or right side per user layout preference
Stain-resistant fabric surface	Woven fabric treated for light water and stain resistance for residential daily use
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Large open-plan living room	Suits residential spaces 35sqm and above for spacious multi-person lounge seating, layout matches open floor plans
Modern minimalist interior design	Low-profile grid-quilted neutral beige finish complements contemporary, Scandinavian or wabi-sabi decor schemes
Home lounge and media room use	Deep lounge depth supports relaxed seating for movie viewing and casual social gatherings, accommodates 5 users
Neutral commercial lounge areas	Suitable for boutique hotel lobbies, high-end office breakout spaces with casual soft seating requirements
Recommended complementary furniture	Pairs with low-profile square coffee tables 400 mm height to match sofa seat elevation for ergonomic use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture strength and stability standard	EN 12520:2015
Upholstery flammability standard	EN 1021:2014

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Upholstered furniture safety standard	GB 17927.1
Wood frame material standard	GB/T 3324
Furniture harmful emission limit	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. Upholstered furniture safety standard: GB 17927.1;
2. Wood frame material standard: GB/T 3324;
3. Furniture harmful emission limit: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SEC-L-GRID-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SEC-L-GRID-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SEC-L-GRID-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

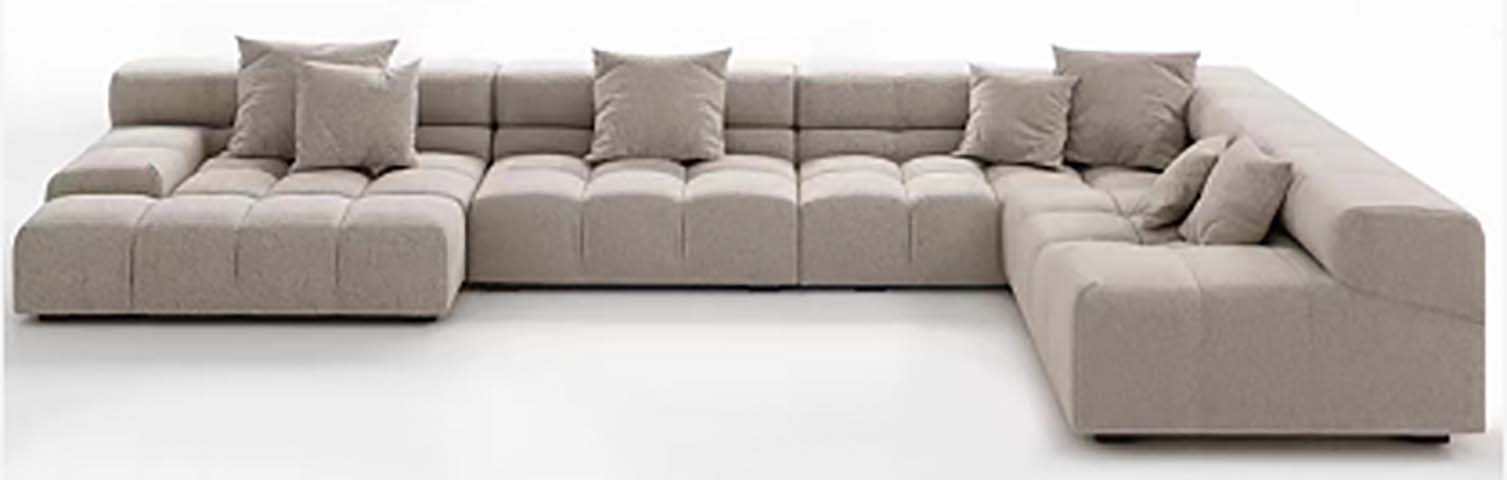

The Light Beige Grid-Quilted Low-Profile Modular L-Shaped Sectional Sofa (model SEC-L-GRID-001, unbranded) presents a streamlined, contemporary silhouette defined by its grid-quilted light beige upholstery and low, legless profile that sits close to the floor. Its L-shaped layout integrates a standard seating zone, a corner module, and a chaise segment, with wide padded armrests positioned at both outer ends to provide structured lateral support; the chaise can be mounted on either the left or right side to align with specific room layouts, and individual modules connect via hidden hardware for a seamless, uninterrupted visual line across the entire seating surface. The sofa is constructed with a kiln-dried solid pine inner load-bearing frame, paired with an 8-gauge sinuous steel spring and elastic webbing seat support system for consistent structure. Seat cushions hold high-density polyurethane foam wrapped in Dacron batting, while back cushions are filled with recycled polyester fiber and clad in matching fabric covers. The 380g/m² matte woven linen-blend upholstery is stitched with reinforced polyester thread to form the signature grid pattern, and modular segments join via powder-coated steel bottom latch connectors that require no tools for assembly or reconfiguration. Non-marking hidden plastic glides fitted to the base protect flooring without disrupting the low-profile aesthetic. Functionally, the sofa seats up to five people, with deep seat dimensions tailored for relaxed lounge postures. Back cushions are fully removable for cleaning or positional adjustment, and the fabric surface carries light water and stain resistance suitable for regular daily use. The modular design allows users to rearrange the layout as space needs change, with straightforward assembly that follows a clear process. This sectional is suited for residential open-plan living rooms 35sqm and larger, modern minimalist, Scandinavian or wabi-sabi style interiors, home media and lounge spaces, as well as light commercial settings including boutique hotel lobbies and high-end office breakout areas. It pairs ergonomically with 400mm-height low-profile square coffee tables for coordinated use. For procurement, note that the product ships in two cartons per set, requires on-site assembly, and features abrasion-resistant upholstery tested to 40000 Martindale cycles; the low-profile form is not designed for spaces requiring elevated seating clearances, and stain resistance is formulated for routine residential rather than heavy high-traffic commercial use.
