PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 1020 × 700 mm
Seat height	400 mm
Seat depth per module	660 mm
Single seat module width	900 mm
Middle armless chaise module width	1000 mm
Integrated backrest/armrest height	300 mm above seat surface
Hidden support foot height	30 mm
Throw pillow size (included)	500 x 500 mm
Arm width at rounded end caps	200 mm
Base clearance under sofa	20 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total sofa net weight	180 kg
Per-seat static load capacity	150 kg
Seat foam density (support base layer)	45D
Seat foam density (top comfort layer)	35D
Foam rebound rate	60%
Fabric abrasion resistance (Martindale)	30000 cycles
Frame moisture content	12%
Included throw pillow count	3
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upholstery fabric	Olive green textured plush boucle-style polyester fabric
Contrast trim	White woven piping along all curved end seams
Internal frame	Kiln-dried solid pine with multi-layer plywood corner reinforcement
Seat suspension	Heavy-duty sinuous steel springs with crisscross high-tension elastic webbing
Seat cushion filling	Dual-layer HR foam wrapped in polyester fiber batting
Backrest/armrest filling	30D soft foam wrapped in synthetic down-alternative fiber
Support feet	30mm tall hidden black plastic/wood glide feet
Seam construction	Reinforced stitched seams with 8mm stitch pitch
Included throw pillows	Covers in matching olive and light gray textured fabric, filled with polyfiber fill
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular configuration	Three connected fixed modules: left loveseat end, middle armless chaise, right single-seat end
Seating function	Stationary non-reclining deep seating for three adults with additional central chaise lounge space
Base support	Hidden low glide feet to protect flooring while maintaining near-floor floating visual effect
Pillow placement	Three matching throw pillows included for lumbar support and decorative styling
Edge design	Fully rounded soft edges on all frame components with no sharp corners
Surface cleaning	Spot-cleanable fabric surface for routine maintenance of olive textured upholstery
Modular reconfiguration	Sections can be disconnected and rearranged via standard sectional connector hardware
Floor protection	Smooth non-marring glide feet prevent scuffing on hard flooring surfaces
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room	Suitable for open-concept modern and wabi-sabi style living spaces
Apartment and loft use	Fits medium to large open-plan residential units as primary seating
Hospitality lounge use	Applicable for boutique hotel lobbies, creative studio waiting areas
Low-height interior schemes	Ideal for spaces with low furniture profiles and unobstructed sight lines
Family residential use	Soft rounded edges and durable plush fabric suit daily household use
Neutral palette interiors	Olive green finish pairs with neutral wall, wood and stone finish schemes

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Furniture - Strength, durability and safety for domestic seating, applicable for performance verification
EN 1021-1:2014	Upholstered furniture ignitability test (cigarette source), applicable for fabric fire safety

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to wood frame inspection
GB 18401-2010	National general safety technical code for textile products, applicable to upholstery fabric
GB/T 1952.1-2012	Test standard for upholstered sofas, applicable to strength and durability testing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood frame inspection;
2. GB 18401-2010: National general safety technical code for textile products, applicable to upholstery fabric;
3. GB/T 1952.1-2012: Test standard for upholstered sofas, applicable to strength and durability testing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SEC-OLV-3MOD-PIPE-3200

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SEC-OLV-3MOD-PIPE-3200

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SEC-OLV-3MOD-PIPE-3200Open Export Tool

Quick Actions

Post an RFQ

Product Description

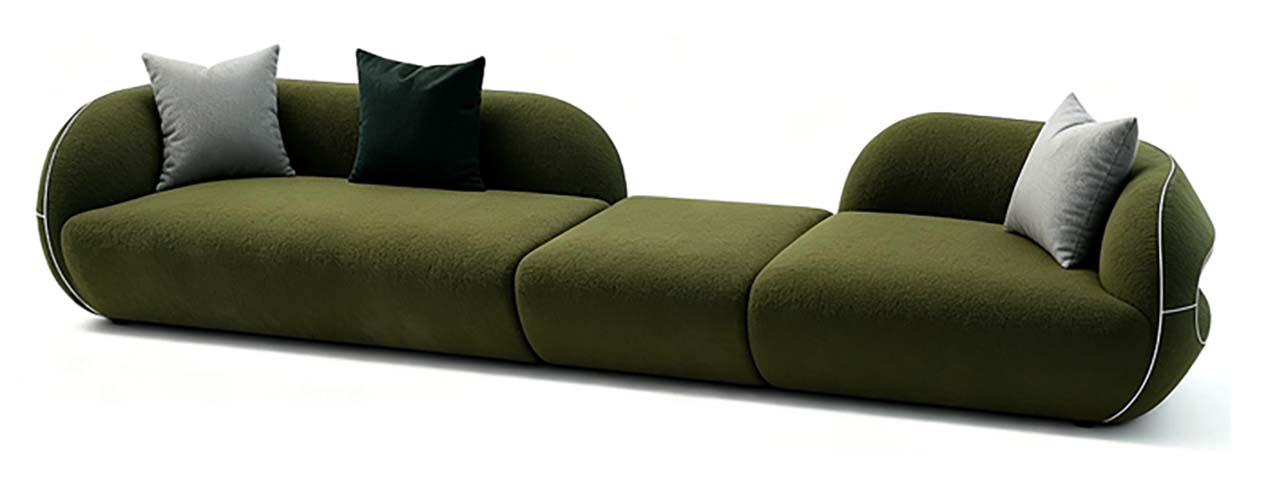

The Olive Green Textured Fabric 3-Module Curved Sectional Sofa is a stationary modular seating solution defined by its flowing curved silhouette, low-profile organic form, and crisp white contrast piping that traces every curved end seam to highlight its soft, rounded edges—with no sharp corners present on any frame component. Hidden low glide feet sit flush beneath the frame, creating a near-floor floating visual effect, while three included throw pillows, finished in matching olive green and light gray textured fabric, add layered lumbar support and decorative balance to the layout. The three connected modules comprise a left loveseat end, middle armless chaise, and right single-seat end, arranged to seat three adults with an extended central chaise lounge space; sections disconnect via standard sectional connector hardware to support flexible rearrangement. Its kiln-dried solid pine internal frame is reinforced with multi-layer plywood at corners, and supported by heavy-duty sinuous steel springs paired with crisscross high-tension elastic webbing for seat suspension. Seat cushions use dual-layer high-resilience foam—a firmer base layer topped with a softer comfort layer—wrapped in polyester fiber batting, while backrests and armrests are filled with soft foam wrapped in synthetic down-alternative fiber. The upholstery is a textured plush boucle-style polyester in muted olive green, finished with reinforced stitched seams, and the surface supports spot cleaning for routine maintenance. The sofa fits a range of spaces: it works as primary seating for open-concept modern or wabi-sabi style residential living rooms, medium to large apartments and lofts, and low-height interior schemes where unobstructed sight lines are a priority, as its muted olive finish pairs seamlessly with neutral wall, wood, and stone finishes. It is also suited to hospitality settings including boutique hotel lobbies and creative studio waiting areas, with soft rounded edges and durable upholstery appropriate for regular daily use. For procurement, note the unit ships in two cartons, with an assembly time per set, and confirm on-site access can accommodate packaged dimensions before delivery, as the fixed curved profile requires sufficient clearance for placement in intended spaces.

Olive Green Textured Fabric 3-Module Curved Sectional Sofa with White Contrast Piping Specifications
