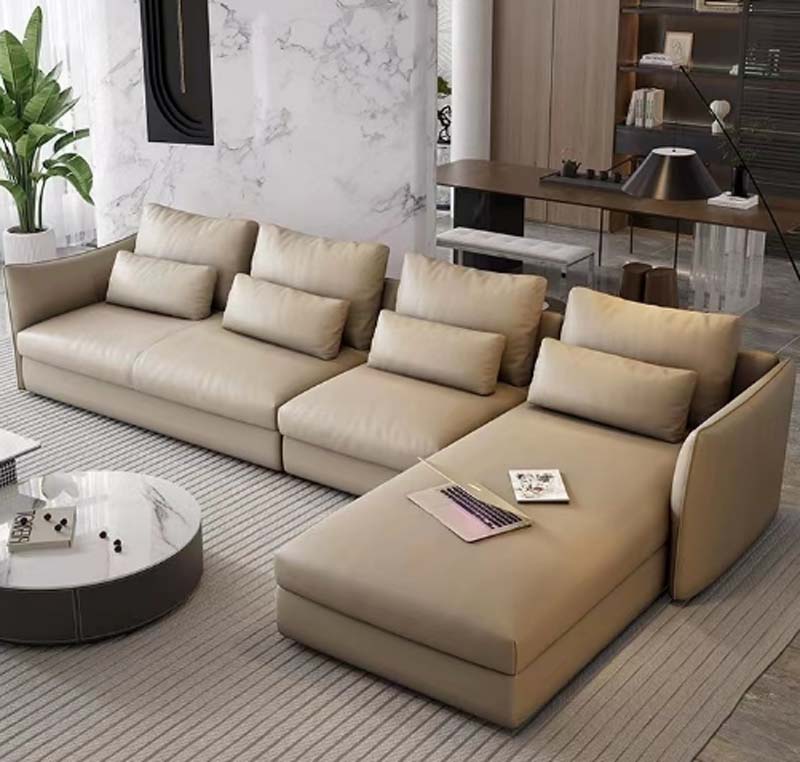

Product supplierBeige Right-Facing L-Shaped Low-Profile Sectional Sofa, 100% polyester matte tech fabric
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3340 × 1900 × 880 mm | |
|---|---|---|
| Seat height from floor | 410 mm | |
| Main seating section depth | 660 mm | |
| Chaise lounge length | 1900 mm | |
| Back cushion height above seat | 290 mm | |
| Armrest height from floor | 640 mm | |
| Single seat cushion width (main section) | 780 mm | |
| Plinth base height | 200 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Per-seat static weight capacity | 136 kg | |
|---|---|---|
| Total static weight capacity | 544 kg | |
| Seat foam density | 32D | |
| Foam rebound rate | 60% | |
| Cushion compression recovery time | 72 hours | |
| Overall product net weight | 99 kg | |
| Fabric abrasion resistance | 30000 Martindale cycles | |
| Standard product warranty | 2 years | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery surface | 100% polyester matte tech fabric | |
|---|---|---|
| Seat cushion fill | 32D high-density polyurethane foam wrapped in PP cotton | |
| Back cushion fill | Loose fill high-elastic PP cotton blend | |
| Internal frame | Kiln-dried solid hardwood + 18mm plywood structural panel | |
| Seat support layer | 3.8mm sinuous steel springs + 50mm elastic webbing | |
| Base structure | Upholstered hardwood plinth with non-slip fabric bottom | |
| Included throw pillows | 2 large back cushions, 2 matching lumbar pillows | |
| Seam construction | 8mm stitch pitch, reinforced edge stitching | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular connection | Hidden metal buckle connectors between seat modules | |
|---|---|---|
| Cushion design | Removable loose seat and back cushions | |
| Seating configuration | 4-person capacity: 3 standard seats + 1 extended right chaise | |
| Armrest design | Low sloped integrated upholstered armrests on both ends | |
| Base design | Floor-standing plinth base with integrated anti-slip pads | |
| Packaging method | Vacuum-compressed module packaging | |
| Backrest support | Fixed low-angle sloped backrest | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room | Suitable for medium to large open-plan living rooms facing a central coffee table | |
|---|---|---|
| Open-concept apartment | Low-profile silhouette avoids visual obstruction in studio apartment layouts | |
| Lounge reception area | Appropriate for casual office breakout zones or residential guest reception | |
| Modern minimalist interiors | Matches contemporary, wabi-sabi, and Nordic design schemes |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Domestic furniture seating strength | EN 12520:2015 | |
|---|---|---|
| Upholstery flame retardancy | EN 1021:2014 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Upholstered furniture safety | GB 17927 | |
|---|---|---|
| Formaldehyde emission | GB 18584 |
Standardized tender description text
This product must meet the following technical requirements: 1. Upholstered furniture safety: GB 17927; 2. Formaldehyde emission: GB 18584; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
