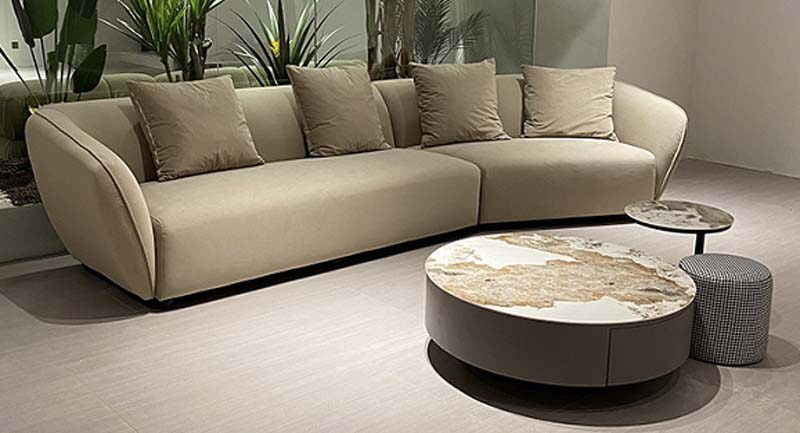

Product supplierBeige Woven Fabric Curved 4-Seater Sectional Sofa with Recessed Plinth Base, Kiln-dried solid birch + 18mm plywood substructure
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3100 × 1340 × 750 mm | |
|---|---|---|
| seat height | 420 mm | |
| seat depth | 680 mm | |
| backrest height above seat | 330 mm | |
| armrest height above seat | 200 mm | |
| throw pillow dimensions | 500 x 500 mm | |
| plinth recess height | 50 mm | |
| single module width | 1550 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| total static load capacity | 480 kg | |
|---|---|---|
| net weight (reference) | 120 kg | |
| upholstery abrasion resistance | 30000 Martindale cycles | |
| seat foam density | 50 kg/m³ | |
| back foam density | 30 kg/m³ | |
| fabric lightfastness | 4 grade | |
| seam stitch pitch | 8 stitches per 30 mm | |
| warranty period | 3 years | |
| seating capacity | 4 seats | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| internal frame | Kiln-dried solid birch + 18mm plywood substructure | |
|---|---|---|
| seat support system | 80mm high-resilience foam + 50g polyester fiber wrap | |
| backrest padding | 30mm polyurethane foam + loose fiber fill | |
| upholstery fabric | 380gsm woven matte beige polyester-linen blend | |
| throw pillow fill | Hollow conjugate polyester fiber | |
| base structure | Dark powder-coated MDF plinth with recessed support | |
| joint hardware | Zinc-plated steel connector brackets for 2-module assembly | |
| fabric finish | Stain-resistant matte treatment | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| modular assembly | 2 curved units joined with steel bracket locks | |
|---|---|---|
| seating configuration | Fixed static lounge seating with no recline or adjust mechanisms | |
| cushion installation | Fixed attached seat and back cushions with tight tailored upholstery | |
| throw pillow placement | 4 removable matching square throw pillows aligned along backrest | |
| base design | Recessed plinth creates floating visual effect with full floor contact | |
| color option availability | Beige, dark grey fabric options offered for this design | |
| custom sizing support | Curvature and length adjustments available for residential or lounge projects | |
| floor protection | Felt glides fitted under plinth base | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| residential living room | Open-plan lounge seating for family and guest use, wraparound conversational layout | |
|---|---|---|
| modern office lounge | Reception or breakout area seating for informal meetings and visitor waiting | |
| high-end hotel lobby | Luxury common area seating paired with round stone coffee tables for curated aesthetic | |
| residential open loft | Curved form softens linear room geometry and defines dedicated seating zones | |
| luxury showroom display | Statement piece for furniture and interior design showroom vignettes | |
| private lounge suite | Small lounge area in premium suites, paired with ottomans and side tables | |
| recommended pairing | Match with round stone-top coffee tables and upholstered houndstooth ottomans for cohesive look |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Furniture - Strength, durability and safety for domestic seating, structural compliance reference | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignitability (cigarette test), fire safety baseline for residential use |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to frame and structural components | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, for formaldehyde emission compliance | |
| GB/T 19817-2005 | Upholstered furniture fabric performance standards, applicable for abrasion and colorfastness |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame and structural components; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, for formaldehyde emission compliance; 3. GB/T 19817-2005: Upholstered furniture fabric performance standards, applicable for abrasion and colorfastness; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
