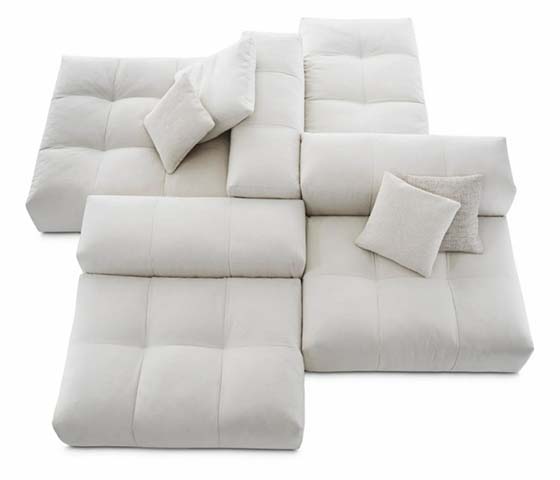

Name: Off-White Tufted Low-Profile Modular Sectional Pit Sofa
Brand: AIMENGSHI
SKU: GTJ0XA

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3290 × 2750 × 650 mm
Overall 6-seat pit configuration dimensions	3290 x 2750 x 650 mm
Single armless seat module dimensions	1210 x 1010 x 650 mm
Chaise lounging module dimensions	1320 x 1320 x 650 mm
Seat height from floor to cushion top	400 mm
Seat cushion depth per module	970 mm
Seat cushion thickness	250 mm
Repositionable cylindrical bolster backrest dimensions	1210 x 250 x 400 mm
Square decorative throw pillow dimensions	450 x 450 mm
Rounded corner radius on all modules	80 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	285 kg
Per-seat static load capacity	150 kg
Cushion foam density	45 kg/m³
Cushion foam rebound rate	60%
Upholstery fabric abrasion resistance	30000 Martindale cycles
Seam stitch pitch	30 mm
Available upholstery color options	4
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference	130 kg/seat

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	300gsm linen-cotton blend woven fabric
Seat cushion core	Multi-density high-resilience polyurethane foam with pocket spring inserts
Internal frame structure	25mm thick kiln-dried pine wood with reinforced polypropylene joint brackets
Seat support system	50mm wide elastic webbing straps spaced 80mm apart
Bolster backrest fill	28kg/m³ soft polyurethane foam wrapped in polyester batting
Throw pillow fill	100% recycled polyester fiber fill
Modular connecting hardware	Zinc-plated steel locking clips and alignment brackets
Cushion underside	Non-slip polyester mesh fabric to prevent module shifting
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color Count	Recommended 8fabric/leather color options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular reconfiguration	Connect or separate units with steel locking clips to form L-shape, U-shape, linear or open pit layouts
Bolster backrest adjustability	Reposition cylindrical bolsters along any module edge to create upright back support or fully open lounging surfaces
Cushion tufting structure	Grid-stitched tufting secures fill to prevent shifting and maintains structured plush surface over time
Cover removability	Zippered cushion and bolster covers allow removal for spot cleaning or dry cleaning
Module connection stability	Interlocking steel clips prevent lateral shifting between connected units during normal use
Floor protection	Smooth non-abrasive fabric base prevents scratching hard flooring surfaces
Layout scalability	Add or remove matching armless, chaise or corner modules to expand or reduce seating capacity
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room lounge	Suitable for open-plan living areas as low-profile casual pit seating for family relaxation
Home media or theater room	Low-height open layout provides unobstructed viewing for home cinema setups
Loft or studio apartment flexible seating	Reconfigurable modules adapt to small or multi-use living spaces without fixed layout constraints
Casual lounge or co-working break area	Soft modular seating provides relaxed collaborative space for informal meetings
Recommended floor placement	Direct placement on low-pile carpet, area rugs or smooth hard flooring without additional legs

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Domestic furniture strength, durability and safety requirements for seating
EN 1021-1:2014	Upholstered furniture flammability resistance to smoldering cigarette ignition

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to internal wooden frame structural integrity
GB 18401-2010	National textile product safety specification, applicable to upholstery fabric and inner materials
GB/T 1952.1-2012	Test methods for sofas, applicable to seating load, durability and structural stability verification

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal wooden frame structural integrity;
2. GB 18401-2010: National textile product safety specification, applicable to upholstery fabric and inner materials;
3. GB/T 1952.1-2012: Test methods for sofas, applicable to seating load, durability and structural stability verification;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · MS-TUW-6PIT-840

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · MS-TUW-6PIT-840

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · MS-TUW-6PIT-840Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Off-White Tufted Low-Profile Modular Sectional Pit Sofa from AIMENGSHI, model MS-TUW-6PIT-840, is a versatile fabric modular sectional designed for flexible, comfortable seating across residential and light commercial spaces. Visually, the sofa features a clean, low-profile silhouette defined by uniform grid-tufted upholstery that creates a structured yet plush surface. The 6-seat pit configuration forms an open, inviting lounge layout, paired with smooth, cylindrical repositionable bolster backrests and complementary square throw pillows that add soft, approachable visual detail without disrupting its streamlined form. All modules sit flush to the floor without visible legs, contributing to its laid-back, grounded aesthetic. Construction prioritizes durability and long-term comfort. The internal frame uses kiln-dried pine reinforced with polypropylene joint brackets, supported by evenly spaced elastic webbing straps under the seats. Seat cushions are built with multi-density high-resilience polyurethane foam with pocket spring inserts, wrapped in 300gsm linen-cotton blend woven fabric. Cylindrical bolsters are filled with soft polyurethane foam wrapped in polyester batting, while throw pillows use 100% recycled polyester fiber fill. Zinc-plated steel locking clips and alignment brackets connect modules securely, and non-slip polyester mesh on cushion undersides prevents shifting. The upholstery delivers reliable abrasion resistance for regular use, and grid tufting holds fill in place to maintain a consistent surface over time. A smooth non-abrasive fabric base protects hard flooring from scratches. Functionality centers on adaptability. Users can connect or separate modules to form L-shape, U-shape, linear, or open pit layouts, and adjust capacity by adding or removing matching armless, chaise, or corner modules to suit evolving needs. Cylindrical bolsters can be repositioned along any module edge to create upright back support or clear open lounging surfaces. Zippered cushion and bolster covers can be removed for spot cleaning or dry cleaning, simplifying routine maintenance. This sofa fits a range of spaces, including open-plan residential living rooms for casual family relaxation, home media rooms where its low height supports unobstructed viewing, loft or studio apartments where reconfigurable design adapts to multi-use layouts, and casual co-working break areas for relaxed informal gatherings. It is designed for direct placement on low-pile carpet, area rugs, or smooth hard flooring. For procurement, note that the set ships in 2 cartons, with a straightforward assembly process. Four upholstery color options are available to match existing decor schemes, and the modular design supports incremental expansion as seating needs grow.
