| Submitted | Field | Original | Note / Status | |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 3600 x 1820 x 750 mm | |
|---|---|---|
| Seat height (top of cushion to floor) | 500 mm | |
| Seat depth (front edge of seat to front of back cushion) | 910 mm | |
| Arm width (outer edge to seat cushion) | 250 mm | |
| Arm height (top of arm to floor) | 660 mm | |
| Seat cushion thickness | 250 mm | |
| Back cushion thickness | 200 mm | |
| Base plinth height (bottom of sofa frame to floor) | 50 mm | |
| Corner module width (outer arm to inner corner seam) | 1000 mm | |
| Chaise segment depth (back cushion front to outer end) | 1820 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Total static load capacity | 545 kg | |
|---|---|---|
| Seat foam density | 35 kg/m³ | |
| Foam rebound rate | 60% | |
| Upholstery abrasion resistance | 30000 Martindale cycles | |
| Upholstery lightfastness rating | 5 (8scale) | |
| Seam stitching pitch | 30 mm per 10 stitches | |
| Total net weight | 150 kg | |
| Seat support spring fatigue life | 25000 cycles | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
Core acceptance fields · Panels / hardware / frame / upholstery
| Internal load-bearing frame | Kiln-dried solid hardwood / engineered wood, moisture content 12% | |
|---|---|---|
| Seat support system | 3.8mm diameter sinuous zigzag springs spaced 100mm apart, with polypropylene webbing reinforcement | |
| Seat cushion core | Multi-density high-resilience polyurethane foam with 20mm soft fiber wrap | |
| Back cushion fill | Blown polyester fiber / down-alternative fill with removable inner liners | |
| Upholstery surface | 1.2mm thick top-grain look taupe leather / high-wear faux leather, matte finish | |
| Arm structure | Padded hardwood frame wrapped with 50mm foam layer, finished with matching upholstery | |
| Base plinth | Hardwood frame wrapped in matching upholstery, flush floor-level design with hidden small floor glides | |
| Modular connection hardware | Powder-coated steel interlocking clips between seating modules, corrosion-resistant finish | |
| Stitching details | Matching taupe bonded nylon thread, reinforced stress points at arm/seat seams | |
| Back cushion liner | Breathable non-woven polypropylene fabric liner with zipper access for fill adjustment and removal | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide |
Adjustment / rotation / tilt / mobility / storage features
| Modular reconfiguration | Interlocking steel clip connections allow left/right chaise orientation adjustment and additional module expansion | |
|---|---|---|
| Cushion removability | All seat and back cushions are loose and removable for cleaning, upholstery maintenance, and re-fluffing | |
| Lounge seating support | Extra-deep seat design supports semi-reclined relaxed seating posture with legs up, suitable for long-duration casual use | |
| Corner integrated side table compatibility | Pre-sized gap at inner corner accommodates matching narrow side table for beverages, decor, or remote storage | |
| Floor protection | Hidden non-marking plastic glides under base plinth prevent scuffing on hard flooring and carpet, no rolling casters installed | |
| Cleaning compatibility | Smooth non-porous upholstery surface supports gentle wiping with leather-safe cleaning products for routine stain removal | |
| Assembly requirement | Knock-down assembly of modular segments and attachment of base/arm components required, no permanent fixed joinery needed for home installation | |
| Back cushion adjustment | Loose back cushions support 2 positional placement angles (15 degree upright support, 30 degree reclined lounge) for customized posture support | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
| Number of shipping cartons | 3 cartons | |
|---|---|---|
| Largest carton dimensions | 2000 x 1000 x 800 mm | |
| Smallest carton dimensions | 1200 x 700 x 300 mm | |
| Total gross shipping weight | 165 kg | |
| Total shipping volume (CBM) | 2.28 CBM | |
| Packaging protection layers | EPE foam wrap, bubble wrap, hard corner protectors, non-woven fabric cover, 5-layer corrugated cardboard cartons | |
| 40ft HQ container loading quantity | 32 units | |
| Included assembly items | Hex key assembly tool, interlocking hardware, installation manual, matching cushion sets | |
| on-site assembly time | 50 minutes | |
| Reference Package Count | 1 set / 2 cartons |
Recommended spaces / users / usage modes

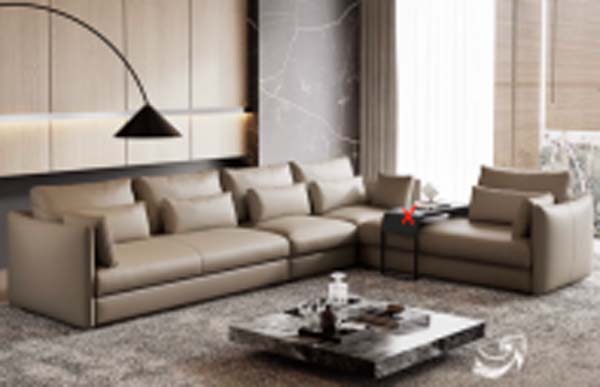

| Residential living room primary seating | Suitable as central lounge seating for 5adults in open-plan living spaces, positioned facing a coffee table or media console as shown in the reference scene | |
|---|---|---|
| Modern minimalist / contemporary interior schemes | Complements neutral tone, stone, wood panel, and soft furnishing palettes with its low-profile silhouette and matte taupe finish | |
| High-end apartment / penthouse lounge areas | Appropriate for spaces requiring unobtrusive, spacious seating without tall backs that block sight lines across open rooms | |
| Hospitality lounge / waiting area use (contract grade) | Suitable for upscale hotel lobbies, VIP lounge areas, or executive reception spaces when specified with contract-grade abrasion and durability upgrades | |
| Open-plan home office lounge zones | Provides casual meeting or break seating adjacent to work areas, supporting relaxed posture during informal discussions | |
| Recommended complementary pairing | Pairs with low square marble/stone coffee tables, arc floor lamps, and soft low-pile area rugs to match the curated aesthetic shown in the reference scene | |
| Home cinema secondary seating | Suitable for front-row casual home cinema seating adjacent to media walls, supporting extended reclined viewing posture for movie and media consumption |
EU Market Access Requirements* EN Standards
| EN 12520:2015 applicability | Furniture - strength, durability and safety requirements for domestic seating, applies to structural load and stability testing of the sofa | |
|---|---|---|
| EN 1021-1:2014 applicability | Upholstered furniture - assessment of ignitability of upholstered furniture - part 1: ignition source smouldering cigarette, applies to fire safety of upholstery and fill materials |
Standards applicable to China-market projects
| GB/T 3324-2017 applicability | General technical requirements for wooden furniture, applies to structural strength, dimensional stability, and safety of the internal wood frame | |
|---|---|---|
| GB/T 1952.1-2022 applicability | Strength and durability test standard for upholstered sofas, applies to seat, back, and arm static and fatigue load testing | |
| GB 18584-2001 applicability | Indoor decorating and refurbishing materials - limit of harmful substances in wooden furniture, applies to formaldehyde and VOC emission limits for frame materials | |
| GB 20400-2006 applicability | Leather furniture specification, applies to material labeling, physical performance, and harmful substance limits for genuine leather upholstery variants |
This product must meet the following technical requirements: 1. GB/T 3324-2017 applicability: General technical requirements for wooden furniture, applies to structural strength, dimensional stability, and safety of the internal wood frame; 2. GB/T 1952.1-2022 applicability: Strength and durability test standard for upholstered sofas, applies to seat, back, and arm static and fatigue load testing; 3. GB 18584-2001 applicability: Indoor decorating and refurbishing materials - limit of harmful substances in wooden furniture, applies to formaldehyde and VOC emission limits for frame materials; 4. GB 20400-2006 applicability: Leather furniture specification, applies to material labeling, physical performance, and harmful substance limits for genuine leather upholstery variants; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
