PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2400 × 1000 × 870 mm
Seat height	440 mm
Seat depth	650 mm
Seat width	1900 mm
Armrest height	620 mm
Armrest width	220 mm
Backrest height	480 mm
Floor clearance under base	50 mm
Seat cushion thickness	220 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	68 kg
Total static load capacity	450 kg
Seat foam density	50D
Fabric abrasion resistance	40000 Martindale rubs
Seat suspension load per seat	150 kg
Frame joint static load durability	100000 cycles
Foam rebound rate	60%
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference	130 kg/seat

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upholstery fabric	410 gsm matte polyester performance fabric
Inner frame	Kiln-dried solid pine wood frame
Seat fill	50D high-density polyurethane foam
Backrest fill	40D high-density polyurethane foam
Seat support	Sinuous steel spring suspension with webbing layer
Support legs	Powder-coated steel hidden low-profile legs
Stitching	High-tensile polyester thread with 8 mm seam pitch
Surface finish	Stain-resistant easy-clean fabric treatment
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color Count	Recommended 8fabric/leather color options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating configuration	Fixed three-position stationary seating
Armrest function	Integrated wide padded armrests for bilateral arm support
Upholstery structure	Fixed segmented grid-tufted upholstery across seat, back and arms
Assembly requirement	Knock-down hidden leg assembly required
Weight distribution	Even floor load distribution across full base perimeter
Cushion design	Fixed attached cushions aligned to grid tuft pattern
Back support	Segmented channel-tufted back support for three users
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room main seating	Suitable for apartment and family living rooms as primary three-person seating
Small office lounge area	Applicable for informal office reception and break area seating
Apartment open-plan living space	Fits compact 3bedroom apartment layouts without visual bulk
Studio and rental property furnishing	Durable easy-clean fabric supports high-turnover rental furnishing use
Complementary lounge seating for bedrooms	Scaled to work as oversized lounge seating in large master bedrooms

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Furniture strength, durability and safety requirements for domestic seating
EN 1021-1:2014	Upholstered furniture ignitability resistance to smouldering cigarette

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2021	Lounge seating standard for strength and durability of public/residential lounge products

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to inner frame quality
GB 18584-2001	Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture
GB/T 19001-2016	Quality management system guideline for furniture manufacturing consistency

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to inner frame quality;
2. GB 18584-2001: Indoor decorating and refurbishing materials limit of harmful substances for wooden furniture;
3. GB/T 19001-2016: Quality management system guideline for furniture manufacturing consistency;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SOF-3S-GRID-BEIGE-2400

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SOF-3S-GRID-BEIGE-2400

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SOF-3S-GRID-BEIGE-2400Open Export Tool

Quick Actions

Post an RFQ

Product Description

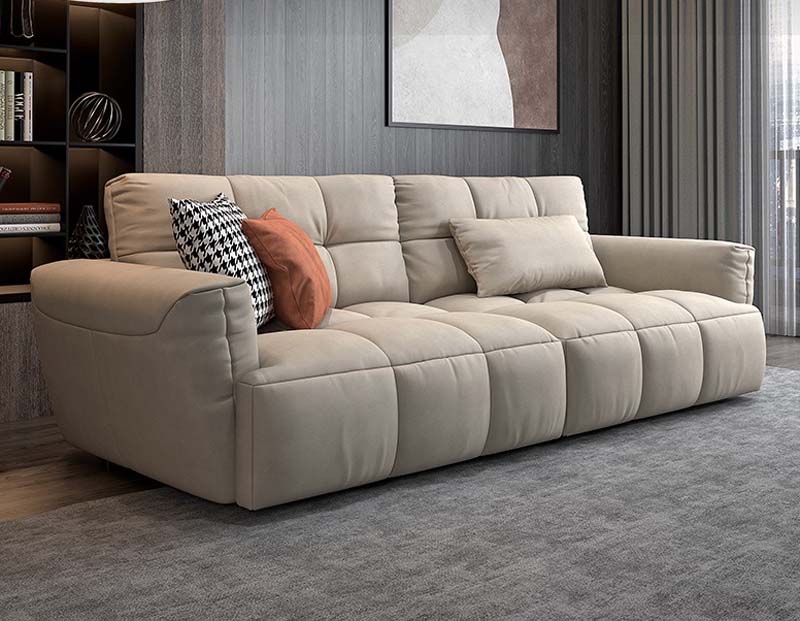

The Beige Grid-Tufted Low-Profile Three-Seater Fabric Sofa features a streamlined rectangular stationary form defined by subtle grid tufting across its seat, backrest, and integrated wide curved armrests. Its low-profile design is anchored by hidden support legs that create a light, unobtrusive visual presence, with consistent tufting aligning fixed attached cushions for a cohesive, tailored modern cream aesthetic that avoids visual bulk even in tighter floor plans. Built for long-term regular use, the sofa uses a kiln-dried solid pine wood inner frame with primary section dimensions suited to stable structural support, joined to meet sustained static load durability standards. Upholstery consists of 410 gsm matte polyester performance fabric treated for stain resistance and easy cleaning, stitched with high-tensile polyester thread at a consistent 8 mm seam pitch, and tested to withstand 40000 Martindale rubs for abrasion resistance. Seat cushions are filled with 50D high-density polyurethane foam paired with a sinuous steel spring and webbing suspension system, while backrests use 40D high-density foam with segmented channel tufting to deliver dedicated support for three users. Powder-coated steel hidden legs provide steady support, with even floor load distribution across the full base perimeter to reduce pressure on floor surfaces. Fixed three-position stationary seating removes the hassle of adjusting loose cushions, while wide padded integrated armrests offer comfortable bilateral support. The sofa ships in two cartons, requiring knock-down assembly of hidden legs that takes a reference 40 minutes per set, with a total static load capacity of 450 kg across three seats. This sofa fits equally well across residential and light commercial settings: it serves as primary main seating for apartment and family living rooms, fits neatly into compact three-bedroom open-plan layouts, works as oversized supplementary lounge seating in large master bedrooms, and supports high-turnover furnishing for studios and rental properties. It is also well suited for informal small office lounge, reception, and break area seating. Procurement teams and residential buyers should note the packaged gross weight and total packaging volume for delivery planning, account for the simple on-site leg assembly requirement, and leverage the easy-clean, abrasion-resistant fabric properties for high-traffic use cases where regular maintenance and long-term appearance retention are priorities.

Beige Grid-Tufted Low-Profile Three-Seater Fabric Sofa Specifications
