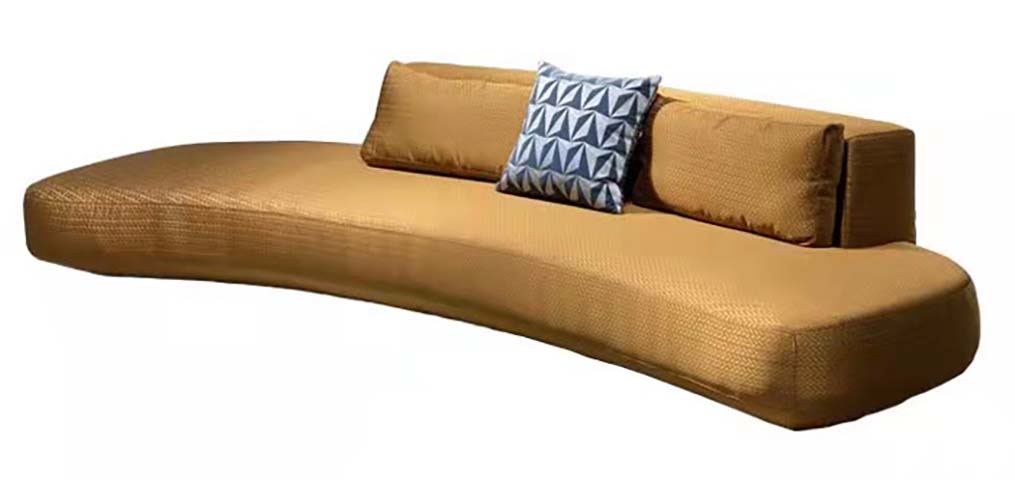

Curved Armless Low-Profile Chaise Daybed Sofa Specifications

CDB-ARCLW-2800GOLD

Code:LU9A76V1
Request supplier quotes
2026-09-08 12:42Popularity: 6
Parameter Correction History (Public)
SubmittedFieldOriginalNote / Status
No corrections yet. Use the flag at the end of a row to report an issue.

CDB-ARCLW-2800GOLD

1 active supplier(s) >>
PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

overall dimensions2800 x 1400 x 800 mm
seat height from floor450 mm
seat cushion thickness150 mm
back cushion height350 mm
back cushion thickness120 mm
seat usable depth at widest point900 mm
throw pillow dimensions450 x 450 mm
base wrap height from floor300 mm
extended chaise end depth1000 mm
rounded tapered end width800 mm
Leg Height / Floor Clearance160 mm
PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

overall static load capacity450 kg
net product weight120 kg
upholstery fabric abrasion resistance30000 double rubs
cushion foam density45 kg/m³
cushion foam rebound rate60%
warranty period3 years
available color options6
Seat Foam Density / Rebound40 kg/m³ / 60%
Upholstery Abrasion ReferenceFabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference130 kg/seat
PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

outer upholstery fabricTextured woven golden polyester fabric
inner support frameKiln-dried solid hardwood + 18mm structural plywood
seat core fill45kg/m³ high-density polyurethane foam
back cushion fillBlend of polyurethane foam and doll cotton
decorative throw pillow coverPrinted geometric pattern woven polyester
throw pillow fill100% polyester fiberfill
base undersurfaceBlack non-woven fabric dust cover
internal support webbing50mm wide elastic polyester webbing
seam stitch pitch8 stitches per 30mm
Timber Frame Section / MoisturePrimary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing SpecificationSinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector SpecificationReference M8-M10 with at least 1 mechanical fixing per leg
PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

seating configurationAsymmetrical 3-position lounging layout with one extended chaise end
back support arrangementTwo removable loose back cushions positioned for mid-seat lumbar support
mobilityStatic non-adjustable platform base with no recline, swivel or moving mechanisms
floor contactFull perimeter upholstered base contact with no exposed legs or glides
cushion removabilityBack cushions and throw pillow are removable for cleaning or repositioning
cleaning methodSpot clean only with water-based upholstery cleaner
assembly requirementFully assembled delivery, no on-site hardware installation required
position flexibilitySupports upright seated, reclined lounging, and fully stretched lying positions
Cushion Service ConfigurationRecommended 2removable/replaceable cushion methods
PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Reference Package Count1 set / 2 cartons
Reference Assembly Time40 minutes per set
Reference Module Carton Dimensions2200× 1050× 850 mm
Reference Packaging Volume1.8 m³/item
Reference Packaged Gross Weight110 kg/item
PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

residential living roomSuitable for open-plan modern living rooms as a statement lounge seating piece
boutique lounge areasIdeal for hotel lobbies, designer lounge spaces and high-end reception areas
private relaxation nooksWorks in bedroom lounge corners or reading nooks for stretched reclining use
open-concept studio spacesFits studio apartments as a multi-use seating and day rest piece
modern minimalist interiorsMatches neutral-tone contemporary decor schemes with warm golden finish
recommended placementPosition with rounded tapered end toward walkways for clear traffic flow
STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015Applicable strength, durability and safety requirements for domestic seating
EN 1021-1:2014Applicable upholstery furniture cigarette ignition resistance standard
STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017Applicable general technical requirements for wooden upholstered furniture framing
GB/T 1952.1-2012Applicable safety and performance requirements for upholstered sofas
GB 18401-2010Applicable formaldehyde and harmful substance limits for upholstery textiles
Standardized tender description text
This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable general technical requirements for wooden upholstered furniture framing;
2. GB/T 1952.1-2012: Applicable safety and performance requirements for upholstered sofas;
3. GB 18401-2010: Applicable formaldehyde and harmful substance limits for upholstery textiles;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CDB-ARCLW-2800GOLD

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CDB-ARCLW-2800GOLD

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CDB-ARCLW-2800GOLDOpen Export Tool

Quick Actions

Post an RFQ

Product Description

The Curved Armless Low-Profile Chaise Daybed Sofa (model CDB-ARCLW-2800GOLD) is an unbranded modern upholstered seating piece defined by its smooth, continuous curved silhouette and low-profile platform base, with no exposed legs or protruding structural elements. It features an asymmetrical 3-position lounging layout anchored by one extended tapered chaise end, paired with two loose back cushions positioned to deliver targeted mid-seat lumbar support, plus a matching 450 x 450 mm geometric print throw pillow for layered visual depth. The warm golden textured woven polyester upholstery creates a soft, tactile surface that complements neutral, contemporary decor palettes, and the full perimeter upholstered base sits flush to the floor for a streamlined, uncluttered visual presence. For optimal traffic flow, position the rounded tapered end toward adjacent walkways. Its robust internal construction starts with a kiln-dried solid hardwood and 18mm structural plywood frame, supported by 50mm wide elastic polyester webbing to evenly distribute weight across the seating surface. The seat core is filled with 45 kg/m³ high-density polyurethane foam with a 60% rebound rate, wrapped in the textured golden woven upholstery for a plush, supportive sit, while the removable back cushions hold a soft blend of polyurethane foam and doll cotton. The matching throw pillow is stuffed with 100% polyester fiberfill, and the base undersurface is fitted with a black non-woven fabric dust cover to protect flooring and internal components. Seams are stitched at a consistent 8 stitches per 30mm for durable, clean finishes, and the upholstery holds a 30,000 double rub abrasion resistance rating to withstand regular use. This static, non-adjustable design includes no recline, swivel, or moving mechanisms, delivering stable, fixed lounging support with a 450 kg total static load capacity. The seat sits 450 mm from the floor, with a 150 mm thick seat cushion, 350 mm tall back cushions, and 900 mm of usable seat depth at its widest point, delivering ample room for stretched, relaxed positioning. Removable back cushions and throw pillow allow easy repositioning or targeted cleaning; the upholstery requires spot cleaning only with water-based upholstery cleaner. The product ships fully assembled, with no on-site hardware installation required, eliminating setup complexity. It is well suited for a range of residential and commercial spaces: it serves as a striking statement seating piece for open-plan modern living rooms, a refined lounge option for hotel lobbies, designer reception areas, and boutique lounge spaces, a comfortable relaxation spot for bedroom reading nooks, and a flexible multi-use seating and day rest solution for open-concept studio apartments. It pairs seamlessly with modern minimalist interior schemes, with 6 available color options to align with varied decor visions. The piece is covered by a 3-year warranty. When planning procurement, note the unit ships as one set across two cartons, with a packaged gross weight of 110 kg per item and total packaging volume of 1.8 m³, to coordinate appropriate delivery and placement logistics for the intended space.
