PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3200 × 2000 × 830 mm
Overall L-shaped footprint	3200 x 2000 x 830 mm
Seat height from floor	450 mm
Individual seat cushion depth	1040 mm
Seat cushion thickness	280 mm
Back cushion height	600 mm
Single armless module width	1000 mm
Chaise section length	2000 mm
Armrest width at chaise end	200 mm
Base height (floor to seat deck)	170 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	161 kg
Per-seat static load capacity	150 kg
Seat cushion foam density	45 kg/m³
Seat cushion foam rebound rate	60%
Upholstery fabric abrasion resistance	30000 cycles
Upholstery fabric weight	350 g/m²
Seam stitch pitch	3 mm
Frame structural warranty	6 years
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Internal support frame	Kiln-dried solid pine wood, 30mm section thickness
Seat support system	80mm wide elastic webbing, 50mm spacing
Seat cushion core	High-resilience polyurethane foam wrapped in down-feather blend
Back cushion fill	Down-silk floss blend with lightweight foam core
Upholstery fabric	Stain-resistant matte white tech fabric, water-repellent surface finish
Base structure	Upholstered solid wood box frame, non-slip felt bottom pads
Throw pillow covers	Faux leather (dark brown, caramel) with matching edge piping
Module connection hardware	Heavy-duty metal interlocking clips
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color Count	Recommended 8fabric/leather color options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular configuration	Reconfigurable armless, corner, and chaise units connected via metal clips
Cover maintenance	Zippered removable cushion and base covers for machine washing
Seating posture support	Extra-deep 1040mm seat depth supports cross-legged and reclined sitting
Anti-slip base protection	Felt pads under each module prevent floor scratches and unwanted sliding
Color option availability	4 standard upholstery colors (cream white, beige, charcoal, black)
Back cushion positioning	Loose non-tufted back cushions can be rearranged for adjustable lumbar support
Assembly requirement	Tool-free module connection only, no complex frame assembly required
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room primary seating	Suitable for open-plan living areas, large apartments and loft spaces
Lounge/media room seating	Extra-deep seats support long-duration movie watching and relaxed lounging
Modern minimalist interior schemes	Matte white low-profile design complements cream, wabi-sabi and contemporary decor styles
Open-concept studio apartment zoning	L-shape layout divides open space into separate seating and circulation zones
Residential reception area seating	Soft, inviting appearance suitable for home entry lounge and casual guest reception

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture strength and durability	EN 12520:2015
Formaldehyde emission	EN 13986:2004+A1:2015

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Upholstery fabric safety	GB 20400
Furniture structural safety	GB/T 3324
Soft furniture flammability	GB 17927.1

Standardized tender description text

This product must meet the following technical requirements:
1. Upholstery fabric safety: GB 20400;
2. Furniture structural safety: GB/T 3324;
3. Soft furniture flammability: GB 17927.1;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LSEC-DS3200-WH

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LSEC-DS3200-WH

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LSEC-DS3200-WHOpen Export Tool

Quick Actions

Post an RFQ

Product Description

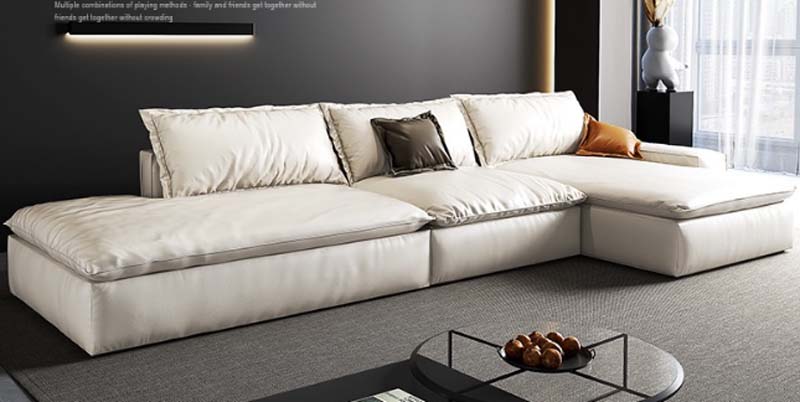

The Low-Profile L-Shaped Deep-Seat Modular Sectional Sofa, model LSEC-DS3200-WH, features a streamlined floor-skimming L-shaped layout defined by clean, unadorned lines, plush loose cushions, and a fully upholstered box base that sits close to the floor for a relaxed, uncluttered visual profile. The base is fitted with non-slip felt pads on its underside to protect flooring and prevent unintended shifting. Its core structure relies on a kiln-dried solid pine wood frame, paired with an elastic webbing seat support system to create a stable, even foundation for extended use. Seat cushions are constructed with a high-resilience polyurethane foam core wrapped in a down-feather blend, while back cushions use a down-silk floss fill around a lightweight foam core for a soft, yielding feel. The upholstery is a matte, stain-resistant white tech fabric with a water-repellent surface finish, designed to hold up to regular everyday contact; the set also includes contrasting dark brown and caramel faux leather throw pillows with matching edge piping for subtle visual contrast. Heavy-duty metal interlocking clips secure individual armless, corner, and chaise modules together, with no complex frame assembly required during setup. Zippered, removable covers on all cushions and the base allow for convenient machine washing to support long-term upkeep, while loose non-tufted back cushions can be repositioned to adjust lumbar support for individual comfort. The extra-deep seat design accommodates cross-legged sitting and fully reclined postures, making it well suited for extended periods of relaxed lounging. This sectional works effectively as primary seating in open-plan residential living rooms, large apartments, and loft spaces, and it fits seamlessly into lounge and media rooms designed for long movie sessions or casual gatherings. Its low-profile matte finish complements modern minimalist, cream, wabi-sabi, and contemporary interior schemes, and its L-shaped form can be used to zone open-concept studio apartments, creating clear separation between seating areas and circulation paths. It also presents a soft, welcoming option for home entry lounges and casual residential reception spaces. For procurement, note that the model is offered as an unbranded product, with four standard upholstery color options including cream white, beige, charcoal, and black. Each set ships in two cartons, with tool-free module connection that supports a straightforward setup process. The fixed modular dimensions are sized to fit larger open spaces, so buyers should confirm available floor area matches the product’s full L-shaped footprint prior to purchase, and account for the total packaged weight and volume when arranging delivery and placement.

Low-Profile L-Shaped Deep-Seat Modular Sectional Sofa Specifications
