Name: Curved Modular Sectional Sofa with Chaise Lounge and Throw Pillows
Brand: AIMENGSHI
SKU: MJ6UU1

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4200 × 2200 × 780 mm
Throw pillow dimensions	500 x 500 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	280 kg
Per-seat static load capacity	150 kg
Foam density (seat cushions)	45 kg/m³
Foam density (backrest cushions)	30 kg/m³
Fabric abrasion resistance (Martindale)	40000 cycles
Seating capacity	6 people
Frame static load rating	900 kg
Seam tensile strength	180 N
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

External upholstery fabric	Boucle-textured polyester-blend woven fabric
Contrast piping	Smooth light off-white faux leather piping
Seat cushion core	High-resilience polyurethane foam wrapped in polyester batting
Backrest cushion core	Medium-density polyurethane foam with fiber fill wrap
Internal load-bearing frame	Kiln-dried solid pine and engineered hardwood frame
Internal support webbing	80mm wide elastic webbing under seat cushions
Floor protection glides	Black matte hard plastic non-marking glides
Throw pillow covers	Mixed woven and printed fabric covers with removable zippers
Stitching thread	High-tenacity polyester upholstery thread
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular connection system	Metal interlocking brackets secure each adjacent module for stable alignment
Integrated armrest support	Fully padded rounded end armrests double as cushioned side bolsters
Curved corner seating	Curved central module provides angled conversational seating without sharp edges
Right-side chaise extension	Extended chaise module allows full leg rest without separate ottoman
Non-marking floor protection	Low-profile plastic glides prevent floor scratches on hard flooring
Removable throw pillows	6 included throw pillows are positionable across all seat and back sections
Low-profile base design	Upholstered wraparound base eliminates visible legs for a streamlined modern look
Upholstery seam alignment	Contrast piping follows all curved panel edges for consistent geometric detailing
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

High-end residential living rooms	Suitable for open-plan living spaces requiring generous conversational seating for families and guests
Luxury hotel lounge areas	Durable upholstery and modular layout suit hotel lobbies and premium suite seating zones
Modern office reception areas	Low-profile curved design creates welcoming guest seating in executive reception spaces
Open-plan penthouse or loft spaces	Large-scale asymmetric layout anchors spacious contemporary residential interiors
Show home and interior display settings	Statement curved design acts as a focal point for contemporary interior styling
Residential media rooms	Deep cushioned seating supports extended relaxed viewing for household use

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Domestic furniture seating strength, durability and safety requirements for upholstered sofas
EN 1021-1:2014	Upholstered furniture ignition resistance test standard for smouldering cigarette sources

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements applicable to wooden-frame upholstered furniture strength and durability
GB 18584-2001	Indoor decoration material limit for formaldehyde emission from wooden furniture components
GB/T 19001-2016	Quality management system requirement guidance for furniture manufacturing consistency

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements applicable to wooden-frame upholstered furniture strength and durability;
2. GB 18584-2001: Indoor decoration material limit for formaldehyde emission from wooden furniture components;
3. GB/T 19001-2016: Quality management system requirement guidance for furniture manufacturing consistency;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SEC-CURV-4200-SGE

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SEC-CURV-4200-SGE

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SEC-CURV-4200-SGEOpen Export Tool

Quick Actions

Post an RFQ

Product Description

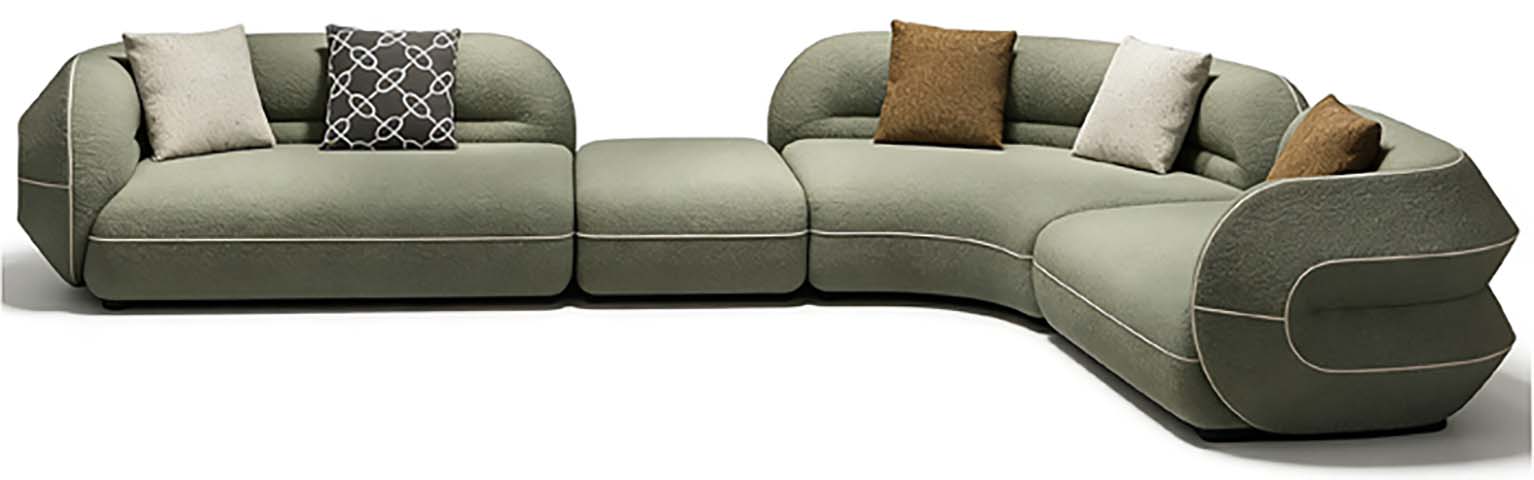

The AIMENGSHI SEC-CURV-4200-SGE Curved Modular Sectional Sofa with Chaise Lounge and Throw Pillows is a purpose-built public and premium residential seating solution defined by its smooth, flowing curved profile and streamlined low-profile wraparound base that eliminates visible legs for a cohesive, modern aesthetic. Contrast light off-white faux leather piping traces the edges of the boucle-textured polyester-blend woven upholstery, adding refined visual definition to the soft, textured exterior. The layout includes a central curved seating module that creates gentle angled positioning for face-to-face conversation, paired with a right-side chaise extension and fully padded rounded end armrests that double as cushioned side bolsters, with six matching 500 x 500 mm throw pillows finished in mixed woven and printed zippered covers that can be repositioned across all seat and back sections to suit user preference.
Constructed for long-term heavy use, the sofa’s internal load-bearing structure uses a kiln-dried solid pine and engineered hardwood frame, reinforced with 80mm wide elastic webbing under the seat areas for consistent support. Seat cushions feature a core of 45 kg/m³ high-resilience polyurethane foam wrapped in polyester batting at 180 mm thickness, paired with 160 mm thick back cushions of 30 kg/m³ medium-density polyurethane foam wrapped in fiber fill, all stitched with high-tenacity polyester upholstery thread. The external boucle fabric achieves 40000 Martindale abrasion cycles for durable wear, while black matte hard plastic non-marking glides at the 160 mm floor clearance prevent scuffs and scratches on hard flooring surfaces. Metal interlocking brackets secure each adjacent module to maintain stable, seamless alignment across the configuration. The full unit measures 4200 x 2200 x 780 mm, with a 280 kg net weight, 150 kg per-seat static load capacity, 900 kg total frame static load rating, and seating for six people, with the integrated chaise eliminating the need for a separate ottoman for full leg rest.
This sofa is suited to high-end open-plan residential living rooms and media rooms, luxury hotel lobbies and premium suite lounge zones, modern executive office reception areas, spacious penthouse and loft interiors, and show home display settings where it acts as a distinct focal point for contemporary styling. For procurement, note that each unit ships across two cartons with a total packaged volume of 1.8 m³ and 110 kg packaged gross weight per item, requiring 40 minutes of on-site assembly per set. Specifiers should account for the fixed curved footprint when planning space allocation to ensure the layout fits intended circulation paths.

Curved Modular Sectional Sofa with Chaise Lounge and Throw Pillows Specifications
