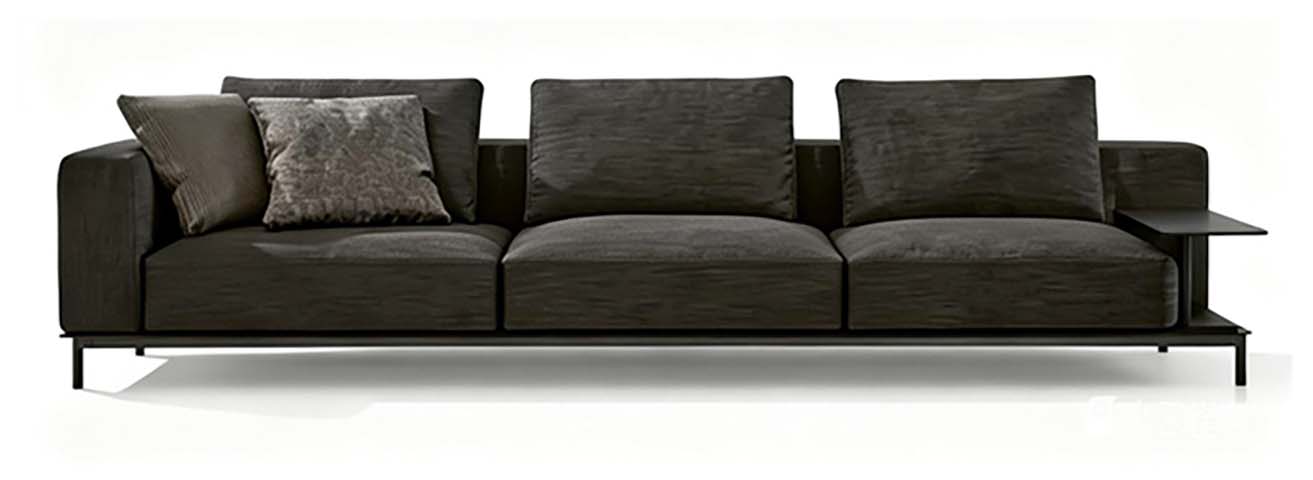

Product supplierCharcoal Fabric Three-Seat Sofa with Integrated Right Metal Side Table, Textured woven polyester, dark charcoal finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2440 × 970 × 820 mm | |
|---|---|---|
| Seat height | 430 mm | |
| Seat depth | 600 mm | |
| Back cushion height | 480 mm | |
| Armrest height | 620 mm | |
| Leg height | 120 mm | |
| Integrated right side table dimensions | 450 x 300 mm | |
| Individual seat cushion width | 700 mm | |
| Seat cushion thickness | 180 mm | |
| Back cushion thickness | 150 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total static load capacity | 300 kg | |
|---|---|---|
| Fabric abrasion resistance | 55000 cycles | |
| Fabric lightfastness rating | Level 5 | |
| Seat foam density | 35 kg/m³ | |
| Back/arm foam density | 25 kg/m³ | |
| Foam rebound rate | 60% | |
| Net weight reference | 90 kg | |
| Seam stitch pitch | 30 mm per 100 mm | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery fabric | Textured woven polyester, dark charcoal finish | |
|---|---|---|
| Seat cushion fill | 35 kg/m³ high-resilience polyurethane foam with polyester batting | |
| Back cushion fill | 25 kg/m³ polyurethane foam wrapped with polyester fiber | |
| Internal support frame | Kiln-dried hardwood plywood frame | |
| Base frame and legs | Matte black powder-coated 20 mm diameter tubular steel | |
| Integrated side table | Matte black powder-coated steel frame with black laminate tabletop | |
| Throw pillows | Polyester fabric covers with down-alternative polyfill | |
| Support webbing | 50 mm wide elastic webbing under seat cushions | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | Three fixed equal-width seating positions with loose removable cushions | |
|---|---|---|
| Integrated side table | Fixed cantilevered side shelf on right arm for drinks and small objects | |
| Lower open shelf | Open metal shelf under right seat for small item storage | |
| Cushion removal | Loose seat and back cushions can be lifted for cleaning | |
| Floor protection | Small plastic glides on leg ends to prevent floor scratching | |
| Static seating use | Fixed frame with no recline, tilt or sleeper conversion | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room | Suitable for open-plan modern living areas as primary lounge seating | |
|---|---|---|
| Office reception area | Appropriate for contemporary office lounge and reception waiting zones | |
| Apartment lounge space | Fits medium to large urban apartment living rooms without overwhelming space | |
| Home media room | Deep seating supports relaxed viewing positions for extended use | |
| Recommended configuration | Pair with matching ottomans and area rugs for complete lounge set |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Furniture upholstered seating safety | EN 1022:2018 | |
|---|---|---|
| Furniture fire resistance | EN 1021:2014 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Upholstered furniture safety | GB 20400:2006 | |
|---|---|---|
| Furniture mechanical performance | GB/T 3324 | |
| Textile color fastness | GB/T 2008 |
Standardized tender description text
This product must meet the following technical requirements: 1. Upholstered furniture safety: GB 20400:2006; 2. Furniture mechanical performance: GB/T 3324; 3. Textile color fastness: GB/T 2008; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
