Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 3610 x 1730 x 860 mm | |
|---|---|---|
| Seat height | 460 mm | |
| Seat depth (straight section) | 950 mm | |
| Chaise lounge depth | 1800 mm | |
| Seat cushion thickness | 200 mm | |
| Back cushion height | 480 mm | |
| Armrest height | 620 mm | |
| Leg height | 150 mm | |
| Armrest width | 220 mm | |
| Seat width per straight seat | 820 mm | |
| Floor clearance under frame | 120 mm | |
| Backrest total height from seat | 400 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Total static distributed load capacity | 590 kg | |
|---|---|---|
| Net weight (assembled) | 128 kg | |
| Seat foam density | 52D | |
| Foam rebound rate | 60% | |
| Seating capacity | 5 people | |
| Leather contact surface thickness | 3.2 mm | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat | |
| Upholstery Seam Pitch | 4 mm |
Core acceptance fields · Panels / hardware / frame / upholstery
| Upholstery | Dark gray smooth top-grain leather/faux leather with matte satin finish | |
|---|---|---|
| Seat cushion fill | 52D high-resilience polyurethane foam core with polyester wrap | |
| Back cushion fill | 38D polyurethane foam with fiber fill topper | |
| Internal frame | Kiln-dried solid pine wood with reinforced corner blocking | |
| Suspension system | Sinuous sinuous steel springs with 8cm spacing across seat base | |
| Legs | Dark stained solid hardwood tapered legs with floor protection glides | |
| Seam construction | Reinforced polyester stitching with 30mm seam pitch | |
| Armrest structure | Padded foam core wrapped in matching upholstery over wood frame | |
| Sectional connecting hardware | Heavy-duty steel interlocking brackets to join corner sections | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
Adjustment / rotation / tilt / mobility / storage features

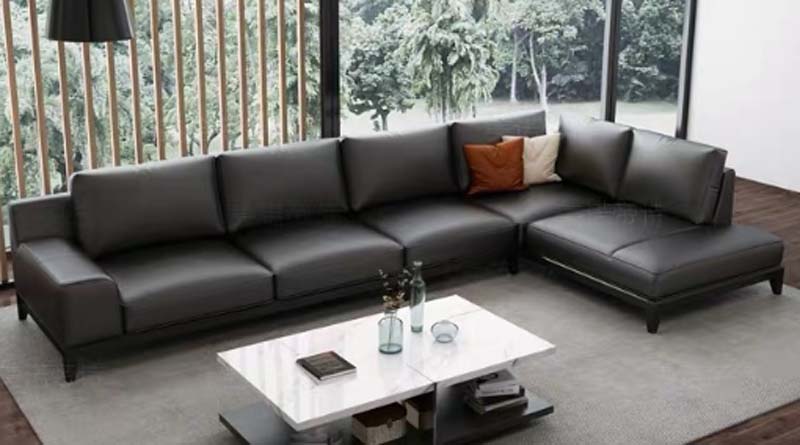

| Configuration | Fixed right-facing L-shape with attached right chaise lounge | |
|---|---|---|
| Cushion design | Removable seat and back cushions for easy cleaning | |
| Assembly requirement | Legs require attachment to pre-assembled sofa sections; sections lock with brackets | |
| Floor protection | Non-marking plastic glides fitted to leg bases to prevent floor scratches | |
| Orientation option | Available in right or left chaise facing configurations to suit room layouts | |
| Support design | Medium-firm seat support with no recline, storage, or sofa bed mechanisms | |
| Cleaning access | Smooth leather surface allows wipe-clean maintenance for high-use living areas | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Recommended spaces / users / usage modes
| Residential living rooms | Suitable for open-plan living areas seating 5 people for casual seating and entertaining | |
|---|---|---|
| Modern minimalist interiors | Matches contemporary, mid-century, or minimalist decor with dark gray finish and tapered legs | |
| Executive lounge areas | Appropriate for office reception or executive break rooms with durable leather upholstery | |
| Open-plan apartment spaces | Right chaise layout fits corner placements in medium to large open living zones | |
| Family household use | Medium-firm support and wipe-clean surface suitable for daily family use | |
| Paired with low coffee tables | 460mm seat height complements 450 mm tall standard living room coffee tables |
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Applicable standard for domestic furniture seating: strength, durability, and safety | |
|---|---|---|
| EN 13356:2018 | Applicable standard for upholstered furniture leather: performance requirements |
Standards applicable to China-market projects
| GB/T 1952.1-2012 | Applicable standard for upholstered sofas: safety, durability, and dimensional requirements | |
|---|---|---|
| GB 20400-2006 | Applicable standard for leather upholstery: limits of harmful substances in leather goods | |
| GB/T 3324-2017 | Applicable standard for wooden furniture frames: general technical requirements |
This product must meet the following technical requirements: 1. GB/T 1952.1-2012: Applicable standard for upholstered sofas: safety, durability, and dimensional requirements; 2. GB 20400-2006: Applicable standard for leather upholstery: limits of harmful substances in leather goods; 3. GB/T 3324-2017: Applicable standard for wooden furniture frames: general technical requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
