PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3800 × 2000 × 720 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	220 kg
Static load per seat position	150 kg
Total static load capacity	450 kg
Seat foam density	40 kg/m³
Backrest foam density	28 kg/m³
Fabric abrasion resistance (Martindale)	50000 cycles
Foam compression set resistance	95% rebound after 40% compression
Standard warranty period	3 years
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer upholstery	Matte soft performance polyester fabric
Seat core fill	High-resilience polyurethane foam with dacron wrap
Backrest core fill	Blend of polyurethane foam and down-alternative fiber
Internal load frame	Kiln-dried solid pine wood frame with corner blocking
Seat support layer	8-gauge sinuous spring suspension with polypropylene webbing
Throw pillow fill	Hollow conjugated polyester fiber fill
Integrated side table top	Matte black powder-coated carbon steel
Cushion stitching	Reinforced polyester thread with 40 mm stitch pitch
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color Count	Recommended 8fabric/leather color options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular connection system	Steel bracket connectors between seat modules
Tufted cushion construction	Pull-through button tufting on seat and back surfaces
Reversible seat cushion design	Symmetric seat cushions with matching upholstery on both sides
Multi-position lounge layout	Left chaise, two main seats and wide right armrest
Integrated side table surface	Fixed nested table between chaise and main seat
Detachable upholstery covers	Zipper access on all cushion and frame covers
Floor contact design	Hidden non-slip plastic foot glides at base corners
Back pillow positioning	Free-standing tufted throw pillows on seat back
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping packages	4
Largest shipping carton dimensions	1250 x 1150 x 750 mm
Total shipping gross weight	245 kg
Total shipping volume	2.9 cbm
Assembly time for two persons	60 minutes
20ft GP container loading capacity	12 units
40ft HQ container loading capacity	28 units
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan living room main seating	Extra-deep lounge seating for family relaxation and casual guest entertainment
Modern loft or studio apartment seating	Low-profile minimalist design fits industrial and soft contemporary interior styles
Home theater or media room seating	Wide modular layout supports multiple viewing positions for extended media use
Luxury residential lounge common area	Neutral light gray finish coordinates with a wide range of decor palettes
High-end residential model home furnishing	Premium tufted appearance supports showcase interior design staging requirements

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Domestic furniture seating safety requirement	EN 12520:2015
Upholstered furniture flammability resistance	EN 1021:2014

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Upholstered furniture safety general requirement	GB 20400
Furniture mechanical performance for seating	GB/T 3324
Textile fabric safety for interior use	GB 18401Class B

Standardized tender description text

This product must meet the following technical requirements:
1. Upholstered furniture safety general requirement: GB 20400;
2. Furniture mechanical performance for seating: GB/T 3324;
3. Textile fabric safety for interior use: GB 18401Class B;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SEC-L-TFT-3800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SEC-L-TFT-3800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SEC-L-TFT-3800Open Export Tool

Quick Actions

Post an RFQ

Product Description

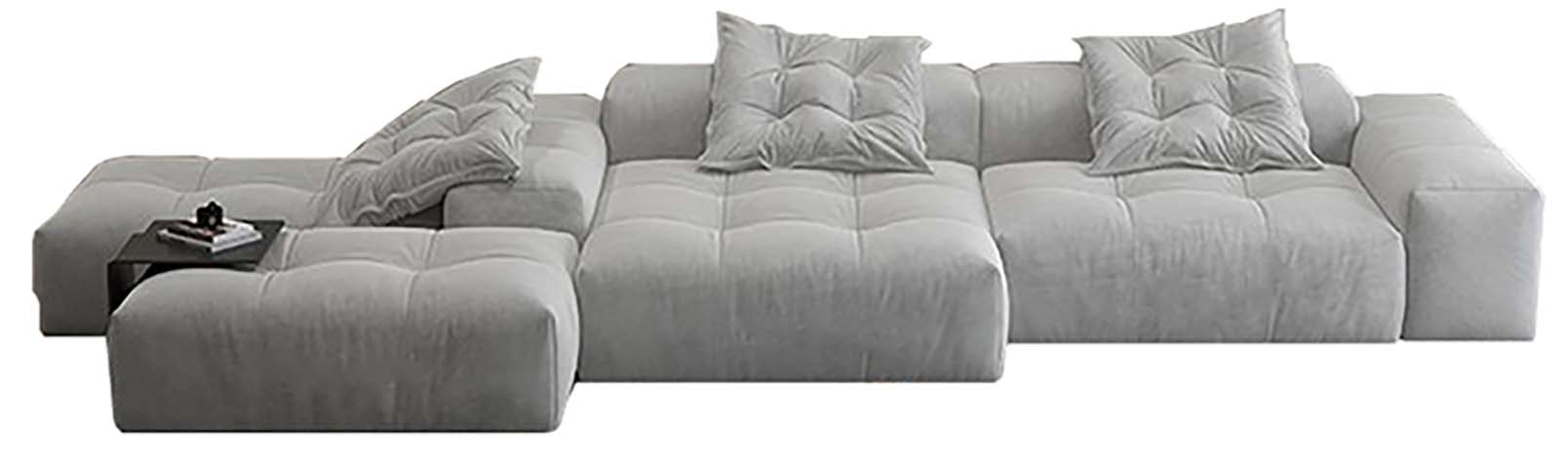

The Light Gray Tufted L-Shaped Modular Sectional Sofa presents a streamlined low-profile silhouette defined by neat pull-through button tufting across seat and back surfaces, arranged in a functional L-shaped layout with a left chaise, two primary seating positions, a wide right armrest, and a fixed nested matte black powder-coated carbon steel side table integrated between the chaise and main seat units. Delivered in four separate packages for easy transport, the piece uses steel bracket connectors to secure individual seat modules into a stable, cohesive seating assembly, with hidden non-slip plastic foot glides at all base corners to protect flooring and prevent unwanted shifting. Its kiln-dried solid pine wood internal frame incorporates corner blocking for structural rigidity, paired with an 8-gauge sinuous spring and polypropylene webbing seat support layer. Upholstered in a matte soft performance polyester fabric, the sofa features reversible seat cushions wrapped in high-resilience polyurethane foam with a dacron layer, back cushions filled with a blend of polyurethane foam and down-alternative fiber, and matching hollow conjugated polyester fiber throw pillows. All cushion and frame covers include zipper access for straightforward removal, and all stitching uses reinforced polyester thread for long-term seam durability. The light gray neutral finish pairs seamlessly with a broad spectrum of interior decor palettes, making the sofa well suited for a range of residential settings. It serves as a primary seating solution for open-plan living rooms, supporting family relaxation and casual guest entertainment; its minimalist, low-slung design also fits naturally in modern lofts and studio apartments, complementing both industrial and soft contemporary interior schemes. The wide layout offers multiple comfortable viewing positions ideal for home theater and media room use, while its polished tufted appearance makes it a fitting choice for luxury residential lounge common areas and high-end model home staging. For procurement planning, note that two-person assembly requires 60 minutes to complete, and total shipping weight, carton dimensions, and container load capacity should be coordinated with receiving and installation teams to align with project delivery timelines and site access constraints.

Light Gray Tufted L-Shaped Modular Sectional Sofa Specifications
