PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	4150 × 2060 × 800 mm
Seat height	470 mm
Seat depth (chaise segment)	1600 mm
Seat depth (standard segments)	980 mm
Armrest height	620 mm
Back cushion height	480 mm
Seat cushion thickness	220 mm
Support foot height	50 mm
Attached side table dimensions	450 x 450 x 580 mm
Seating width per module	800 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Overall product net weight	260 kg
Per-seat static load capacity	150 kg
Seat foam density	45 kg/m³
Foam rebound rate	60%
Fabric abrasion resistance	20000 cycles
Seat sag resistance rating	30000 cycles
Available color options	4
Residential warranty period	3 years
Total seating capacity width	3200 mm
Seat Foam Density / Rebound	40 kg/m³ / 60%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Internal frame	Kiln-dried solid pine hardwood frame
Seat support layer	80mm pocket spring core + woven webbing suspension
Seat cushion fill	45D high-resilience polyurethane foam core wrapped in 5A doll cotton
Back cushion fill	Blown polyester fiber and down-alternative fill
Upholstery fabric	380gsm off-white boucle-style textured polyester fabric
Seam construction	8 stitches per inch reinforced polyester stitching
Sofa support feet	Matte black powder-coated carbon steel small cylindrical feet
Side table top	10mm thick tempered clear glass with rounded edges
Side table base	Champagne gold brushed stainless steel C-frame base
Throw pillow covers	Mixed textured gray boucle and matte black woven fabric
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular configuration	3 connected segments forming open curved L-shape with left chaise
Seating function	Plush deep seating for 4 adults with separate loose back cushions
Armrest design	Integrated rounded bulbous armrests at both outer ends for soft edge support
Attached side table	C-shaped cantilever side table fits over seat edge for drink/device placement
Floor clearance	50mm under-sofa clearance to allow robot vacuum access
Cushion design	Reversible seat cushions to extend wear life over regular use
Surface maintenance	Wipe-clean fabric surface for stain removal with damp cloth
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room	Suitable for open-plan living areas as primary lounge seating for families
Hospitality lounge space	Applicable for hotel lobbies, boutique B&B reception areas and breakout zones
Small to medium apartment	Configurable curved layout optimizes corner space without sharp angles
Recommended matching furniture	Pair with low-profile round coffee tables and neutral-toned area rugs
User group	Designed for households preferring plush, casual deep-seating comfort

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Domestic furniture strength, durability and safety for seating products
EN 1021-1:2014	Upholstered furniture ignition resistance for smouldering cigarette source

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to internal frame quality
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable to formaldehyde emission control
GB/T 1952.1-2012	Technical requirements for upholstered sofas, applicable to seat durability and safety

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal frame quality;
2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable to formaldehyde emission control;
3. GB/T 1952.1-2012: Technical requirements for upholstered sofas, applicable to seat durability and safety;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CMS-OW350-CURVED-ST

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CMS-OW350-CURVED-ST

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CMS-OW350-CURVED-STOpen Export Tool

Quick Actions

Post an RFQ

Product Description

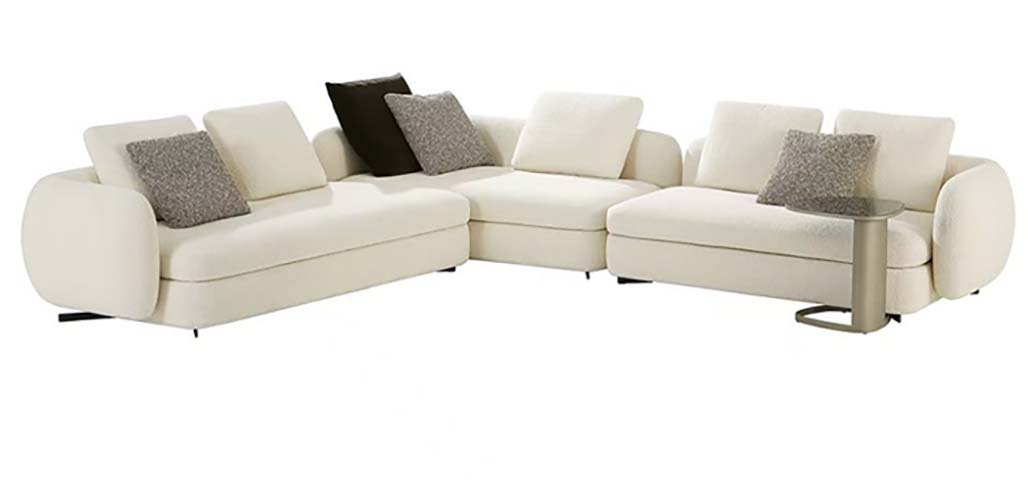

The Off-White Curved Modular Sectional Sofa with Matching Side Table, model CMS-OW350-CURVED-ST, is an unbranded curved modular seating solution designed for soft, approachable visual appeal and flexible use. Its form follows an open curved L-shape configured from three connected segments anchored by a left chaise, with integrated rounded bulbous armrests at both outer ends that eliminate harsh sharp angles for a gentle, welcoming silhouette. The low-profile silhouette is elevated by small matte black cylindrical metal support feet, and the set includes a matching cantilevered side table that tucks seamlessly over the seat edge for a cohesive, uncluttered layout. Construction prioritizes lasting comfort and structural integrity, starting with a kiln-dried solid pine hardwood internal frame. The seat support layer combines pocket spring cores with woven webbing suspension, topped by seat cushions with a high-resilience polyurethane foam core wrapped in soft doll cotton, and back cushions filled with a blend of blown polyester fiber and down-alternative material. All cushions are wrapped in 380gsm off-white boucle-style textured polyester upholstery, secured with reinforced polyester stitching for durable seam performance. The support feet are finished with matte black powder-coated carbon steel, while the attached side table features a 10mm thick clear tempered glass top with rounded edges, mounted on a champagne gold brushed stainless steel C-frame base. Practical function is built into every design element: the plush deep seating configuration accommodates four adults with separate loose back cushions, and reversible seat cushions help extend usable wear life over regular use. The C-shaped side table sits securely over the seat edge to hold drinks and personal devices within easy reach, while the 50mm under-sofa floor clearance allows unobstructed access for robot vacuums. The upholstered surface supports simple stain removal via wipe-down with a damp cloth, supporting low-effort regular maintenance. This set is well suited for both residential and light commercial spaces. In residential settings, it works as a primary lounge seating option for open-plan family living rooms, and its curved, angle-free layout optimizes corner space in small to medium apartments for users who prefer plush, casual deep-seating comfort. For commercial applications, it fits naturally in hotel lobbies, boutique B&B reception areas, and workplace breakout zones. For cohesive styling, it pairs ideally with low-profile round coffee tables and neutral-toned area rugs. Procurement teams and residential buyers should note the product ships in two cartons per set, with a documented reference assembly time of 40 minutes per unit. Four color options are available to align with existing interior palettes, and buyers should plan for appropriate delivery and installation access given the set’s scaled footprint.

Off-White Curved Modular Sectional Sofa with Matching Side Table Specifications
