PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3400 × 1750 × 750 mm
Overall assembled dimensions	3400 x 1750 x 750 mm
Seat height	460 mm
Seat depth (standard seating modules)	650 mm
Chaise lounge seat depth	1750 mm
Slim metal support leg height	150 mm
Integrated side table top dimensions	600 x 400 mm
Lower side shelf dimensions	550 x 350 mm
Armrest height from floor	600 mm
Back cushion height	450 mm
Included throw pillow size	550 x 550 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static weight capacity	675 kg
Per-seat static load capacity	150 kg
Recommended seating capacity	4 people
Total product net weight	110 kg
Seat cushion foam density	45D
Foam rebound rate	60%
Fabric abrasion resistance (Martindale)	30000 cycles
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm
Per-seat Load Reference	130 kg/seat

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main upholstery	Light beige woven performance fabric
Seat base trim	Brown faux leather edge binding
Internal frame	Kiln-dried solid pine wood
Seat support system	Sinuous steel spring suspension + elastic webbing
Cushion fill	45D high-resilience polyurethane foam + soft fiber topper
Support legs	150mm tall matte black powder-coated cylindrical steel
Integrated side table	Two-tier cantilevered walnut-veneer engineered wood
Throw pillow covers	Two caramel brown, one dark charcoal soft woven fabric
Seam construction	Reinforced stitched seams with 30mm stitch pitch
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular assembly	Three connected modules (left chaise + two curved seats) joined with metal bracket connectors
Integrated side table	Cantilevered two-tier shelf attached to right armrest, no leg obstruction to seating
Fixed stationary design	No recline, sofa-bed or adjustable mechanism visible
Back cushion placement	Loose, non-reclining padded back cushions for soft lumbar support
Removable cushion covers	Zippered cushion covers for spot cleaning and maintenance
Floor protection	Each metal leg fitted with non-slip plastic floor glide
Chaise function	Extended left chaise supports full-length reclining for one adult
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room	Suitable for open-plan modern minimalist, wabi-sabi or cream-style home living spaces
High-end lounge space	Ideal for designer boutique hotel lobbies or premium office reception areas
Open-plan apartment seating	Recommended for medium to large open living areas over 20sqm
Recommended pairing	Matches curved low-profile coffee tables, neutral tone area rugs and minimalist floor lamps
Target user group	Designed for households of 5people, or design-focused commercial spaces seeking premium casual seating

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Domestic furniture seating safety requirements	EN 12520:2015
Upholstered furniture flammability resistance	EN 1021:2014

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Upholstered furniture safety general requirement	GB 20400
Furniture mechanical performance test for seating	GB/T 3324
Textile fabric safety for indoor use	GB 18401Category B

Standardized tender description text

This product must meet the following technical requirements:
1. Upholstered furniture safety general requirement: GB 20400;
2. Furniture mechanical performance test for seating: GB/T 3324;
3. Textile fabric safety for indoor use: GB 18401Category B;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CS-LC-ST340

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CS-LC-ST340

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CS-LC-ST340Open Export Tool

Quick Actions

Post an RFQ

Product Description

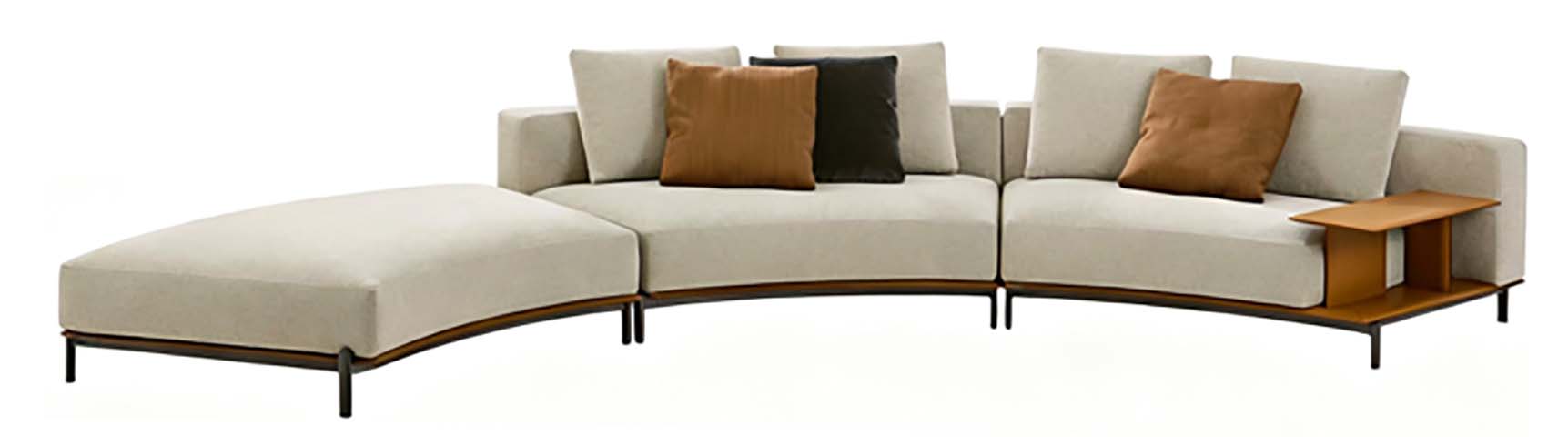

The Modern Curved Left Chaise Sectional Sofa with Integrated Two-Tier Side Table (model CS-LC-ST340) is an unbranded public seating piece defined by soft, flowing curved lines and a streamlined minimalist silhouette. Its layout combines an extended left chaise with two adjacent curved standard seating modules, anchored by a cantilevered two-tier side table mounted to the right armrest, with no supporting legs to obstruct legroom or seating access. The frame is constructed from kiln-dried solid pine wood, fitted with 150mm tall matte black powder-coated cylindrical steel legs, each capped with non-slip plastic glides to protect floor surfaces. Upholstered in light beige woven performance fabric with brown faux leather trim along the seat base, the sofa features reinforced stitched seams with a 30mm stitch pitch for durable everyday use. It sits on a sinuous steel spring and elastic webbing support system, topped with 45D high-resilience polyurethane foam cushions layered with a soft fiber topper; the 60% rebound rate foam delivers consistent, comfortable support, paired with loose, non-reclining padded back cushions for gentle lumbar support. Three coordinating throw pillows—two in caramel brown, one in dark charcoal woven fabric—accent the neutral upholstery, while zippered cushion covers simplify routine spot cleaning. The integrated two-tier cantilever side table uses walnut-veneer engineered wood, providing open surface space for drinks, reading materials, or decorative items without additional floor clutter. The sofa supports a recommended four seated guests, with a total static weight capacity of 675 kg and 150 kg per individual seat; the extended left chaise accommodates full-length reclining for one adult. It has no reclining, sofa-bed, or adjustable mechanisms, maintaining a clean, fixed profile. This piece suits open-plan residential living rooms styled with modern minimalist, wabi-sabi, or cream-toned palettes, as well as high-end commercial spaces including boutique hotel lobbies and premium office reception areas. It is recommended for medium to large open living areas over 20sqm, pairing seamlessly with curved low-profile coffee tables, neutral tone area rugs, and minimalist floor lamps, and serves households of five people or design-focused commercial settings seeking premium casual seating. For procurement, note that the unit ships in two cartons, requires 40 minutes of assembly via included metal bracket connectors, and has a net weight of 110 kg; select placement that accommodates the 3400 x 1750 x 750 mm assembled footprint to ensure proper traffic flow around the curved form and chaise extension.

Modern Curved Left Chaise Sectional Sofa with Integrated Two-Tier Side Table Specifications
