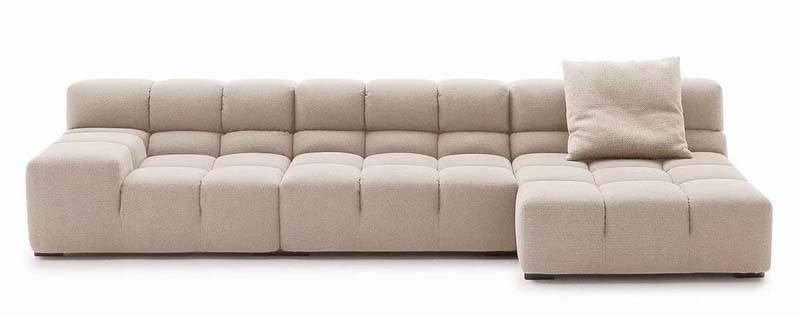

Product supplierL-Shaped Tufted Fabric Modular Sectional Sofa, Textured light beige woven polyester blend
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3400 × 1800 × 750 mm | |
|---|---|---|
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Seating capacity | 5 persons | |
|---|---|---|
| Total net weight | 160 kg | |
| Static load per seat | 150 kg | |
| Seat foam density | 45 kg/m³ | |
| Back foam density | 30 kg/m³ | |
| Fabric abrasion resistance | 50000 Martindale cycles | |
| Seam stitching durability | 200 N pull strength | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery fabric | Textured light beige woven polyester blend | |
|---|---|---|
| Seat cushion filling | High-resilience polyurethane foam wrapped with 20mm down blend layer | |
| Back cushion filling | Medium-density polyurethane foam with fiber wrap | |
| Inner support frame | Solid kiln-dried pine wood frame with plywood reinforcement | |
| Support feet | Matte black hard plastic glide feet | |
| Seat support system | 8mm sinuous steel spring suspension with polypropylene webbing | |
| Throw pillow filling | 100% blown polyester fiber fill | |
| Frame joint hardware | Metal corner brackets and wood screws | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular configuration | Connectable individual seat/chaise modules via underside metal clips | |
|---|---|---|
| Tufted upholstery design | Evenly spaced grid-tufted seat and back panels | |
| Chaise lounge extension | Right-side extended chaise unit for full leg support | |
| Low-profile seating design | Low back and low ground clearance for contemporary minimalist interiors | |
| Non-marking base glides | Plastic feet with felt underside pads | |
| Fixed soft back support | Integrated padded backrest with consistent lumbar support angle | |
| Reconfigurable layout option | Modules can be separated to form straight sofa or alternate chaise side orientation | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Modern residential living rooms | Low-profile tufted design fits contemporary minimalist and wabi-sabi interior schemes | |
|---|---|---|
| Open-plan lounge spaces | L-shaped layout defines seating zones without blocking sightlines in large open areas | |
| Light commercial reception areas | Durable fabric and high weight capacity suits boutique office or showroom waiting spaces | |
| Home media rooms | Deep seat cushions and chaise extension support long hours of relaxed seated viewing | |
| Neutral-toned interior palettes | Light beige fabric complements warm wood, neutral and muted color design schemes |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
