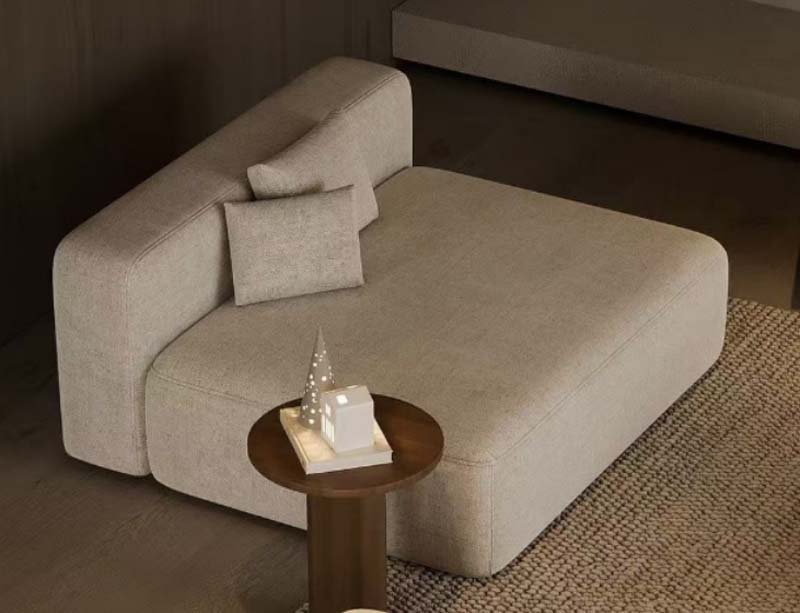

Product supplierLow-Profile Beige Textured Woven Modular Left L-Back Armless Chaise Lounge Sofa, 380 gsm textured light beige linen-polyester woven blend
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 953 × 2159 × 940 mm | |
|---|---|---|
| Overall assembled dimensions | 953 x 2159 x 940 mm | |
| Seat height from floor | 495 mm | |
| Seat depth (usable lounge surface) | 1803 mm | |
| Seat width (usable seating surface) | 864 mm | |
| L-shaped back/arm height | 940 mm | |
| Back/arm section depth | 406 mm | |
| Included throw pillow dimensions | 508 x 508 mm square, 457 x 508 mm lumbar | |
| Upholstered corner radius | 76 mm | |
| Floor clearance under base | 13 mm | |
| Seat Cushion Thickness | 180 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Assembled unit net weight | 41 kg | |
|---|---|---|
| Seat static load capacity | 159 kg | |
| Seat foam density | 40 kg/m³ | |
| Fabric Martindale abrasion rating | 30000 cycles | |
| Seat foam rebound rate | 60% | |
| Modular connection static shear strength | 91 kg | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat | |
| Upholstery Seam Pitch | 4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Upholstery fabric | 380 gsm textured light beige linen-polyester woven blend | |
|---|---|---|
| Internal frame | 22 mm thick kiln-dried engineered hardwood and composite wood | |
| Seat cushion core | 152 mm thick 40 kg/m³ high-resilience polyurethane foam wrapped in 25 mm dacron fiber | |
| Back/arm cushion core | 102 mm thick 32 kg/m³ medium-density polyurethane foam with fiber wrap | |
| Included throw pillows | Polyester fiber fill with matching woven fabric covers | |
| Suspension system | 70 mm wide elastic webbing spaced 100 mm apart on seat frame | |
| Modular connectors | 1.5 mm thick powder-coated steel snap brackets | |
| Base bottom panel | 3 mm thick non-woven dust cover with non-slip felt floor pads | |
| Seam construction | Stitched with bonded polyester thread at 8 stitches per 25 mm | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular configuration | Compatible with matching modular sofa units via undermount steel connectors to build L/U-shaped sectionals | |
|---|---|---|
| Seating function | Single-person open armless lounge for full reclined leg extension with left-side integrated back/arm support | |
| Floor stability | Felt-pad floor contact with no exposed legs for a grounded, blocky silhouette | |
| Cleaning access | Spot-clean upholstery with water-free solvent, cushion covers not permanently fixed for access | |
| Assembly requirement | Minimal attachment of connector brackets only, no full frame assembly required | |
| Throw pillow adjustability | Two included matching pillows are repositionable for custom lumbar or neck support | |
| Surface design | Rounded upholstered edges on all exposed corners to prevent impact injury and deliver soft modern aesthetic | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room | Serves as standalone lounge or chaise component of custom sectional layouts in minimalist interiors | |
|---|---|---|
| Open-plan lounge space | Low-profile design maintains unobstructed sight lines in modern neutral-toned spaces | |
| Quiet reading nook | Extended lounge surface supports full leg extension for relaxed seated or reclined reading | |
| Bedroom seating area | Compact single-unit chaise fits at bed foot or corner for secondary casual seating | |
| Hospitality lounge setting | Durable woven upholstery and blocky profile suit hotel or co-working lounge waiting areas | |
| Pairing recommendation | Matches with low-profile modular armless seats and corner units for full sectional builds |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Domestic furniture seating strength, durability and safety requirements | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignition resistance (cigarette test) for residential fabrics |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to frame and structural components | |
|---|---|---|
| GB 18401-2010 | National textile safety standard, applicable to upholstery fabric for residential use | |
| GB/T 3920-2008 | Textile color fastness to rubbing test, applicable to upholstery fabric performance |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame and structural components; 2. GB 18401-2010: National textile safety standard, applicable to upholstery fabric for residential use; 3. GB/T 3920-2008: Textile color fastness to rubbing test, applicable to upholstery fabric performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
