Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2290 × 880 × 840 mm | |
|---|---|---|
| Seat height from floor | 430 mm | |
| Seat depth | 650 mm | |
| Armrest height from floor | 650 mm | |
| Armrest thickness | 180 mm | |
| Backrest height from seat | 410 mm | |
| Seat cushion thickness | 150 mm | |
| Leg/skirt clearance from floor | 20 mm | |
| Back Cushion Thickness | 160 mm | |
| Leg Height / Floor Clearance | 160 mm |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Overall static load capacity | 454 kg | |
|---|---|---|
| Frame structural warranty | 8 years | |
| Upholstery abrasion resistance | 50000 cycles | |
| Product net weight | 70 kg | |
| Seat foam density | 45D | |
| Seat foam rebound rate | 60% | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm | |
| Per-seat Load Reference | 130 kg/seat | |
| Upholstery Seam Pitch | 4 mm |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Seat and back upholstery | 1.5mm thick light beige top-grain leather | |
|---|---|---|
| Internal load-bearing frame | Kiln-dried solid pine + 18mm plywood | |
| Seat support system | Pocket coil springs + 30mm polyester fiber wrap | |
| Cushion fill material | 45D high-density polyurethane foam | |

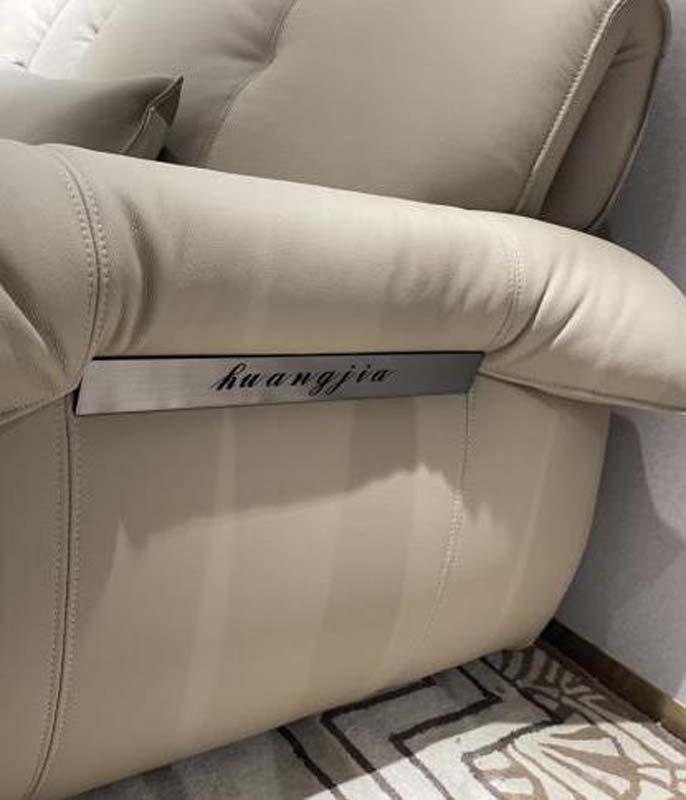

| Armrest trim plate | Brushed stainless steel with laser-etched branding | |
| Seam construction | Double-stitched bonded polyester thread, 8 stitches per 30mm | |
| Base construction | Upholstered engineered wood frame wrapped in matching leather | |
| Included accessory | Matching leather-covered throw pillow with fiber fill | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg | |
| Reference Upholstery Color Count | Recommended 8fabric/leather color options |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Seating configuration | 3-seat fixed stationary layout | |
|---|---|---|
| Backrest design | Button-tufted padded back cushion | |
| Armrest design | Rolled padded armrest with soft rounded edge | |
| Base function | Floor-resting integrated upholstered base | |
| Cushion design | Tight-upholstered seat and back cushions | |
| Placement suitability | Fits flush against interior walls | |
| Upholstery maintenance | Smooth non-porous leather surface | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Living room primary seating | 3-person sofa for residential living rooms, provides structured comfortable seating for households | |
|---|---|---|
| Open concept lounge areas | Neutral light beige finish suits modern, light luxury and contemporary interior palettes | |
| Hotel suite seating | Durable leather construction fits high-end hotel guest room and executive lounge applications | |
| Reception waiting areas | Polished tailored design creates professional welcoming seating for office reception zones | |
| Recommended placement | Position against flat interior walls with minimum 50mm rear clearance for air circulation | |
| Matching furniture pairing | Coordinates with leather armchairs, marble coffee tables and low-profile media consoles |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 1022:2018 | Applicable for domestic seating stability testing to resist tipping during use | |
|---|---|---|
| EN 12520:2015 | Applicable for residential furniture strength, durability and safety requirements |
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 1952.1-2012 | Applicable for upholstered sofa mechanical safety, durability and structural stability testing | |
|---|---|---|
| GB 20400-2006 | Applicable for leather upholstery formaldehyde and harmful substance content limits | |
| GB/T 16799-2008 | Applicable for furniture leather physical performance and quality grading |
This product must meet the following technical requirements: 1. GB/T 1952.1-2012: Applicable for upholstered sofa mechanical safety, durability and structural stability testing; 2. GB 20400-2006: Applicable for leather upholstery formaldehyde and harmful substance content limits; 3. GB/T 16799-2008: Applicable for furniture leather physical performance and quality grading; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
