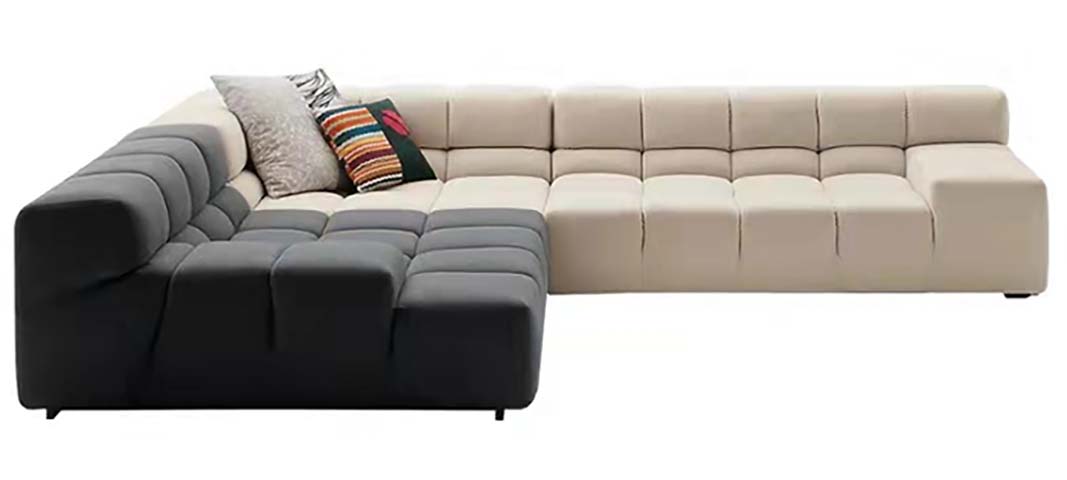

Product supplierTwo-Tone Block Grid Tufted L-Shaped Sectional Sofa, Kiln-dried solid pine + 18mm plywood
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 3300 × 2980 × 810 mm | |
|---|---|---|
| Seat height (from floor to cushion top) | 450 mm | |
| Individual seat module width | 1000 mm | |
| Seat depth (front edge to back cushion) | 1050 mm | |
| Armrest height (from floor to arm top) | 680 mm | |
| Armrest width (padded top surface) | 200 mm | |
| Support foot height | 40 mm | |
| Back cushion thickness | 180 mm | |
| Seat cushion thickness | 220 mm | |
| Corner section seating width | 980 mm | |
| Short chaise segment depth (extending from corner) | 1610 mm | |
| Leg Height / Floor Clearance | 160 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total sofa static load capacity | 900 kg | |
|---|---|---|
| Total sofa net weight reference | 140 kg | |
| Seat foam density | 32 kg/m³ | |
| Seat foam rebound rate | 60% | |
| Fabric abrasion resistance | 40000 Martindale cycles | |
| Back cushion fill fiber density | 20 kg/m³ | |
| Standard color option count | 2 (charcoal, cream) | |
| Manufacturer warranty period | 2 years | |
| Seat Foam Density / Rebound | 40 kg/m³ / 60% | |
| Upholstery Abrasion Reference | Fabric 60000 cycles; leather-class cover 1.4 mm |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Internal load-bearing frame | Kiln-dried solid pine + 18mm plywood | |
|---|---|---|
| Seat suspension system | 50mm wide high-resilience elastic webbing, 80mm spaced | |
| Seat cushion core | 32kg/m³ high-density polyurethane foam wrap | |
| Back cushion core | 20kg/m³ polyurethane foam blended with polyester fiber | |
| Upholstery fabric | 380gsm stain-resistant woven polyester | |
| Support feet | Matte black powder-coated steel with non-marking rubber caps | |
| Tufting construction | Hidden internal stitch channel tufting forming uniform block grid | |
| Seam stitching | Polyester bonded thread with 8mm stitch pitch | |
| Module connection hardware | Heavy-duty steel connector brackets between segments | |
| Timber Frame Section / Moisture | Primary section ≥30 × 50 mm; recommended moisture 12% | |
| Spring / Webbing Specification | Sinuous spring wire 4 mm; elastic webbing 70 mm wide | |
| Leg Connector Specification | Reference M8-M10 with at least 1 mechanical fixing per leg |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Modular sectional connection | Locking steel brackets join corner, short chaise, and long straight segments | |
|---|---|---|
| Seating configuration | Supports 6 adults across corner, chaise, and straight seating positions | |
| Cleaning functionality | Spot-cleanable fabric upholstery with removable cushion covers (zippered) | |
| Foot protection | Non-marking rubber foot caps prevent floor scuffing on hard surfaces | |
| Weight distribution | Sinuous spring and webbing suspension evenly distributes user weight across seat base | |
| Assembly requirement | Only minor module connection and foot installation required on delivery | |
| Cushion recovery | High-resilience foam returns to original shape after 72 hours of unpacking | |
| Layout flexibility | Modules can be reconfigured to left or right chaise orientation prior to connection | |
| Cushion Service Configuration | Recommended 2removable/replaceable cushion methods |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Residential living room | Suitable for open-plan living areas as primary lounge seating for families and guests | |
|---|---|---|
| Apartment and loft spaces | Low-profile silhouette fits modern minimalist interior design schemes without visual bulk | |
| Shared lounge areas | Abrasion-resistant fabric supports regular use in casual co-working or rental common spaces | |
| Open-concept home media rooms | Deep cushioned seating provides comfortable support for extended viewing sessions | |
| Recommended placement | Position against two adjacent walls to maximize floor space in smaller rooms | |
| Complementary accessories | Pairs with low-profile coffee tables and soft area rugs to complete contemporary lounge setups | |
| User group suitability | Designed for households seeking flexible, plush casual seating with modern two-tone aesthetic |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12520:2015 | Residential furniture strength, durability and safety requirements for seating | |
|---|---|---|
| EN 1021-1:2014 | Upholstered furniture ignition resistance for smoldering cigarette source |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to internal frame strength and stability | |
|---|---|---|
| GB 18584-2001 | Limit of harmful substances in wooden furniture, for formaldehyde emission verification | |
| GB/T 19001-2016 | Quality management system guidance for consistent furniture production |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to internal frame strength and stability; 2. GB 18584-2001: Limit of harmful substances in wooden furniture, for formaldehyde emission verification; 3. GB/T 19001-2016: Quality management system guidance for consistent furniture production; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
