PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 2800 × 850 mm
Overall assembled dimensions	3600 x 2800 x 850 mm
Seat height from floor	400 mm
Seat depth (straight segments)	610 mm
Left chaise lounge length	1900 mm
Individual seat width (straight modules)	750 mm
Armrest height from seat	150 mm
Back cushion height	450 mm
Integrated side table dimensions	600 x 400 x 50 mm
Metal leg height	120 mm
Right arm metal trim thickness	20 mm
Throw pillow dimensions	450 x 450 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	130 kg
Per-seat static weight capacity	136 kg
Total static weight capacity	952 kg
Seating capacity	7 people
Seat foam density	38 kg/m³
Foam rebound rate	60%
Fabric abrasion resistance	30000 double rubs
Seam stitch pitch	30 mm per 10 stitches
Frame moisture content	12%
Seat Foam Density / Rebound	40 kg/m³ / 60%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat and back upholstery	100% woven polyester fabric, light gray finish
Internal load-bearing frame	Kiln-dried solid hardwood with iron reinforcement brackets
Seat cushion core	High-density foam with pocketed spring support layer
Back cushion fill	Blown polyester fiber wrap over foam core
Support legs	15mm diameter black powder-coated steel pin legs
Integrated side table panel	Dark matte thermofoil finished engineered wood
Armrest construction	Padded upholstered square arms with black metal end trim
Included throw pillows	4 charcoal black velvet pillows, 1 light gray woven pillow
Modular connection hardware	Zinc-plated steel U-clip connectors
Seat suspension system	8cm wide elastic webbing grid under seat cushions
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular segment connection	Interlocking steel clips secure segments without additional tools
Cushion cover maintenance	Removable zippered cushion covers for spot cleaning or washing
Integrated side table use	Fixed dark surface for holding drinks, remotes, or small decor
Chaise lounge function	Extended left chaise supports full leg rest for reclined seating
Uniform seat support	Continuous even seat surface across connected segments
Low-profile seating position	400mm seat height supports relaxed casual lounge posture
Throw pillow arrangement	Included pillows provide adjustable lumbar and back support
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Large open-plan living room	Fits open floor plans requiring substantial multi-person lounge seating
Modern minimalist residential interiors	Matches low-profile, neutral color contemporary design schemes
Home lounge or media room	Provides extended seating for family gatherings and media viewing
High-end apartment common areas	Serves shared resident lounge spaces with clean, durable aesthetic
Open concept loft spaces	Defines seating zones in large undivided living spaces
Recommended paired furniture	Low-profile coffee tables 400 mm height to match seat level

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Residential furniture seating strength, durability and safety requirements
EN 1021-1:2014	Upholstered furniture flammability resistance to cigarette ignition

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to frame construction
GB/T 1952.1-2012	Strength and durability test standards for upholstered sofas, for residential use
GB 18584-2001	Indoor decoration material limit of harmful substances for wooden furniture, formaldehyde control

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to frame construction;
2. GB/T 1952.1-2012: Strength and durability test standards for upholstered sofas, for residential use;
3. GB 18584-2001: Indoor decoration material limit of harmful substances for wooden furniture, formaldehyde control;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · USOFA-LG-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · USOFA-LG-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · USOFA-LG-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

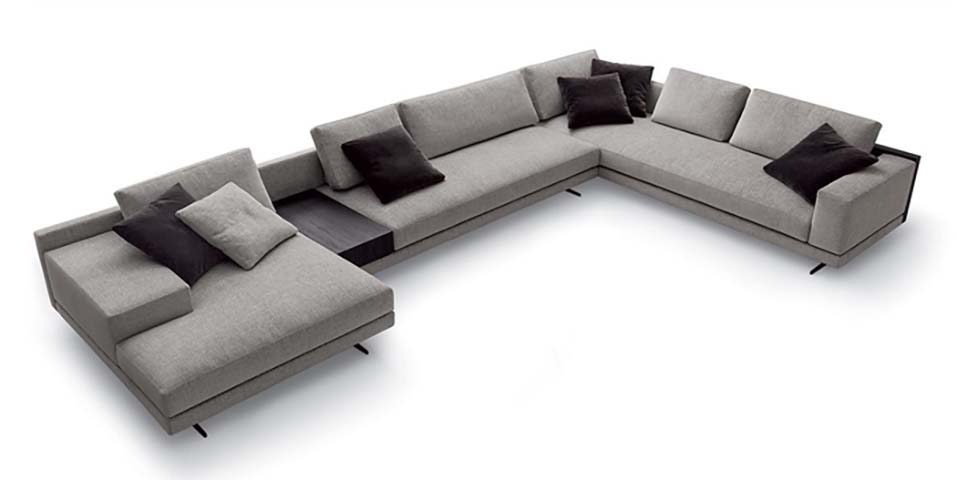

The Contemporary Light Gray Upholstered U-Shaped Modular Sectional Sofa with Integrated Side Table (model USOFA-LG-001, unbranded) features a clean, minimalist contemporary silhouette defined by its symmetrical U-shaped layout, low-profile stance, and refined neutral finish. The design incorporates padded square upholstered arms accented with black metal end trim, slender black powder-coated steel pin legs, and a fixed dark engineered wood side table integrated seamlessly into one segment, eliminating the need for separate adjacent side surfaces. Five coordinating throw pillows—four in charcoal black velvet and one in matching light gray woven fabric—are included to complete the polished, lounge-ready look. Built for long-term regular use, the sofa is constructed on a kiln-dried solid hardwood frame reinforced with iron brackets, secured by zinc-plated steel U-clip connectors that hold modular segments firmly in place. The upholstery is 100% light gray woven polyester, selected for durable everyday performance. Seat cushions use a high-density foam core paired with a pocketed spring support layer, wrapped under removable zippered covers for easy cleaning, while back cushions combine a foam core with soft blown polyester fiber wrap. The integrated side table features a dark matte thermofoil finish that resists common surface marks from regular use. The sofa seats seven people comfortably, with an extended left chaise lounge that allows users to recline with full leg support. The continuous, even seat surface across all connected modules eliminates awkward gaps between segments, and the 400mm seat height supports a relaxed, casual lounge posture. The integrated fixed side table offers a stable surface for drinks, remote controls, or small decorative items, while the included throw pillows can be repositioned to provide customized lumbar or back support. Assembly is completed with no additional tools required, as interlocking steel clips secure segments during setup. This sectional is ideally suited for large open-plan residential living rooms, modern minimalist home interiors, home media and lounge spaces, open concept lofts, and high-end apartment common resident areas. Its neutral light gray finish and low-profile lines align with contemporary design schemes, and it works to define distinct seating zones in large, undivided spaces. When selecting complementary pieces, opt for low-profile coffee tables at 400mm height to align with the sofa’s seat level. Procurement teams should note the product ships in two cartons per set, with a straightforward assembly process suitable for both residential and light commercial installation.

Contemporary Light Gray Upholstered U-Shaped Modular Sectional Sofa with Integrated Side Table Specifications
