PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3600 × 2000 × 850 mm
Seat height from floor	450 mm
Straight segment seat depth	950 mm
Chaise lounge segment depth	1700 mm
Armrest width	220 mm
Armrest height from seat	200 mm
Backrest height from seat	400 mm
Seat cushion thickness	220 mm
Back cushion thickness	180 mm
Throw pillow dimensions	500 x 500 mm
Integrated side shelf dimensions	1200 x 450 x 250 mm
Leg height	120 mm
Under-sofa ground clearance	100 mm
Shelf front open compartment height	120 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product net weight	180 kg
Per-seat static load capacity	150 kg
Recommended number of users	4
Seat foam density	45 kg/m³
Foam rebound rate	60%
Fabric Martindale abrasion resistance	30000 cycles
Seam stitch pitch	8 stitches per inch
Frame static load durability	100000 cycle
Standard product warranty	3 years
Seat Foam Density / Rebound	40 kg/m³ / 60%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upholstery fabric	380gsm textured woven performance fabric
Seat cushion fill	High-resilience polyurethane foam with down blend top layer
Back cushion fill	High-resilience foam with polyester fiber wrap
Internal frame	Kiln-dried solid pine wood with engineered wood bracing
Support legs	20mm diameter black powder-coated angled steel
Integrated side shelf	Walnut veneer over MDF core with matte wood finish
Seat support system	80mm wide elastic webbing + sinuous spring grid
Throw pillow covers	Mixed woven fabric in off-white, charcoal, camel tones
Throw pillow fill	100% hollow polyester fiber fill
Shelf interior compartment	Black matte laminate finished open slot
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating layout	Fixed right-hand facing chaise L-configuration with 3 straight seats + extended lounger
Integrated storage	Walnut-finish end unit with front open compartment for magazines/remotes
Cushion design	Loose removable box seat cushions and back cushions for easy cleaning
Accent pillow arrangement	8 mixed-tone throw pillows included for ergonomic back/arm support
Leg configuration	Evenly spaced angled black steel legs for stable base support
Floor clearance	100mm under-sofa gap to accommodate standard robot vacuum cleaning
Backrest detailing	Horizontal channel-quilted stitching for structured back support and modern aesthetic
Armrest design	Wide squared padded upholstered arms for comfortable arm resting
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Large open-plan living rooms	Ideal for wide horizontal living spaces with 3.5m+ wall clearance
Contemporary residential interiors	Suits Italian minimalist, wabi-sabi or modern neutral design schemes
High-end lounge spaces	Appropriate for luxury penthouse, villa or executive reception lounge use
Family daily use	Durable performance fabric and supportive cushions for regular multi-person seating
Open loft apartments	Low-profile elevated design maintains visual lightness in open industrial-style spaces
Media room seating	Extended chaise provides reclined seating for long-duration viewing comfort

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture strength and durability	EN 12520:2015

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Upholstered furniture safety	GB/T 3324
Fabric performance	GB/T 19817
Foam performance	GB/T 10802
Formaldehyde emission	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. Upholstered furniture safety: GB/T 3324;
2. Fabric performance: GB/T 19817;
3. Foam performance: GB/T 10802;
4. Formaldehyde emission: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · LSEC-CHAN-3600-WAL

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · LSEC-CHAN-3600-WAL

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · LSEC-CHAN-3600-WALOpen Export Tool

Quick Actions

Post an RFQ

Product Description

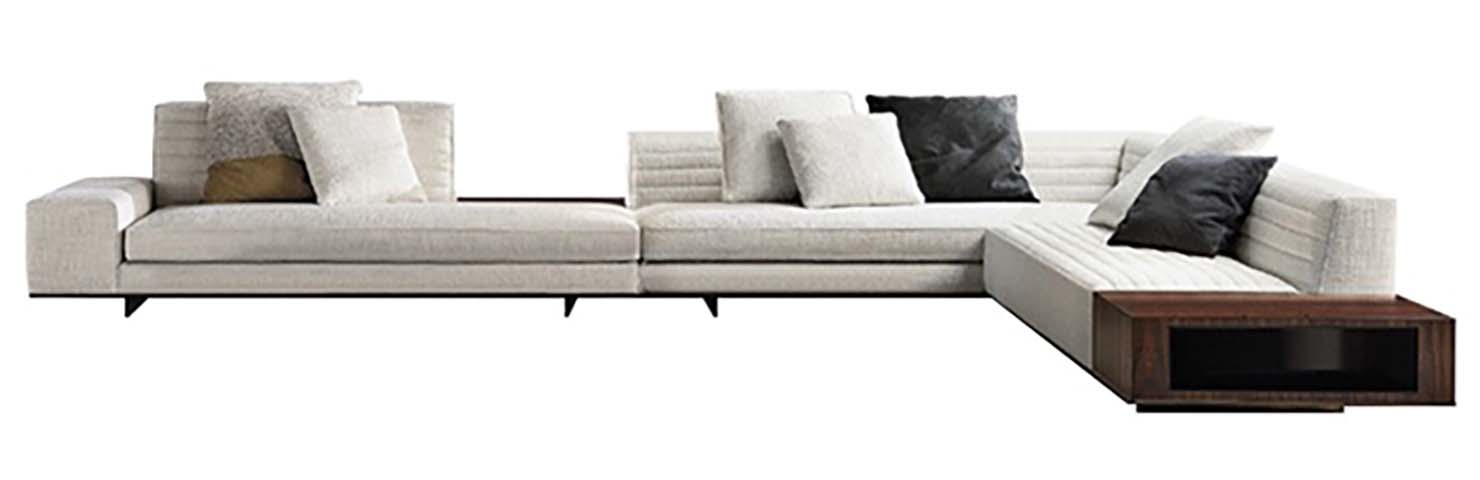

The Off-White Woven Fabric L-Shaped Sectional Sofa with Integrated Walnut Side Shelf, model LSEC-CHAN-3600-WAL, carries a streamlined low-profile Italian minimalist silhouette defined by clean, unornamented lines. Its fixed right-hand facing L-configuration combines three straight seats with an extended chaise lounge, anchored by evenly spaced angled black powder-coated steel legs that create a 100mm under-sofa gap. The upholstery uses textured off-white woven performance fabric, accented by horizontal channel-quilted stitching on the backrest for structured visual depth. An integrated walnut veneer side shelf sits flush with the sofa frame at one end, paired with eight included throw pillows in off-white, charcoal, and camel tones that add subtle tonal contrast without disrupting the cohesive, understated form. Built on a kiln-dried solid pine frame reinforced with engineered wood bracing, the sofa uses a dual support system of 80mm wide elastic webbing and sinuous spring grid to support seat cushions filled with high-resilience polyurethane foam topped with a down blend, wrapped in removable box-style covers for easy cleaning. Back cushions contain high-resilience foam wrapped in polyester fiber, while the integrated shelf features a matte walnut veneer over MDF core with a front open storage compartment. The 220mm thick seat cushions deliver balanced support, with upholstery tested to 30000 Martindale abrasion cycles for long-term regular use. The sofa accommodates four users, with a per-seat static load capacity of 150kg. The extended chaise supports reclined positioning for extended viewing, the open shelf compartment stores small items like magazines and remote controls within arm’s reach, and the under-sofa clearance allows standard robot vacuums to access the area beneath the frame. It is well suited for large open-plan living rooms with sufficient wall clearance, contemporary residential interiors aligned with Italian minimalist, wabi-sabi, or modern neutral palettes, high-end penthouse and villa lounges, executive reception spaces, open loft apartments, and dedicated media rooms. For procurement, note the product ships in two cartons, requires 40 minutes of on-site assembly, and verify the fixed right-hand chaise orientation matches intended space layout before purchase, as the configuration is not reversible.

Off-White Woven Fabric L-Shaped Sectional Sofa with Integrated Walnut Side Shelf Specifications
