PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	3820 × 1650 × 850 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total product weight	168 kg
Recommended total static load capacity	480 kg
Seat cushion indentation load deflection (ILD)	38
Seat foam density	35 kg/m³
Back foam density	28 kg/m³
Seating capacity	6
Fabric abrasion resistance (Martindale)	45000 cycles
Expected structural warranty period	5 years
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Upholstery fabric	Olive green textured bouclé-style polyester fabric
Seat cushion core	High-resilience polyurethane foam wrapped in polyester batting
Back cushion core	Medium-density polyurethane foam with soft fiber wrap
Internal frame	Kiln-dried solid pine wood with plywood reinforcement
Sofa base support	Interlocking hardwood webbing and sinuous spring suspension
Side table top	Matte dark brown composite wood panel with rounded edge trim
Side table legs	Solid cylindrical matte black hardwood legs
Module connection hardware	Zinc-plated steel alligator clips between adjacent seat modules
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg
Reference Upholstery Color Count	Recommended 8fabric/leather color options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular configuration	6 independent upholstered segments that lock together to form a gently curved layout
Chaise lounge extension	Integrated extended segment on the right end supports full leg rest for reclined seating
Integrated side table	Notched left-end table sits flush with the first seat module for holding drinks, devices or decor
Armless open layout	No protruding armrests along entire seating length allows flexible seating from all sides
Low-profile zero-tilt base	Nearly floor-hugging base eliminates visible support legs for a streamlined modern silhouette
Fabric stain resistance	Tight woven fabric surface supports spot cleaning with mild upholstery detergent
Foam resilience	Seat foam rebounds to original shape within 3 seconds after load removal to prevent permanent sagging
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Modern open-plan living room	Curved layout creates a conversational seating zone for large residential spaces
High-end lounge waiting area	Plush low-profile design fits premium office or hospitality reception spaces
Open-concept loft apartment	Low floor-sitting silhouette complements minimalist interior design schemes
Residential media room	Spacious multi-seat layout supports group viewing with flexible seating positions
Recommended pairings	Pair with low-profile round coffee tables to complement the sofa’s soft rounded edges

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture seating strength standard	EN 12520:2015
Upholstered furniture flammability standard	EN 1021:2014
Furniture surface emission standard	EN 16516:2017

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

Upholstered furniture safety standard	GB/T 3324
Upholstered furniture soft covering standard	GB/T 2012
Furniture formaldehyde emission limit	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. Upholstered furniture safety standard: GB/T 3324;
2. Upholstered furniture soft covering standard: GB/T 2012;
3. Furniture formaldehyde emission limit: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · CS-OF-382

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · CS-OF-382

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · CS-OF-382Open Export Tool

Quick Actions

Post an RFQ

Product Description

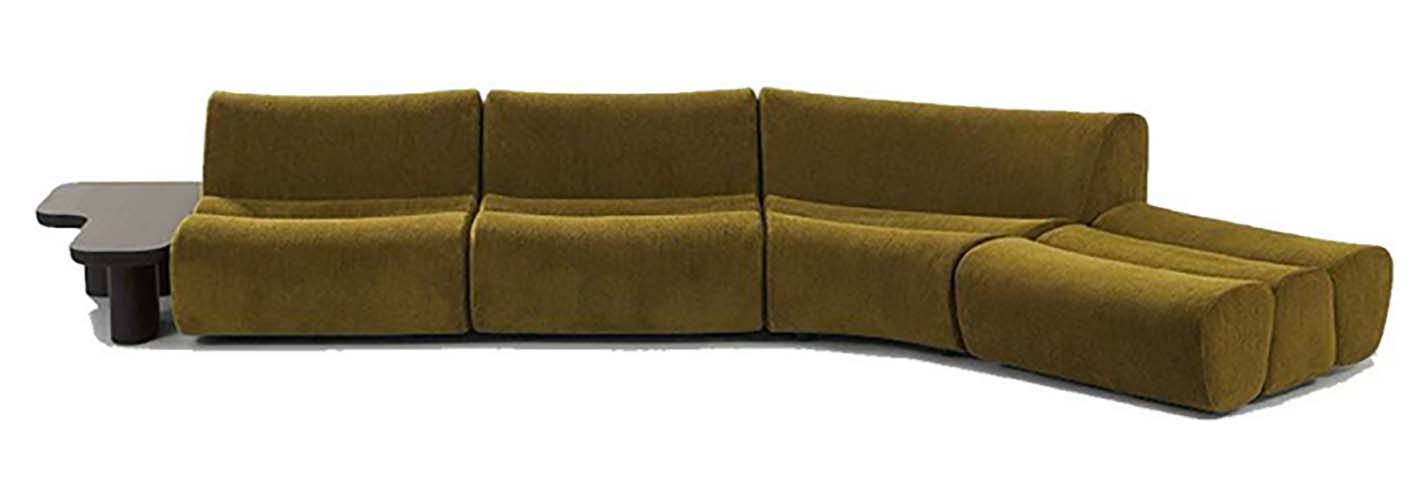

The Modular Curved Sectional Sofa with Attached Side Table, model CS-OF-382, carries a streamlined low-profile silhouette formed by six independent armless upholstered segments that lock together to create a gentle continuous curve, with zero protruding armrests along the full seating length to enable open access from all sides. An integrated extended chaise segment sits on the right end to support full leg rest for reclined seating, while a flush-mounted notched side table anchors the left end to hold drinks, personal devices, or display decor without interrupting the sofa’s smooth rounded lines. The sofa rests on a near floor-hugging base that hides visible support legs for a clean modern aesthetic. Its internal frame is constructed from kiln-dried solid pine with plywood reinforcement, supported by interlocking hardwood webbing and sinuous spring suspension for consistent seating support. Upholstery uses olive green textured bouclé-style polyester fabric, with high-resilience polyurethane foam wrapped in polyester batting forming seat cushions, and medium-density polyurethane foam with soft fiber wrap forming back cushions; the seat foam rebounds to its original shape within three seconds after load removal to prevent permanent sagging, and the tight woven fabric surface supports easy spot cleaning with mild upholstery detergent. The integrated side table features a matte dark brown composite wood top with rounded edge trim, held up by cylindrical matte black solid hardwood legs, while adjacent modules connect via zinc-plated steel alligator clips for stable assembly. With seating capacity for six people, the sofa suits a range of residential and commercial spaces: it creates an intimate conversational seating zone in large modern open-plan living rooms, complements minimalist aesthetics in open-concept loft apartments, accommodates group viewing in residential media rooms, and fits the plush, polished look required for high-end office or hospitality lounge waiting areas. It pairs seamlessly with low-profile round coffee tables to echo its soft curved forms. For procurement planning, note that each set ships across two cartons, with an assembly time of 40 minutes per unit. The unbranded design supports flexible customization of surrounding decor without conflicting with established brand identity schemes, and its durable fabric construction is suited for regular use in high-traffic shared spaces.

Modular Curved Sectional Sofa with Attached Side Table Specifications
