PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2830 × 2110 × 690 mm
Overall assembled dimensions	2830 x 2110 x 690 mm
Single seating module width	850 mm
Double-layer seat cushion thickness	240 mm
Stacked cylindrical bolster backrest height	450 mm
Seat height from floor	240 mm
Individual seating module depth	900 mm
Throw pillow size	450 x 450 mm
Open corner pit clearance between modules	800 mm
Upholstered base thickness	240 mm
Cylindrical bolster diameter	220 mm
Seat Cushion Thickness	180 mm
Back Cushion Thickness	160 mm
Leg Height / Floor Clearance	160 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Per-seat static weight capacity	150 kg
Overall sofa static weight capacity	750 kg
Seat foam density	40 kg/m³
Foam rebound rate	60%
Velvet upholstery abrasion resistance	30000 Martindale cycles
Seat cushion long-term sag resistance	3 mm
Modular connector shear strength	200 N
Anti-slip base coefficient of friction	0.8
Seat Foam Density / Rebound	40 kg/m³ / 60%
Upholstery Abrasion Reference	Fabric 60000 cycles; leather-class cover 1.4 mm

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Rose-colored seating upholstery	280gsm matte velvet fabric
Cream-colored seating upholstery	350gsm faux sherpa/faux shearling fabric
Internal support frame	15mm thick plywood frame
Seat cushion core	Multi-layer high-density polyurethane foam
Bolster backrest fill	Blended polyester fiber wrap over foam core
Throw pillow fill	100% blown polyester fiberfill
Bottom base layer	Anti-slip non-woven polyester fabric
Cushion covers	Removable zippered fabric covers
Modular connecting hardware	Heavy-duty plastic clip connectors
Timber Frame Section / Moisture	Primary section ≥30 × 50 mm; recommended moisture 12%
Spring / Webbing Specification	Sinuous spring wire 4 mm; elastic webbing 70 mm wide
Leg Connector Specification	Reference M8-M10 with at least 1 mechanical fixing per leg

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Modular reconfiguration	Freestanding clips allow rearrangement into linear, L-shaped, or open pit layouts
Backrest adjustability	Stacked cylindrical bolsters can be repositioned to change back support angle
Cushion maintenance	Zippered removable covers allow spot cleaning or professional laundering
Floor protection	Full anti-slip fabric base prevents scratches on hard flooring and unwanted sliding
Seating capacity	5 individual adult seating positions in the pictured open configuration
Lounging function	Open central pit area supports cross-legged or reclined floor-style seating
Cushion support	Double-layer seat construction prevents bottoming out during extended sitting
Cushion Service Configuration	Recommended 2removable/replaceable cushion methods

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Number of shipping cartons	3 cartons
Largest carton dimensions	950 x 900 x 500 mm
Total shipping gross weight	115 kg
Total shipment volume	1.28 CBM
40HQ container loading quantity	52 units
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Module Carton Dimensions	2200× 1050× 850 mm
Reference Packaging Volume	1.8 m³/item
Reference Packaged Gross Weight	110 kg/item

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential living room lounge	Low-profile casual seating for modern minimalist, bohemian or relaxed home interiors
Open-concept loft or studio space	Flexible modular layout adapts to changing space configurations in small or open floor plans
Casual lounge or co-working break area	Grounded relaxed seating supports informal collaboration in creative office spaces
Youth or game room seating	Soft, durable low profile is suitable for casual recreational use and floor-level activities
Small apartment urban living	Legless compact design creates visual lightness suitable for tight residential spaces
Media room or home theater	Deep cushioning and low profile supports relaxed reclining during media viewing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Applicable standard for domestic seating: specifies strength, durability and stability requirements for sofas
EN 1021-1:2014	Applicable upholstery flammability standard: covers cigarette ignition resistance for residential furniture

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

ANSI/BIFMA X5.4-2020	Applicable performance standard for lounge seating: covers static load, impact and cyclic durability for public/lounge use
ANSI/BIFMA e3-2019	Applicable sustainability standard: provides guidelines for furniture material content and emissions
ANSI/BIFMA X7.1-2011	Applicable VOC emission standard: specifies formaldehyde and chemical emission limits for indoor furniture

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 1952.1-2012	Applicable standard for upholstered sofas: specifies durability, safety and dimensional requirements for residential seating
GB 18401-2010	Applicable textile safety standard: requires formaldehyde and pH limits for direct skin contact upholstery fabrics
GB/T 3324-2017	Applicable wood furniture standard: specifies plywood frame strength and moisture content limits

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 1952.1-2012: Applicable standard for upholstered sofas: specifies durability, safety and dimensional requirements for residential seating;
2. GB 18401-2010: Applicable textile safety standard: requires formaldehyde and pH limits for direct skin contact upholstery fabrics;
3. GB/T 3324-2017: Applicable wood furniture standard: specifies plywood frame strength and moisture content limits;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · FLR-SEC-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · FLR-SEC-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · FLR-SEC-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

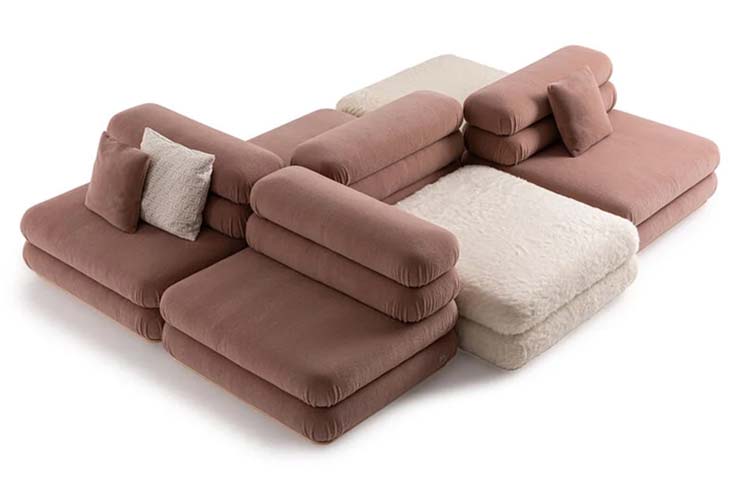

The Low-Profile Armless Modular Floor Pit Sectional Sofa, model FLR-SEC-001, offers a laid-back, versatile seating solution defined by its legless, ground-resting form and balanced two-tone aesthetic. Upholstered in a mix of dusty rose matte velvet and cream faux sherpa, the set features soft, rounded edges without protruding arms, creating an open, inviting silhouette. When assembled in its standard open pit configuration, it holds five individual adult seating positions, with an 800mm open central clearance that forms a sunken-style lounging space. Stacked cylindrical bolster backrests sit along the outer edges of the seating modules, paired with 450mm square matching throw pillows for cohesive visual appeal. Built for regular daily use, the sofa’s internal structure relies on a 15mm thick plywood frame, supporting multi-layer high-density polyurethane foam seat cushions with a 40 kg/m³ density, wrapped in removable zippered fabric covers. The 240mm thick double-layer seat construction resists bottoming out during extended sitting, with long-term sag measured at 3mm under regular use, and a 60% foam rebound rate for consistent support. The dusty rose velvet upholstery delivers 30000 Martindale cycles of abrasion resistance, while the cream faux sherpa sections add soft textural contrast. Bolster backrests use a foam core wrapped in blended polyester fiber, and throw pillows are filled with 100% blown polyester fiberfill. A full anti-slip non-woven polyester base prevents unwanted sliding and protects hard flooring from scratches, while heavy-duty plastic clip connectors hold individual modules securely in place, with a 200N shear strength to withstand regular reconfiguration. Functionality is centered on flexible, low-fuss use: the freestanding clip system allows rearrangement into linear, L-shaped, or open pit layouts to match changing spatial needs, and the stacked cylindrical bolsters can be repositioned to adjust back support angle for different lounging positions. Removable zippered cushion covers support spot cleaning or professional laundering for simplified upkeep, while the open central pit accommodates cross-legged or reclined floor-style seating alongside standard upright use. Each seat supports a 150kg static weight capacity, for a total 750kg static weight capacity across the full set. This sofa fits a wide range of casual spaces, including residential living rooms styled for modern minimalist, bohemian, or relaxed home aesthetics, open-concept lofts and studio apartments where flexible layouts maximize usable space, creative co-working break areas for informal collaboration, youth and game rooms for floor-level recreational activities, small urban apartments where its legless compact design creates visual lightness in tight footprints, and home theaters or media rooms where deep cushioning supports extended reclining during viewing. For procurement, note the full set ships across 3 cartons, with a total gross weight of 115kg and total shipment volume of 1.28 CBM; the largest carton measures 950 x 900 x 500 mm, and a 40HQ container can hold 52 units, making it scalable for both residential and light commercial project orders. Plan for assembly of individual modules on site, and select layout configurations during installation to match specific space dimensions and use needs.

Low-Profile Armless Modular Floor Pit Sectional Sofa Specifications
