Automatic mm / inch conversion · Core engineering specifications
| Overall footprint | 3800 x 1750 x 750 mm | |
|---|---|---|
| Seat height | 420 mm | |
| Seat depth per module | 580 mm | |

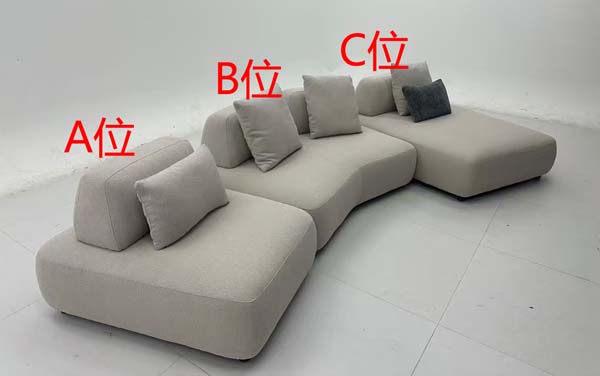

| Chaise module length (A/C positions) | 1600 mm | |
| Curved middle module length (B position) | 1200 mm | |
| Seat cushion thickness | 220 mm | |
| Back cushion thickness | 180 mm | |
| Hidden support foot height | 30 mm | |
| Module connection overlap | 50 mm | |
| Throw pillow size | 450 x 450 mm | |
| Armrest height above seat | 0 mm | |
| Leg Height / Floor Clearance | 160 mm |
Net weight / load capacity / users / durability
| Total static load capacity | 600 kg | |
|---|---|---|
| Total product weight | 160 kg | |
| Seat foam density | 35D | |
| Foam rebound rate | 60% | |
| Fabric abrasion resistance | 30000 cycles | |
| Recommended number of users | 5 | |
| Total assembled product weight | 160 kg | |
| Seat foam rebound rate | 60% | |
| Upholstery fabric abrasion resistance | 30000 cycles | |
| Recommended maximum occupancy | 5 people |
Core acceptance fields · Panels / hardware / frame / upholstery
| Internal frame | Kiln-dried solid pine wood, 30mm section thickness | |
|---|---|---|
| Seat suspension | 70mm wide elastic webbing, 80mm spacing | |
| Seat fill | 35D high-density high-resilience polyurethane foam | |
| Back cushion fill | Mix of 30D foam and 3D hollow fiber fill | |
| Upholstery fabric | 380gsm light gray matte woven linen-look polyester | |
| Support feet | Black matte polypropylene hidden low-profile glides | |
| Module connectors | Heavy-duty zinc-plated steel interlocking clips | |
| Throw pillow covers | Same light gray woven fabric with removable zipper closure | |
| Internal load-bearing frame | Kiln-dried solid pine wood, 30mm section thickness | |
| Seat suspension system | 70mm wide elastic webbing, 80mm parallel spacing | |
| Seat cushion fill | 35D high-density high-resilience polyurethane foam | |
| Main upholstery fabric | 380gsm light gray matte woven linen-look polyester |
Adjustment / rotation / tilt / mobility / storage features
| Modular configuration | 3 independent connectable segments, reconfigurable layout | |
|---|---|---|
| Cushion design | Loose removable back and seat cushions for easy repositioning | |
| Chaise function | Two extended end modules support full reclined lounging on both sides | |
| Cover maintenance | Removable zippered cushion covers for spot cleaning or washing | |
| Floor protection | Hidden plastic glides prevent scuffing on hard flooring surfaces | |
| Assembly requirement | Modules connect via integrated clips with no additional hardware needed | |
| Modular layout adjustment | 3 independent interlockable segments for custom reconfiguration | |
| Cushion positioning | Loose removable seat and back cushions for adjustable comfort | |
| Dual chaise lounging | Two extended end modules support full reclined postures on both sides | |
| Cover maintenance access | Zippered removable cushion covers for spot cleaning or laundering | |
| Hard floor protection | Hidden polypropylene glides prevent scuffing on wood and tile surfaces | |
| Tool-free assembly | Modules connect via integrated clips without additional hardware |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Module Carton Dimensions | 2200× 1050× 850 mm | |
| Reference Packaging Volume | 1.8 m³/item | |
| Reference Packaged Gross Weight | 110 kg/item |
Recommended spaces / users / usage modes
| Residential living room | Suitable for open-plan large living rooms as statement lounge seating | |
|---|---|---|
| Luxury villa common area | Ideal for high-end residential open lounge spaces with modern minimalist decor | |
| Hotel lobby lounge | Appropriate for boutique hotel public seating areas with soft casual layout | |
| Design showroom display | Suitable for furniture exhibition and interior design showcase spaces | |
| High-rise apartment open plan | Fits spacious modern apartments with open-concept living and entertaining zones | |
| Large residential living room | Suitable for open-plan living rooms as primary curved lounge seating | |
| Luxury villa common lounge | Ideal for high-end residential open lounge areas with modern minimalist decor | |
| Boutique hotel lobby seating | Appropriate for boutique hotel public waiting and lounge zones |
EU Market Access Requirements* EN Standards
| Upholstered furniture strength | EN 1725:1998 | |
|---|---|---|
| Formaldehyde emission | EN 13986:2004 | |
| Domestic sofa strength and stability | EN 1725:1998 | |
| Wood-based panel formaldehyde emission | EN 13986:2004 |
Standards applicable to China-market projects
| Upholstered furniture safety | GB 17927 | |
|---|---|---|
| Sofa dimensional tolerance | GB/T 3324 | |
| Foam performance | GB/T 10802 | |
| Upholstered furniture flame safety | GB 17927 | |
| Wooden furniture dimensional tolerance | GB/T 3324 | |
| Flexible foam performance | GB/T 10802 |
This product must meet the following technical requirements: 1. Upholstered furniture safety: GB 17927; 2. Sofa dimensional tolerance: GB/T 3324; 3. Foam performance: GB/T 10802; 4. Upholstered furniture flame safety: GB 17927; 5. Wooden furniture dimensional tolerance: GB/T 3324; 6. Flexible foam performance: GB/T 10802; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
