Automatic mm / inch conversion · Core engineering specifications
| Overall table dimensions | 1020 x 1020 x 720 mm | |
|---|---|---|
| Central table umbrella hole diameter | 60 mm | |
| Chair overall dimensions | 580 x 580 x 953 mm | |
| Chair seat height above ground | 460 mm | |
| Chair seat usable area | 500 x 500 mm | |
| Chair backrest height above seat | 493 mm | |
| Armrest height above seat | 200 mm | |
| Cushion thickness | 50 mm | |
| Leg footprint spread per chair | 500 x 500 mm | |
| Table apron clearance under tabletop | 650 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Full set total net weight | 95 kg | |
|---|---|---|
| Single chair static weight capacity | 180 kg | |
| Tabletop static weight capacity | 91 kg | |
| Powder coating salt spray resistance | 1000 hours | |
| Outdoor fabric UV fade resistance | 500 hours | |
| Seating capacity | 4 adults | |
| Cushion water repellency rating | Class 4 | |
| Frame warranty period | 3 years | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery

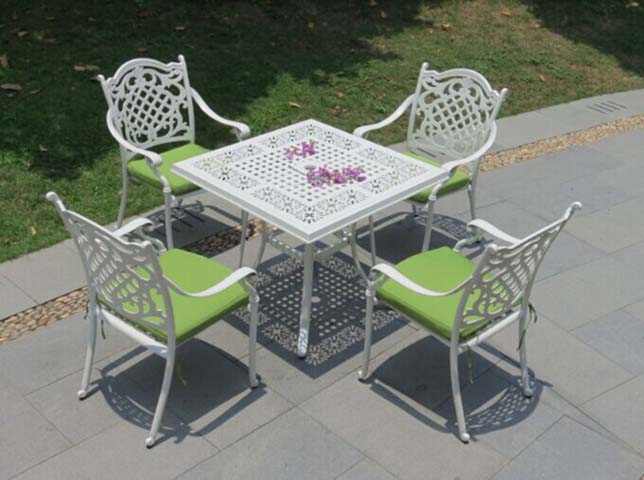

| Table and chair frame | Cast aluminum alloy with white outdoor-grade powder coating | |
|---|---|---|
| Cushion cover fabric | Solution-dyed polyester outdoor performance fabric | |
| Cushion core | High-density polyurethane foam with drainage holes | |
| Assembly hardware | 304 stainless steel bolts and nuts | |
| Foot levelers | Reinforced nylon adjustable pads | |
| Tabletop construction | One-piece cast aluminum lattice panel with raised rolled edge | |
| Chair backrests | Cast aluminum lattice openwork panels with ornate scroll detailing | |
| Armrests | Curved integrated cast aluminum armrests with smooth rounded edges | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Central umbrella hole | Accommodates standard patio umbrella poles with removable cap | |
|---|---|---|
| Adjustable foot levelers | Threaded design on each leg adjusts 10mm vertical travel | |
| Cushion fastening system | Fabric ties at each cushion corner secure pads to chair frames | |
| Knock-down assembly | All components flat-packed for shipment with included hex key hardware | |
| Weather-resistant design | Open lattice construction allows air flow and water drainage | |
| Stackable chair storage | Chairs stack to 4 units high for off-season storage | |
| Table underframe cross bracing | Welded aluminum support bars connect all four legs | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
| Residential patio and deck use | Ideal for home backyards, garden terraces and balcony dining areas | |
|---|---|---|
| Hospitality outdoor seating | Suitable for café, bistro and boutique hotel al fresco dining areas | |
| Four-person casual dining configuration | Square table shape enables equal conversation access for all users | |
| Coastal installation suitability | Cast aluminum construction resists salt air corrosion better than steel frames | |
| Seasonal use in temperate climates | Can remain outdoors year-round in areas with light frost | |
| Umbrella-compatible setup | Central hole accepts standard market umbrellas for sun protection |
EU Market Access Requirements* EN Standards
| EN 581-1:2017 | Safety and structural strength requirements for outdoor seating and tables | |
|---|---|---|
| EN 581-2:2019 | Mechanical safety test methods for outdoor domestic and contract furniture |
US and Canada office-furniture standards
| ANSI/BIFMA X5.4-2022 | Structural durability standard applicable for outdoor lounge and dining seating |
|---|
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements applicable to metal outdoor dining furniture | |
|---|---|---|
| GB/T 17657-2013 | Surface coating adhesion and durability test method for metal furniture finishes | |
| GB 18584-2001 | Indoor decoration material limited harmful substances for wooden furniture, applicable for cushion foam testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements applicable to metal outdoor dining furniture; 2. GB/T 17657-2013: Surface coating adhesion and durability test method for metal furniture finishes; 3. GB 18584-2001: Indoor decoration material limited harmful substances for wooden furniture, applicable for cushion foam testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
