PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	2800 × 1400 × 1200 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total static desktop load	200 kg
Per-user desktop load	100 kg
Lifting speed	38 mm/s
Motor quantity	2 motors
Occupant capacity	2 persons
Minimum vertical stability clearance below feet	10 mm
Net weight range	130 kg
Frame static vertical overload reference	300 kg
Adjustment cycles before service inspection	10000 cycles
Reference Static Load	150 kg depending on category

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Work surface	25 mm light gray laminated wood-composite panel with sealed straight edge
Divider screen	30 mm gray soft-covered tackable panel with radiused top corners
Steel frame	Silver-gray powder-coated telescoping rectangular steel columns
Base feet	Rectangular powder-coated steel T-feet with floor glides
Cross beams	Steel rectangular support beams connect the two columns under each top
Cable grommets	Round plastic cable ports with removable caps, 80 mm diameter

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Electric height adjustment	Each workstation uses a two-column telescoping frame with 480 mm stroke from 720 mm to 1200 mm
Control interface	Front-edge up/down keypad controls desk height and supports synchronized column movement
Privacy division	Central 650 mm-high screen separates opposing users while retaining side access
Cable routing	Each position includes an 80 mm rear grommet for laptop and power cable pass-through

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Total packed volume	0.58 m3
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Open-plan office benching	Suits two-person back-to-back task clusters where privacy screening and cable management are required
Agile sit-stand workplace	Appropriate for hot-desk or project zones requiring 1200 mm working-height changes

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · SIT-STAND-B2B-2P-2800

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · SIT-STAND-B2B-2P-2800

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · SIT-STAND-B2B-2P-2800Open Export Tool

Quick Actions

Post an RFQ

Product Description

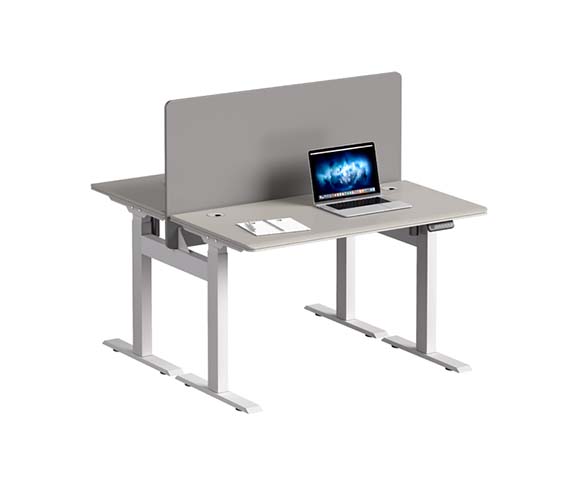

The Back-to-Back Two-Person Height-Adjustable Workstation with Central Divider Screen is a modern electric sit-stand solution configured for two occupants in opposing work positions. Its layout pairs two light gray laminate work surfaces with a central gray upholstered screen, creating a compact benching arrangement that separates users visually while preserving open access from the sides. The divider has a soft, tackable fabric-covered surface and radiused top corners, giving the workstation a refined commercial appearance and a practical area for pinning notes or reference material. Each work surface includes a round rear cable grommet with a removable cap, helping laptop, power, and charging cables pass neatly from the desktop to below the work surface. Construction combines laminated wood-composite tops, a steel support structure, telescoping rectangular lifting columns, and rectangular powder-coated steel T-feet with floor glides. The silver-gray frame and feet contrast with the black control hardware, while steel rectangular cross beams connect the columns beneath each top for a structured support platform. Each workstation position operates on a two-column frame powered by two motors, and the front-edge up/down keypad supports synchronized column movement. Electric adjustment spans a 480 mm stroke, moving the work surface from 720 mm to 1200 mm in height. The stated static desktop load is 200 kg in total, or 100 kg per user. This back-to-back configuration is well suited to open-plan offices, two-person task clusters, project zones, hot-desking areas, and other agile workplaces where users alternate between seated and standing tasks. The central privacy screen reduces direct visual distraction between facing users, while the side-open layout retains ease of movement and straightforward access. The integrated cable ports support tidy deployment of computers, monitors, docks, and personal devices in shared work settings. For procurement planning, the model is supplied unbranded and is shipped as one set across two cartons. The reference assembly time is 40 minutes per set, and purchasers should coordinate receiving, placement, and installation around the packaged weight and volume. Specifiers should also confirm ceiling or overhead clearance, floor protection, power access, and intended per-user equipment loads before ordering. Design teams should verify finish, screen appearance, and electrical connection requirements with the supplying dealer, as the product is presented without a named manufacturer program or additional service package.

Back-to-Back Two-Person Height-Adjustable Workstation with Central Divider Screen Specifications
