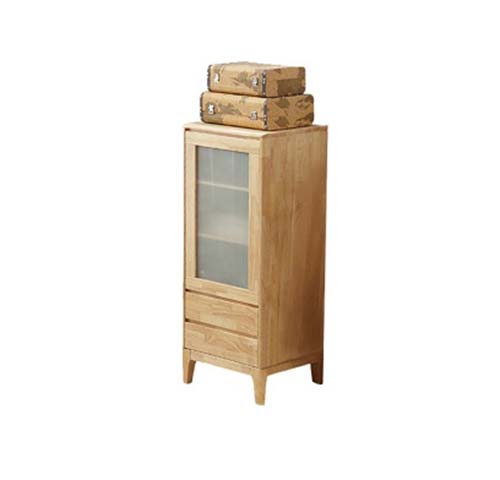

Product supplierSolid Wood Narrow Display Cabinet with Frosted Glass Door and Two Drawers, 18mm thick solid oak with clear natural matte finish
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 450 × 380 × 1200 mm | |
|---|---|---|
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net product weight | 28 kg | |
|---|---|---|
| Top surface static load capacity | 50 kg | |
| Door hinge cycle rating | 50000 open/close cycles | |
| Drawer slide cycle rating | 30000 open/close cycles | |
| Top surface load area | 450 x 380 mm | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points | |
| Recommended Procurement Warranty | Carcass 5 years; hardware 3 years; finish 2 years |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Main cabinet frame | 18mm thick solid oak with clear natural matte finish | |
|---|---|---|
| Door panel | 5mm frosted semi-opaque tempered glass | |
| Internal shelves | 15mm thick solid oak, fixed position | |
| Drawer fronts | 18mm solid oak, matching frame grain | |
| Drawer boxes | 12mm thick hardwood plywood with dovetail joinery | |
| Support legs | 25mm thick solid oak, tapered angled design | |
| Door hardware | Brushed nickel concealed soft-close hinges | |
| Drawer slides | Side-mounted wooden drawer guides | |
| Back panel | 8mm thick hardwood plywood, fixed with nails | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Upper storage access | Single hinged left-opening door with magnetic catch, encloses 3 tiers | |
|---|---|---|
| Drawer storage | Two full-extension stacked drawers for concealed small item storage | |
| Display function | Frosted glass door softens contents visibility while blocking dust | |
| Elevated base | 150mm high tapered legs enable floor cleaning access below cabinet | |
| Fixed shelf configuration | Two permanent internal shelves divide upper space into 3 equal compartments | |
| Top surface utility | Flat finished top supports display of decor items, books or small storage boxes | |
| Wall anchoring compatibility | Pre-drilled rear holes for anti-tip wall anchor installation | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Shipping carton dimensions | 1280 x 490 x 430 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Dining room side storage | Placed against dining wall to store tableware, linens and serving pieces | |
|---|---|---|
| Living room display cabinet | Positioned beside sofa to display decor, books and media accessories | |
| Bedroom narrow storage | Used as compact tall dresser for clothing, accessories and bedside items | |
| Entryway organizer | Installed in entry foyers to store keys, mail and outwear accessories | |
| Small home office storage | Placed beside desk to store documents, office supplies and reference books | |
| Cafe lounge storage | Used in boutique cafes to store cups, napkins and service supplies |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
No standards data is available for this market.
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
No standards data is available for this market.
Standardized tender description text
This product must meet the following technical requirements: 1. Technical standards and test reports must be supplied during tender or purchase confirmation; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
