| Submitted | Field | Original | Note / Status | |
|---|---|---|---|---|
No corrections yet. Use the flag at the end of a row to report an issue. | ||||
Automatic mm / inch conversion · Core engineering specifications

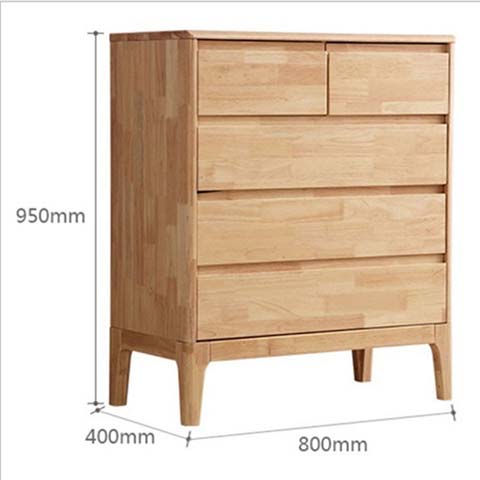

| Overall assembled dimensions | 800 x 400 x 950 mm | |
|---|---|---|
| Leg height from floor to carcass bottom | 170 mm | |
| Top small drawer internal dimensions | 370 x 350 x 110 mm | |
| Lower large drawer internal dimensions | 760 x 350 x 160 mm | |
| Carcass panel thickness | 18 mm | |
| Drawer front thickness | 20 mm | |
| Leg cross-section at floor contact | 35 x 35 mm | |
| Top surface overhang over carcass | 10 mm | |
| Kick space height under drawer bank | 150 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Product net weight | 75 kg | |
|---|---|---|
| Maximum static load per drawer | 25 kg | |
| Maximum static load on top surface | 75 kg | |
| Total internal storage volume | 156 L | |
| Drawer glide cycle rating | 50000 open/close cycles | |
| Recommended maximum user weight for top surface seating | 100 kg | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Carcass frame and drawer fronts | Kiln-dried solid rubberwood with natural matte clear lacquer | |
|---|---|---|
| Drawer side panels | 15mm thick solid paulownia wood | |
| Drawer bottom panels | 5mm thick plywood with wood veneer | |
| Back panel | 3mm thick hardboard | |
| Drawer glides | Cold-rolled steel three-section silent full-extension slides | |
| Legs | One-piece solid wood tapered angled legs | |
| Foot pads | 8mm thick anti-slip rubber pads | |
| Surface finish | Low-VOC matte NC lacquer, 2 coat application | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Drawer opening mechanism | Push-to-open release with no external handles | |
|---|---|---|
| Drawer extension travel | 350 mm | |
| Drawer safety feature | Integrated anti-tip stop to prevent full drawer pull-out | |
| Anti-tip wall anchor | Included steel wall anchor bracket for installation | |
| Assembly requirement | Knock-down flat pack assembly with cam-lock joinery | |
| Surface maintenance | Stain-resistant lacquer finish allowing wipe-clean with dry or damp cloth | |
| Leveling adjustment | Fixed height with non-adjustable rubber foot pads | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Shipping carton dimensions | 870 x 470 x 180 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
| Bedroom clothing storage | Suits master or guest bedrooms for folded garments, accessories and linen storage | |
|---|---|---|
| Living room media accessory storage | Fits Scandi or minimalist living rooms for storing media, blankets and household items | |
| Entryway storage | Works in entryways for gloves, scarves, keys and everyday carry items | |
| Home office document storage | Suitable for home offices to store files, stationery and office supplies | |
| Recommended pairing | Matches Nordic light solid wood bed frames, nightstands and wardrobes for coordinated room sets |
EU Market Access Requirements* EN Standards
| EN 71-3:2019 | Safety of toys – Migration of certain elements, applicable for surface finish heavy metal limits for residential furniture | |
|---|---|---|
| EN 14749:2016 | Domestic and kitchen storage units and worktops – Safety requirements and test methods, applicable for structural stability |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for dimensional and structuralAcceptance inspection | |
|---|---|---|
| GB 18584-2001 | Indoor decorating and refurbishing materials – limit of harmful substances of wood based furniture, applicable for formaldehyde and VOC testing |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for dimensional and structuralAcceptance inspection; 2. GB 18584-2001: Indoor decorating and refurbishing materials – limit of harmful substances of wood based furniture, applicable for formaldehyde and VOC testing; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
