Automatic mm / inch conversion · Core engineering specifications

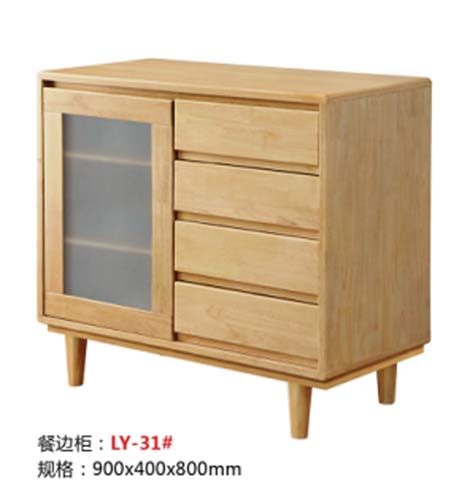

| Overall assembled dimensions | 900 x 400 x 800 mm | |
|---|---|---|
| Leg height | 150 mm | |
| Individual drawer internal height | 170 mm | |
| Glass door compartment width | 390 mm | |
| Drawer section width | 480 mm | |
| Top panel thickness | 25 mm | |
| Carcass panel thickness | 18 mm | |
| Frosted glass door insert thickness | 5 mm | |
| Adjustable shelf depth in glass compartment | 350 mm | |
| Floor clearance under cabinet base | 150 mm | |
| Edge banding thickness | 1 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
Net weight / load capacity / users / durability
| Top surface static load capacity | 55 kg | |
|---|---|---|
| Unit gross weight | 45 kg | |
| Recommended maximum user weight for top surface use | 55 kg | |
| Hinge open/close cycle rating | 80000 cycles | |
| Drawer slide open/close cycle rating | 50000 cycles | |
| Limited residential warranty | 3 years | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
Core acceptance fields · Panels / hardware / frame / upholstery
| Cabinet frame and panels | Light oak veneer over engineered wood core | |
|---|---|---|
| Support legs | Solid natural oak, tapered cylindrical finish | |
| Left door insert | Frosted tempered safety glass, semi-opaque finish | |
| Top surface | Solid oak edge with oak veneer top panel, matte natural lacquer | |
| Drawer fronts | Oak veneer over MDF core, recessed gap handleless design | |
| Internal adjustable shelves | 18mm thick engineered wood with oak veneer finish | |
| Back panel | 3mm thick hardboard with oak grain finish | |
| Hardware | Cold rolled steel concealed hinges and ball-bearing drawer slides | |
| Door frame | Solid oak framing around frosted glass insert | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Left door storage | Single hinged door with 2 adjustable-height shelves, 110 degree opening | |
|---|---|---|
| Right drawer storage | 4 stacked equal-size drawers with ball-bearing slides, recessed pull access | |
| Anti-tip safety | 1 wall anchor anti-tip bracket included for secure installation | |
| Shelf adjustment | 3-position pin holes allow shelf height adjustment in 64mm increments | |
| Drawer operation | Undermount ball-bearing slides allow full extension with smooth glide | |
| Surface use | Flat full-width top supports display of dining ware, decor, or small appliances | |
| Door closure | Soft-close concealed hinges prevent slamming during door closure | |
| Leveling adjustment | 4 feet have minor height adjustment to compensate for uneven floors | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
Verified carton / gross weight / assembly / loading data
| Shipping carton dimensions | 980 x 480 x 190 mm | |
|---|---|---|
| Reference Package Count | 1 set / 2 cartons | |
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
Recommended spaces / users / usage modes
| Dining room use | Placed against dining wall for storage of tableware, linens and serving pieces | |
|---|---|---|
| Living room use | Used as a small buffet for media accessories, books and display decor | |
| Small apartment use | 900mm compact width fits narrow entryways or studio apartment kitchens | |
| Entryway use | Positioned at entry for shoe care items, keys and entryway storage | |
| Home office use | Used as a printer and supply storage cabinet next to a home office desk | |
| Kitchen auxiliary use | Placed in small kitchens as extra storage for dry goods and small appliances |
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Applicable standard for domestic kitchen and bathroom storage units safety and performance | |
|---|---|---|
| EN 12521:2015 | Applicable standard for domestic furniture strength, durability and stability requirements | |
| EN 13722:2004 | Applicable standard for furniture surface cold liquid resistance testing for finished panels | |
| EN 71-3:2019 | Applicable standard for migration of certain elements in furniture accessible to children |
Standards applicable to China-market projects
| GB/T 3324-2017 | Applicable standard for wooden furniture general technical requirements for domestic market | |
|---|---|---|
| GB 18584-2001 | Applicable standard for indoor decoration material wood furniture formaldehyde emission limits | |
| GB/T 4893.4-2013 | Applicable standard for furniture surface wear resistance testing for finished wood surfaces | |
| GB/T 9969-2008 | Applicable standard for industrial product use instruction documentation requirements |
This product must meet the following technical requirements: 1. GB/T 3324-2017: Applicable standard for wooden furniture general technical requirements for domestic market; 2. GB 18584-2001: Applicable standard for indoor decoration material wood furniture formaldehyde emission limits; 3. GB/T 4893.4-2013: Applicable standard for furniture surface wear resistance testing for finished wood surfaces; 4. GB/T 9969-2008: Applicable standard for industrial product use instruction documentation requirements; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
