PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	625 × 500 × 835 mm
Seat height	500 mm
Seat width	600 mm
Seat depth	500 mm
Seat cushion thickness	150 mm
Backrest height above seat	335 mm
Armrest height above seat	220 mm
Metal frame tube diameter	22 mm
Sled base front-to-rear length	500 mm
Sled base width between contact points	520 mm
Armrest pad length	200 mm
Backrest vertical seam length	300 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net product weight	15 kg
Static weight capacity	250 kg
Recommended user count	1 person
Seat foam density	45 kg/m³
Foam rebound rate	45%
Upholstery abrasion resistance	50000 Martindale cycles
Frame static load rating	300 kg
Seam stitch pitch	3 mm
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Frame structure	1.5mm thick powder-coated matte dark steel tubing
Backrest panel substrate	12mm thick molded plywood
Seat panel substrate	15mm thick laminated plywood
Upholstery surface	1.0mm thick matte light beige faux leather
Seat cushion fill	High-density polyurethane foam
Backrest padding fill	40mm thick medium-density polyurethane foam
Armrest pads	30mm thick foam wrapped in matching beige upholstery
Floor contact glides	Injection-molded nylon caps
Frame weld points	Full penetration welded joints at tube intersections
Upholstery edge treatment	Precision stitched matching-thread seams
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Base support	Fixed cantilever sled base with curved rear crossbar
Floor protection	Nylon glides on all four frame contact points
Back support	Contoured rounded upright back with center vertical seam
Arm support	Integrated padded armrests aligned to standard dining table height
Seating function	Fixed non-reclining, non-swivel seat
Stacking capability	Non-stackable design
Upholstery maintenance	Stain-resistant wipe-clean surface
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential dining rooms	Matches modern minimalist dining sets for everyday family meal use
Cafes and casual restaurants	Commercial-grade construction suitable for high-traffic food service
Open-plan kitchen islands	Sled base design fits neatly under standard counter-height dining surfaces
Hotel guest room seating	Neutral beige and black finish complements contemporary hotel interior schemes
Small meeting breakout areas	Compact footprint provides guest seating without swivel mechanisms
Home office visitor seating	Appropriate height for use alongside standard writing desks as guest seating
Recommended table clearance	Fits under tables with 720mm apron height for comfortable leg and arm room
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Applicable to strength, durability and safety requirements for domestic seating
EN 1022:2018	Applicable to stability testing for non-domestic and domestic seating
EN 13759:2001	Applicable to upholstered furniture seat flammability performance reference

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	Applicable to general technical requirements for metal furniture seating
GB 18584-2001	Applicable to limit of harmful substances in wooden furniture components
GB/T 19001-2016	General quality management system reference for furniture manufacturing

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: Applicable to general technical requirements for metal furniture seating;
2. GB 18584-2001: Applicable to limit of harmful substances in wooden furniture components;
3. GB/T 19001-2016: General quality management system reference for furniture manufacturing;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DCA-SLD-BGE-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DCA-SLD-BGE-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DCA-SLD-BGE-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

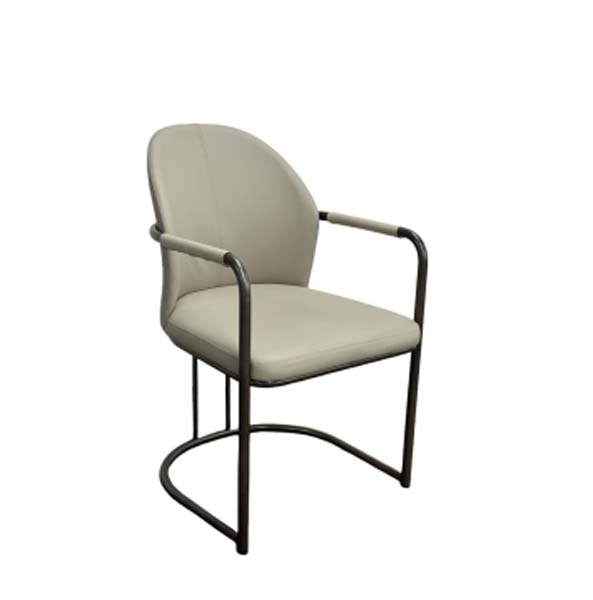

The Beige Upholstered Cantilever Sled Base Dining Armchair (model DCA-SLD-BGE-001, unbranded) is a streamlined, modern seating solution with clean, rounded lines and a balanced, understated visual profile. Its fixed cantilever sled base, built from curved matte dark steel tubing, features a smooth curved rear crossbar that lends a light, open silhouette, while the contoured, rounded upright backrest carries a subtle center vertical seam for tailored visual definition. Integrated padded armrests sit aligned to standard dining table height, and the matte light beige upholstery creates a soft, neutral contrast against the dark frame, fitting seamlessly into both coordinated and mixed furnishing layouts. Durable commercial-grade construction forms the core of the chair’s design. Its frame uses thick powder-coated matte dark steel tubing with full penetration welded joints at every tube intersection, finished with injection-molded nylon caps at all floor contact points to protect hard flooring surfaces. The seat rests on a thick laminated plywood substrate, topped with high-density polyurethane foam cushioning, while the contoured back is built on a molded plywood panel wrapped in medium-density foam padding. Armrests are padded with matching foam, and all padded surfaces are upholstered in thick matte light beige faux leather. The upholstery carries a stain-resistant, wipe-clean finish suited to regular use, and the static weight capacity supports safe use for a single occupant. The chair features a fixed, non-reclining, non-swivel seat with a non-stackable design, delivering stable, consistent seating without moving parts that can snag flooring or shift during regular use. It is well suited for a wide range of residential and commercial spaces: it pairs with modern minimalist dining sets for daily family meals in residential dining rooms, fits neatly under standard counter-height surfaces at open-plan kitchen islands, and stands up to high-traffic use in cafes and casual restaurants thanks to its robust build. Its neutral two-tone finish complements contemporary interior schemes for hotel guest room seating, its compact footprint makes it ideal for small meeting breakout areas, and its standard seat height works well as guest seating alongside standard writing desks in home offices. Procurement teams and buyers should note that each chair ships across two cartons, with an assembly time of 40 minutes per unit. The packaged set has a defined gross weight and carton volume, allowing for accurate freight and storage planning, with a documented load capacity for 20-foot general purpose containers at 85% space utilization. The wipe-clean, abrasion-resistant upholstery reduces long-term upkeep costs for high-traffic commercial deployments, while the fixed sled base eliminates the maintenance needs associated with swivel or reclining mechanisms. When planning layout spacing, teams should account for the chair’s overall footprint to ensure comfortable clearance around dining tables, counters, or desk surfaces.

Beige Upholstered Cantilever Sled Base Dining Armchair Specifications
