PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	640 × 580 × 910 mm
seat height	510 mm
seat width	520 mm
seat depth	510 mm
seat cushion thickness	110 mm
backrest height	380 mm
armrest height from floor	700 mm
front leg splay width	580 mm
rear leg splay depth	580 mm
open back cutout width	380 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

net weight per chair	15.9 kg
static weight capacity	154 kg
suitable dining table height	760 mm
foam density	45 kg/m³
foam rebound rate	60%
upholstery abrasion resistance	30000 cycles
frame static load resistance	200 kg
warranty period	1 year
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

main frame	Solid rubberwood with matte black finish
seat fill	High-density polyurethane foam
seat upholstery	Light beige breathable woven linen-blend fabric
leg feet	Non-marking plastic foot caps
seat support base	12mm thick plywood underlayment
frame joinery	Mortise and tenon wood joinery with reinforced hardware
backrest panel	18mm thick solid wood, matching black frame finish
armrest surface	Sanded smooth matte black wood, no sharp edges
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

seating position	Fixed upright posture optimized for dining use
seat cushion	Removable padded cushion for easy cleaning
arm support	Continuous wrap-around armrests for forearm support
floor protection	Non-marking feet prevent scuffing on hard floor surfaces
assembly requirement	Partial assembly required with included hardware
stacking capability	Non-stackable fixed frame design
cleaning method	Spot clean upholstery with mild detergent, wipe frame with dry cloth
color customization	Custom wood finish and upholstery options available
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

residential dining room	Pairs with standard height dining tables for everyday family meals
commercial cafe use	Suitable for casual dining outlets with light to medium traffic
hotel guest room seating	Works as desk or accent chair in boutique hotel room setups
restaurant booth seating supplement	Can be used as end chair or standalone seating in modern restaurants
home office guest seating	Provides fixed upright seating for short-term visitor use
recommended table pairing	Matches dining tables 760 mm high for correct arm clearance
floor type compatibility	Safe for wood, tile and laminate floors with non-marking foot caps
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12520:2015	Strength, durability and safety requirements for domestic seating
EN 1022:2018	Stability testing standard for domestic seating furniture
EN 16139:2013	Strength and durability for non-domestic seating, commercial use reference

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to solid wood frame
GB 18584-2001	Limit of harmful substances in wooden furniture, applicable for indoor use
GB/T 26706-2011	Upholstered furniture durability testing, applicable to padded seat

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to solid wood frame;
2. GB 18584-2001: Limit of harmful substances in wooden furniture, applicable for indoor use;
3. GB/T 26706-2011: Upholstered furniture durability testing, applicable to padded seat;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · DA-CW01-BK-BG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · DA-CW01-BK-BG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · DA-CW01-BK-BGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

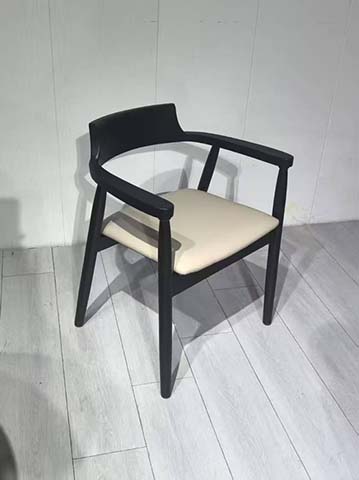

The Curved Wrap-Around Arm Dining Armchair (Model DA-CW01-BK-BG) is an unbranded public and residential seating solution defined by clean minimalist lines and a streamlined silhouette. It features a continuous curved wrap-around arm structure that flows seamlessly from the front legs up to the tapered solid wood backrest, creating a cohesive enclosed visual profile. The matte black solid wood frame contrasts gently with the soft light beige upholstered seat, balancing warm neutral tones for versatile design integration.
Constructed for long-term regular use, the frame is built from solid rubberwood joined with traditional mortise and tenon connections reinforced with durable hardware, finished in a smooth matte black coating with rounded, edge-free armrest surfaces. The seat rests on a layered plywood support base, padded with high-density polyurethane foam that delivers consistent support, and upholstered in breathable woven linen-blend fabric engineered to withstand repeated use. Non-marking plastic foot caps are fitted to each leg base to protect floor finishes.
Functional design elements support consistent, practical use across settings. The fixed upright seat angle is optimized for dining posture, with integrated wrap-around armrests positioned to provide stable forearm support during meals or short work sessions. The thick padded seat cushion is fully removable to simplify routine cleaning, with upholstery that responds well to spot cleaning with mild detergent, while the wood frame can be maintained with a simple dry cloth wipe. The chair requires partial assembly with included hardware, with a typical assembly time of 40 minutes per unit, and is not designed for stacking.
This chair is suited for a range of spaces: it pairs perfectly with 760mm high standard dining tables for residential dining rooms, functions as reliable guest seating in home offices, serves as light-to-medium traffic seating for casual cafes, works as a desk or accent chair in boutique hotel guest rooms, and acts as an end chair or standalone seating option to complement booth setups in modern restaurants. When planning procurement, buyers should note the fixed non-stackable design, the required partial assembly, and the 2-carton packaging per unit that supports efficient container loading for large-volume orders, with clear arm clearance when paired with the recommended table height.

Curved Wrap-Around Arm Dining Armchair with Beige Upholstered Seat Specifications
