Name: New Chinese Style Solid Wood Armchair with Brass Inlay
Brand: JUESHANGDA
SKU: C9BRAK

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 650 × 1070 mm
Seat height	450 mm
Seat surface dimensions	480 x 450 mm
Backrest total height	620 mm
Armrest height above seat	220 mm
Armrest length	380 mm
Leg cross-section diameter	35 mm
Foot stretcher height above floor	120 mm
Brass inlay diameter	50 mm
Back splat width	100 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended maximum static load	100 kg
Chair net weight	12 kg
Seat surface static load capacity	120 kg
Backrest lateral load resistance	50 kg
Applicable user maximum height	1850 mm
Design service life under domestic use	10 years
Surface scratch resistance rating	Grade 2
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%
Back Foam Density Reference	38 kg/m³
Upholstery Thickness / Abrasion Reference	1.4 mm / 50000 cycles

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main frame, legs and back rails	Solid hardwood, rounded edge profile, walnut-stained finish
Seat panel	18mm thick solid wood, recessed edge detail, matching walnut finish
Central back splat	Solid wood vertical panel, polished smooth surface, routed groove edge
Back decorative inlay	Polished brass round insert, radial geometric pattern, tarnish-resistant coating
Joinery components	Traditional mortise-tenon connections, reinforced wood dowels at frame joints
Surface finish	Water-based matte lacquer, low VOC, stain-resistant sealed coating
Structural stretchers	Solid wood cross and diagonal braces, connecting all four legs
Armrest rails	Bent solid wood rounded tubing, seamless corner transitions
Seat Internal Support Board Thickness	14 mm bent plywood or equivalent support board
Backrest Internal Frame Thickness	14 mm bent plywood/composite reinforced frame
Gas-lift Engineering Specification	Recommended Class 4; outer tube 50 mm; stroke 100 mm
Tilt Mechanism Plate Thickness	2.5 mm cold-rolled steel

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Seating posture support	Upright 95-degree back angle for formal dining, tea service and desk use
Arm support	Fixed integrated armrests with rounded edges to prevent arm pressure fatigue
Structural stability	Perimeter and diagonal stretchers eliminate leg wobble during regular use
Decorative detailing	Brass inlay serves as central visual accent without protruding sharp edges
Floor protection	Optional felt glides can be fitted to leg bases to prevent hard floor scratching
Use versatility	Fully assembled fixed structure without moving parts or adjustment mechanisms
Seat accessory compatibility	Fits 480x450mm removable fabric or leather cushions for added comfort
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential dining room	Serves as host or guest seating around rectangular or round dining tables for 6people
Home study or office	Used as desk chair for writing, reading and calligraphy work paired with 750mm height desks
Tea room or zen space	Functions as guest seating for tea ceremonies and casual reception in traditional style spaces
Hospitality venues	Used in private dining rooms, boutique hotel lobbies and club lounge waiting areas
Showroom and display	Pairs with matching new Chinese style coffee tables and consoles for furniture showroom display
Conference meeting spaces	Deployed around small conference tables for formal internal meetings in traditional-style offices
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

Furniture seating test methods for strength and durability	EN 1728:2012
Furniture chairs and stools safety requirements	EN 12520:2015
Furniture assessment of surface resistance to dry heat	EN 12722:2000

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

General technical requirement for wooden furniture	GB/T 3324
Furniture mechanical performance test for chairs and stools	GB/T 10357.3
Indoor decorating and refurbishing materials limit of harmful substances	GB 18584

Standardized tender description text

This product must meet the following technical requirements:
1. General technical requirement for wooden furniture: GB/T 3324;
2. Furniture mechanical performance test for chairs and stools: GB/T 10357.3;
3. Indoor decorating and refurbishing materials limit of harmful substances: GB 18584;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · NCS-WA-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · NCS-WA-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · NCS-WA-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

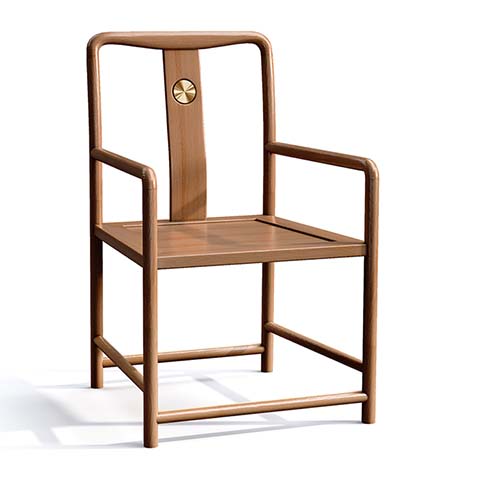

The JUESHANGDA model NCS-WA-001 is a new Chinese style solid wood armchair defined by clean, balanced lines that blend traditional design cues with understated contemporary refinement. Its four-leg fixed frame features integrated curved armrests with seamless rounded corners, a vertical central back splat, and a polished brass round inlay set into the back as a subtle, non-protruding focal point finished with a radial geometric pattern and tarnish-resistant coating. All wood components carry a walnut-stained, water-based matte lacquer finish that is low in VOC and sealed to resist stains, with rounded edge profiles across all touchpoints to soften visual lines and reduce contact discomfort. Constructed primarily from solid oak, the chair uses traditional mortise-tenon joinery reinforced with wood dowels at all frame joints, paired with cross and diagonal solid wood stretchers connecting all four legs to eliminate wobble during regular use. The 18mm thick solid wood seat features a recessed edge detail and matching walnut finish, supported internally by a bent plywood panel. Armrest rails are shaped from bent solid wood for smooth, continuous transitions, while all frame, leg and back rail components are milled from solid hardwood. The structure is fully assembled with no moving parts or adjustment mechanisms, and optional felt glides can be fitted to leg bases to prevent scratching on hard flooring surfaces. Engineered for upright, supported seating, the chair features a 95-degree back angle suited to formal dining, tea service and desk-based work, with fixed armrests contoured to reduce arm pressure fatigue during extended use. The non-upholstered seat is compatible with custom-fitted removable fabric or leather cushions for personalized comfort, without compromising the chair’s streamlined silhouette. This armchair suits a wide range of both residential and commercial spaces. In home settings, it works as host or guest seating around dining tables, as a desk chair for writing, reading or calligraphy in home studies when paired with standard height desks, or as guest seating in dedicated tea rooms and zen-style relaxation spaces. For commercial applications, it fits private dining rooms, boutique hotel lobbies, club lounge waiting areas, small conference spaces in traditional-styled offices, and furniture showrooms when paired with coordinating new Chinese style coffee tables and console units. Procurement teams and individual buyers should note the chair ships across two cartons per set, with packaged weight and dimensions aligned to standard LTL and parcel freight parameters, and an assembly time per unit. For high-traffic commercial installations, the fixed solid wood construction offers long-term durability for regular use, while the scratch-resistant surface finish supports routine maintenance. For soft flooring installations, felt glides are recommended to preserve surface integrity, and removable cushions may be sourced to match interior decor schemes for enhanced user comfort.

New Chinese Style Solid Wood Armchair with Brass Inlay Specifications
