PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1800 × 800 × 600 mm
Sintered stone tabletop thickness	20 mm
Embedded tea appliance cutout size	370 x 230 mm
Tea tray recess dimension	700 x 250 mm
Seating knee clearance height	480 mm
Base cabinet internal height	420 mm
Edge overhang on all sides	50 mm
Metal trim width	20 mm
Primary Component Thickness	40 mm according to load-bearing role
Hardware / Moving-part Clearance	5 mm operating clearance

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Tabletop static load capacity	200 kg
Tabletop heat resistance	1200 ℃
Tabletop scratch resistance grade	Level 5
Electric kettle boiling power	1500 W
Product net weight	120 kg
Recommended seating capacity	4 persons
Smart electric module service life	10000 cycles
Reference Static Load	150 kg depending on category
Moving-part Durability Reference	Acceptance target 50000 cycles
Recommended Procurement Warranty	Structure 5 years; hardware 3 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Tabletop panel	Grade A veined white sintered stone, polished finish
Base cabinet panels	18mm E1 grade wood composite with vertical brown wood veneer
Frame trim	1.2mm matte black carbon steel edge trim
Brewing appliances	Food-grade 304 stainless steel electric kettle and sterilizer pot
Tea tray insert	Black slatted natural stone tea drain tray
Internal hardware	Stainless steel hydraulic hinges and cabinet connectors
Seal and edge banding	PVC waterproof edge banding around all cutouts
Included tea set	Glazed light green ceramic teapot and 4 teacups
Primary Connector Specification	Reference M6-M10 with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Automatic water feeding function	Bottom-fill auto water pumping with water level sensing
Variable temperature control	4 preset temperature settings (80/85/90/100℃) for different tea types
Overflow safety shutoff	Auto power cut when water reaches maximum level to prevent spillage
Enclosed base storage	2 side cabinet compartments with soft-close doors
Integrated drainage system	Hidden drain tubing connecting tea tray to removable 10L waste bucket
Constant temperature holding	30-minute keep-warm function at set temperature after boiling
Cable management	Hidden internal channel for power cord routing to wall outlet
Reference Adjustment / Operating Range	100 mm or 120° where applicable

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Packaging Volume	0.8 m³/set
Reference Packaged Gross Weight	120 kg/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Office reception area	Placed in front of reception sofas for guest tea service
Executive lounge	Used in executive break areas for informal meetings over tea
Home living room	Functions as dual-purpose coffee and tea brewing table for residential use
Private tea room	Suitable for small commercial tea rooms with 4-person seating capacity
Conference breakout area	Placed in breakout zones for casual guest and employee hospitality

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 12521:2015	Safety and strength requirements for domestic tables
EN 60335-1:2012	Safety for household electrical appliances
EN 13722:2004	Furniture surface resistance to cold liquids

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture
GB 4706.1-2005	Safety requirements for household electrical appliances
GB 6566-2010	Radionuclide limit for building decoration stone materials
GB/T 4897-2015	Performance requirements for particleboard used in furniture

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture;
2. GB 4706.1-2005: Safety requirements for household electrical appliances;
3. GB 6566-2010: Radionuclide limit for building decoration stone materials;
4. GB/T 4897-2015: Performance requirements for particleboard used in furniture;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ITB-RC1800-WV

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ITB-RC1800-WV

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ITB-RC1800-WVOpen Export Tool

Quick Actions

Post an RFQ

Product Description

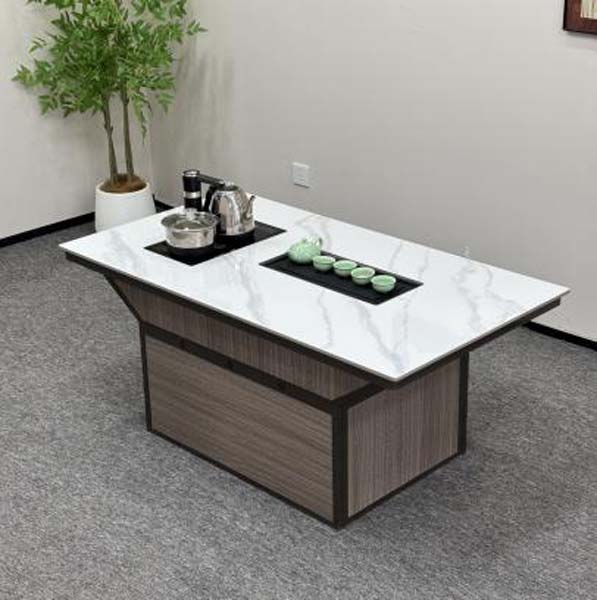

The Modern Integrated Electric Brewing Reception Tea Table (model ITB-RC1800-WV) is an unbranded, block pedestal-style public furniture piece designed for streamlined tea service across professional and residential settings. Its balanced, contemporary silhouette features a 1800 x 800 x 600 mm form with 50 mm overhang on all sides, framed by 20 mm wide matte black carbon steel trim that creates a crisp visual boundary between the tabletop and base. A 20 mm thick polished Grade A veined white sintered stone top hosts a recessed 700 x 250 mm black slatted natural stone tea drain tray and a 370 x 230 mm cutout for integrated brewing hardware, positioned to leave clear, uncluttered surface space for serving. The vertical brown wood-veneer composite base sits to deliver 480 mm of knee clearance for seated users, with clean lines that complement modern interior palettes.\n\nThe table is built for durable, high-frequency public use, with a sintered stone tabletop rated for 200 kg static load, 1200℃ heat resistance, and Level 5 scratch resistance to withstand daily wear from servingware, documents, and frequent contact. The base uses 18mm E1 grade wood composite panels with PVC waterproof edge banding around all cutouts to prevent moisture damage from tea spills, held together with stainless steel hydraulic hinges, M6-M10 cabinet connectors with at least 2 fixing points per major joint, and soft-close door hardware. Brewing components include food-grade 304 stainless steel electric kettle and sterilizer pot, paired with a glazed light green ceramic teapot and four teacups included with every set. The full unit weighs 120 kg, packed across 2 cartons for transport, with a 40-minute assembly time per set.\n\nCore functional design prioritizes low-effort, safe tea service: the system includes bottom-fill automatic water pumping with level sensing, four preset temperature controls calibrated for different tea varieties, a 30-minute keep-warm function at selected temperatures, and overflow safety shutoff that cuts power when water reaches maximum capacity to prevent spills. A hidden integrated drainage system routes water from the tea tray to a removable 10L waste bucket, while internal cable channels conceal power cords for a neat finished look. The base encloses two side storage compartments with 420 mm internal height for supplies, and the 1500 W electric module is rated for 10000 cycles of use. The table seats four people comfortably, suited for office reception areas positioned in front of guest sofas, executive lounges for informal meetings, residential living rooms as a dual coffee and tea table, small private tea rooms, and conference breakout zones for casual hospitality for guests and staff. For procurement, note that units are unbranded, shipped in two cartons with 0.8 m³ packaged volume per set, and require access to a standard wall power outlet adjacent to placement for operation.

Modern Integrated Electric Brewing Reception Tea Table Specifications
