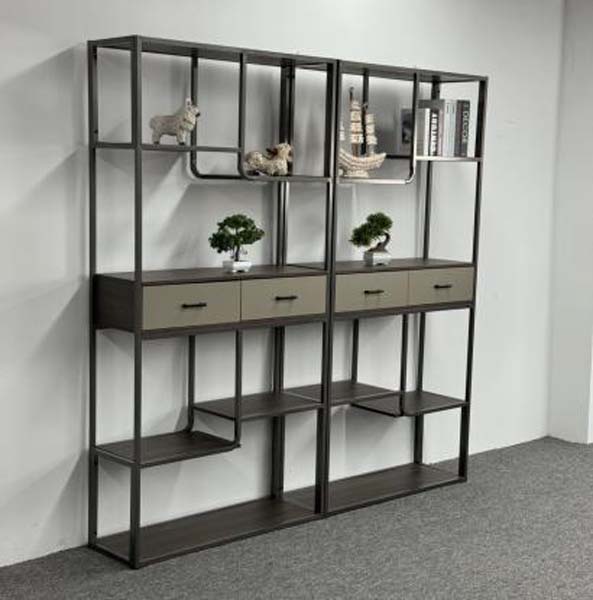

Product supplierIndustrial Asymmetric Open Display Etagere with Mid-Height 4-Drawer Bank, Powder-coated black carbon steel tubular frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2400 × 400 × 2000 mm | |
|---|---|---|
| Overall assembled dimensions | 2400 x 400 x 2000 mm | |
| Upper open cubby shelf clearance height | 350 mm | |
| Mid-height drawer bank external height | 200 mm | |
| Individual drawer internal dimensions | 520 x 340 x 120 mm | |
| Lower open staggered shelf clearance height | 400 mm | |
| Bottom full-width shelf depth | 400 mm | |
| Frame tube cross-section size | 25 x 25 mm | |
| Shelf panel thickness | 25 mm | |
| Drawer front thickness | 18 mm | |
| Edge band thickness on wood panels | 1 mm | |
| Adjustable foot leveler height adjustment | 10 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Total product net weight | 90 kg | |
|---|---|---|
| Per-shelf static load capacity | 23 kg | |
| Anti-tip wall anchor load rating | 50 kg | |
| Drawer slide open/close cycle rating | 50000 cycles | |
| Finish abrasion resistance | 2000 cycles | |
| Recommended maximum load for top display shelf | 23 kg | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Structural frame | Powder-coated black carbon steel tubular frame | |
|---|---|---|
| Open shelf panels | Dark walnut-finish engineered wood particleboard core | |
| Drawer fronts | Matte light taupe laminated engineered wood | |
| Drawer box construction | Hardwood-veneer engineered wood drawer sides and base | |
| Drawer pulls | Matte black horizontal metal bar handles | |
| Back panel (if fitted) | 3 mm thick hardboard backing panel | |
| Drawer slides | Cold-rolled steel side-mount drawer slides | |
| Surface finish on metal parts | Epoxy polyester powder coating | |
| Edge banding | Matching dark PVC edge tape on all wood panel edges | |
| Leveling feet | Nylon base adjustable steel levelers | |
| Anti-tip hardware | Steel wall anchor bracket with zinc-plated fasteners | |
| Edge Band Thickness | 2 mm |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Fixed staggered open cubby storage | 11 varied-size open compartments arranged in asymmetric geometric layout | |
|---|---|---|
| Mid-height drawer storage | 4 equal-width horizontally aligned drawers spanning full unit width | |
| Drawer operation | Smooth full-extension side-mount slides allow drawers to open 340mm | |
| Stability adjustment | Four base-mounted levelers adjust independently to level unit on uneven carpet or hard floors | |
| Anti-tip safety | Wall anchor bracket secures upper rear frame to wall stud | |
| Surface maintenance | Smooth non-porous finishes clean with dry or slightly damp lint-free cloth | |
| Open display visibility | Open metal frame with no rear solid panel allows unobstructed line of sight to displayed items | |
| Freestanding installation | No permanent floor mounting required, rests directly on finished floor surface | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Open office display and storage | Placed against office walls to display awards, books, and decor while storing small supplies | |
|---|---|---|
| Living room etagere display | Positioned against living room walls to show art, collectibles, and family mementos | |
| Retail store display fixture | Used in retail settings to showcase merchandise, decor, and product samples | |
| Study/home office book storage | Installed in home studies to hold books, reference materials, and desk supplies | |
| Lobby/reception area furnishing | Placed in commercial lobbies to display branding materials, plants, and decorative objects | |
| Recommended wall placement | Positioned flush against flat interior walls with anti-tip anchor secured to wall stud |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 14749:2016 | Domestic and kitchen storage units and worktops safety requirements, applies to storage stability | |
|---|---|---|
| EN 1022:2018 | Domestic furniture seating stability test reference for anti-tip verification for tall units | |
| EN 12521:2015 | Furniture strength, durability and safety for domestic storage furniture |
STANDARD S2
North America Purchasing & Inspection Reference * ANSI/BIFMA Standards
US and Canada office-furniture standards
| ANSI/BIFMA X5.9-2019 | Storage furniture performance standard for office use, applies to shelf and drawer load testing | |
|---|---|---|
| ANSI/BIFMA X5.1-2017 | Reference standard for structural stability of freestanding office furniture units |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applies to wood shelf and drawer components | |
|---|---|---|
| GB/T 24821-2009 | Office furniture panel furniture specifications, applies to engineered wood panel performance | |
| GB 28007-2011 | Children's furniture safety requirements, applicable if used in accessible public or family spaces |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applies to wood shelf and drawer components; 2. GB/T 24821-2009: Office furniture panel furniture specifications, applies to engineered wood panel performance; 3. GB 28007-2011: Children's furniture safety requirements, applicable if used in accessible public or family spaces; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
