Automatic mm / inch conversion · Core engineering specifications
| Overall dimensions | 1200 x 600 x 540 mm | |
|---|---|---|
| Tabletop thickness | 36 mm | |
| Recessed tea tray dimensions | 800 x 400 x 30 mm | |
| Right-side open storage compartment inner size | 500 x 600 x 400 mm | |
| Base side panel metal thickness | 1.2 mm | |
| Tabletop overhang around base | 50 mm | |
| Front central infill panel size | 600 x 400 mm | |
| Tabletop edge radius | 20 mm | |
| Floor clearance under base | 20 mm | |
| Tea tray drain hole diameter | 50 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Net weight / load capacity / users / durability
| Tabletop static load capacity | 150 kg | |
|---|---|---|
| Tabletop heat resistance | 800 °C | |
| Tabletop surface abrasion resistance | 6000 cycles | |
| Product net weight | 90 kg | |
| Recommended number of seated users | 4 | |
| Surface scratch resistance grade | Level 5 | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years |
Core acceptance fields · Panels / hardware / frame / upholstery

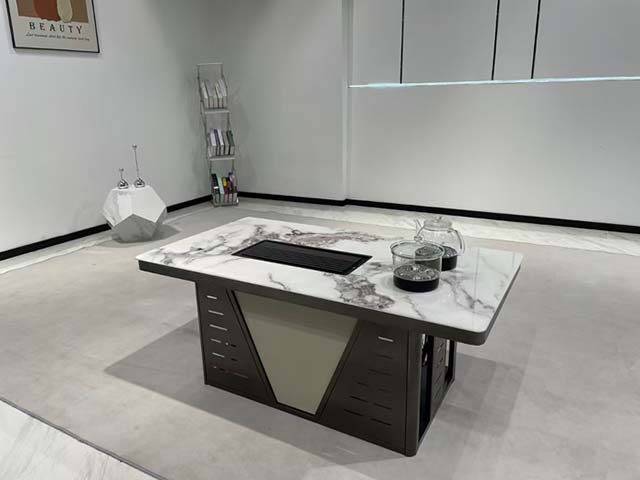

| Tabletop | 36mm marble-veined white sintered stone, polished finish | |
|---|---|---|
| Recessed tea tray | Black slotted sintered stone drainage panel with slope to drain | |
| Base frame | 1.2mm thick cold-rolled steel, dark bronze powder-coated finish | |
| Side decorative grooves | Laser-cut horizontal slots in steel side panels, same powder-coat finish | |
| Front central infill panel | Matte light beige painted MDF panel, framed by steel base | |
| Open storage compartment interior | Moisture-resistant multi-layer plywood with dark laminate finish | |
| Foot pads | Adjustable non-slip TPE anti-scratch pads at base corners | |
| Drainage fitting | Food-grade PVC drain hose connector under tea tray | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Adjustment / rotation / tilt / mobility / storage features
| Integrated draining tea station | Recessed sloped tray directs spilled tea to hidden drain connection for waste bucket | |
|---|---|---|
| Level adjustment | Adjustable foot pads correct uneven floors by 10mm height adjustment | |
| Heat-resistant work surface | Sintered stone top supports placement of boiling kettles without insulation pads | |
| Cable and hose routing | Hidden channel behind base panels routes power cords and drain hoses out of sight | |
| Easy-clean surface | Non-porous sintered stone surface wipes clean with damp cloth, no sealing required | |
| Fixed stable base | Box pedestal design eliminates wobble during tea preparation and serving | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Recommended spaces / users / usage modes
| Residential living room | Placed in front of sectional sofa for casual tea service and guest entertainment | |
|---|---|---|
| Office reception lounge | Used in executive reception areas to host visiting clients with tea service | |
| Private tea room | Central table in dedicated home or commercial tea tasting rooms for kung fu tea preparation | |
| Hotel lobby lounge | Installed in hotel public lounge areas for guest beverage service | |
| Boutique clubhouse | Used in VIP member lounges for relaxed conversation and refreshment service |
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Strength, durability and safety requirements for domestic tables | |
|---|---|---|
| EN 13722:2004 | Performance requirements for furniture metal frames and bases | |
| EN 14085:2003 | Surface resistance to dry heat for furniture finished surfaces |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for base wood components | |
|---|---|---|
| GB/T 4897.3-2015 | Particleboard for furniture use, applicable for composite wood panels | |
| GB 6566-2010 | Radionuclide limits for building materials, applicable for stone tabletops | |
| GB/T 17657-2013 | Test methods for surface properties of wood-based panels and finishes |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for base wood components; 2. GB/T 4897.3-2015: Particleboard for furniture use, applicable for composite wood panels; 3. GB 6566-2010: Radionuclide limits for building materials, applicable for stone tabletops; 4. GB/T 17657-2013: Test methods for surface properties of wood-based panels and finishes; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
