Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 2600 × 800 × 770 mm | |
|---|---|---|
| Tabletop thickness | 80 mm | |
| Integrated recessed tea tray dimensions | 1000 x 450 x 30 mm | |
| Under-table knee clearance height | 640 mm | |
| Pedestal base width | 400 mm | |
| Clearance between two pedestal bases | 1800 mm | |
| Tabletop edge overhang | 50 mm | |
| Central slatted decorative panel height | 450 mm | |
| Primary Component Thickness | 40 mm according to load-bearing role | |
| Hardware / Moving-part Clearance | 5 mm operating clearance |
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Tabletop static load capacity | 200 kg | |
|---|---|---|
| Product net weight | 180 kg | |
| Tea tray drainage capacity | 2 L | |
| Tabletop surface temperature resistance | 180 ℃ | |
| Surface abrasion resistance | 4000 cycles | |
| Recommended maximum seated user count | 6 persons | |
| Warranty period | 3 years | |
| Seating capacity per long side | 3 persons | |
| Reference Static Load | 150 kg depending on category | |
| Moving-part Durability Reference | Acceptance target 50000 cycles |
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Tabletop surface | Polished sintered stone slab | |
|---|---|---|
| Pedestal bases | Solid wood with dark matte lacquer finish | |
| Integrated tea tray | Black natural stone with slatted drainage surface | |
| Central decorative panel | Vertical solid wood slats with metal inlay trim | |
| Frame internal support | 1.5mm thick steel rectangular tube | |
| Tabletop edge treatment | Polished eased edge, no sharp corners | |
| Base bottom pads | 5mm thick non-slip rubber floor protectors | |
| Surface coating | Water-based matte clear lacquer on wood components | |
| Primary Connector Specification | Reference M6-M10 with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Integrated tea tray | Recessed flush-fit stone tray with open slat drainage for direct tea brewing | |
|---|---|---|
| Drainage system | Hidden gravity drain outlet at tea tray end for connection to waste water container | |
| Cable routing | Concealed channel in central base for electric kettle power cord management | |
| Seating access | Full perimeter under-table clearance allows seating on all four table sides | |
| Surface cleaning | Non-porous stone tabletop resists tea stains and allows wipe-clean maintenance | |
| Structural stability | Dual wide pedestal bases eliminate cross-beam obstruction for leg room | |
| Customization option | Table length and stone finish can be adjusted per project requirements | |
| Reference Adjustment / Operating Range | 100 mm or 120° where applicable |
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Packaging Volume | 0.8 m³/set | |
| Reference Packaged Gross Weight | 120 kg/set |
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Office reception area | Suitable for 6-person business tea reception with formal seating layout | |
|---|---|---|
| Home living room tea space | Fits open-plan living areas for family and guest tea gatherings | |
| Commercial tea house private room | Meets durability and functional requirements for commercial daily use | |
| Hotel VIP lounge | Matches upscale modern Chinese interior design for guest hospitality | |

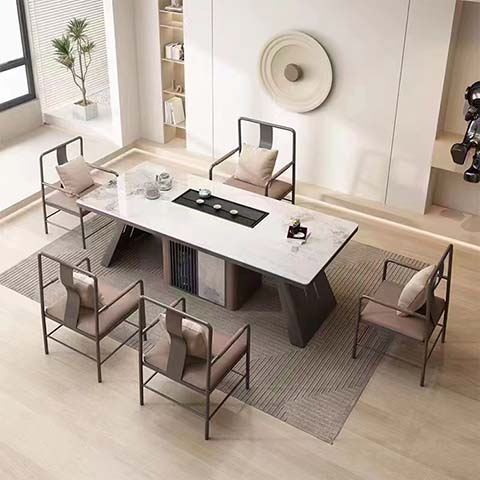

| Recommended pairing | Use with 6 matching new Chinese metal-frame armchairs as shown in visual |
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 12521:2015 | Furniture for strength, durability and safety of domestic tables | |
|---|---|---|
| EN 13722:2004 | Furniture test methods for surface resistance to cold liquids |
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable for wood base components | |
|---|---|---|
| GB 18584-2001 | Indoor decoration material limit of harmful substances for wood furniture | |
| GB/T 4100-2015 | Ceramic tile/sintered stone specification for tabletop material performance |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for wood base components; 2. GB 18584-2001: Indoor decoration material limit of harmful substances for wood furniture; 3. GB/T 4100-2015: Ceramic tile/sintered stone specification for tabletop material performance; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
