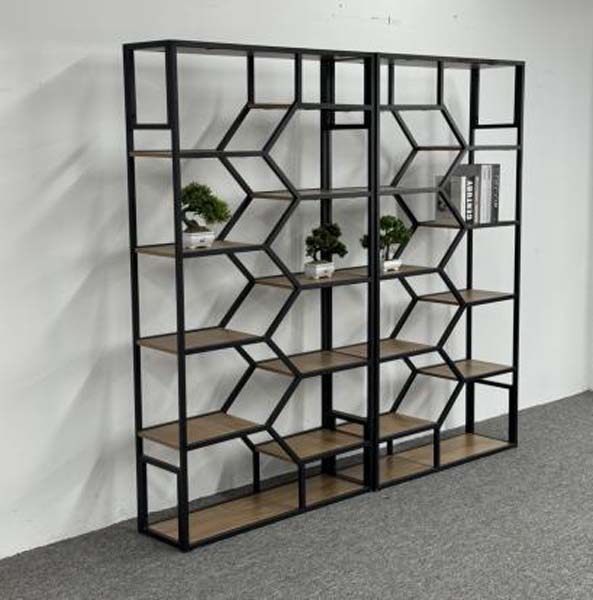

Name: Industrial Double-Bay Hexagonal Grid Open Etagere Bookcase Room Divider
Brand: Fanshidun
SKU: PNF1EK

Time

Field

Original Value

Corrected Value

Note / Status

No correction records yet. Found an error? Click the flag at the end of a row to report it.

PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1380 × 300 × 1960 mm
Carcass Panel Thickness	25 mm
Back Panel Thickness	9 mm
Door / Drawer Front Thickness	22 mm
Shelf Thickness	25 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

total unit static load capacity	100 kg
unit net weight	35 kg
frame scratch resistance rating	2000 cycles
board surface abrasion resistance	300 cycles
adjustable foot height adjustment range	15 mm
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

support frame	20mm thick powder-coated carbon steel tube
display shelves	18mm thick E1-grade engineered wood panel
shelf edge treatment	1mm thick PVC edge banding
leveling feet	Nylon plastic with threaded steel insert
assembly hardware	Zinc-plated steel bolts and barrel nuts
frame finish	Matte black electrostatic powder coating
back panel structure	Open back no panel construction
anti-tip hardware	Steel wall anchor bracket included
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints
Reference Finish / Color Count	Recommended 6finish options

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

room partition function	Fully open see-through hexagonal grid design
display storage function	13 staggered offset shelves at varied heights
leveling adjustment	Threaded nylon feet adjust up to 15mm
double-sided access	Open design allows shelf access from front and rear
flat-pack bolt-together assembly	Pre-drilled frame holes with included hardware
wall anti-tip protection	Steel anchor strap secures unit top to wall
surface cleaning compatibility	Smooth non-porous shelf and frame surfaces
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

office open workspace divider	Placed between desk clusters to define zones while maintaining visual openness
living room display etagere	Positioned against wall to showcase books, decor, and small potted plants
entryway partition shelf	Used near entry to separate foyer space with open storage for keys and decor
retail display fixture	Installed in boutiques to display small merchandise without blocking store views
studio space separator	Used in open loft studios to divide sleep and work areas without full walls
library home study storage	Installed alongside study desks for open book and reference material storage

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Safety and strength requirements for domestic and office storage furniture
EN 1022:2018	Stability testing standard for freestanding storage furniture
EN 12521:2015	Durability and strength requirements for domestic furniture shelving

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable for shelf panel quality
GB/T 24821-2009	Safety requirements for furniture hardware, applicable for frame and anchor parts
GB 18580-2017	Formaldehyde emission limits for wood-based panels, recommended for panel E1 grade

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable for shelf panel quality;
2. GB/T 24821-2009: Safety requirements for furniture hardware, applicable for frame and anchor parts;
3. GB 18580-2017: Formaldehyde emission limits for wood-based panels, recommended for panel E1 grade;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ETG-HEX-DB-1960

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ETG-HEX-DB-1960

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ETG-HEX-DB-1960Open Export Tool

Quick Actions

Post an RFQ

Product Description

The Fanshidun ETG-HEX-DB-1960 is a dual-purpose open shelving room divider and etagere bookcase defined by its industrial-inspired hexagonal grid framework and open-back double-bay structure. Its staggered shelf layout creates a dynamic geometric visual profile, with a fully see-through design that preserves light flow and visual connection across spaces while establishing clear functional boundaries. The unit measures 1380 x 300 x 1960 mm, with a unified matte black finish on its 20mm thick powder-coated carbon steel support frame that anchors the piece’s rugged yet refined aesthetic. Construction combines durable, purpose-selected materials built for regular daily use. The support frame is finished with electrostatic powder coating rated to withstand 2000 cycles of scratching, while the 18mm thick E1-grade engineered wood display shelves carry 2mm PVC edge banding to protect against edge wear, with board surfaces rated for 300 cycles of abrasion resistance. Shelves are 25mm thick, with carcass panels at 25mm and no enclosed back panel to maintain the open design. Leveling feet are constructed from nylon plastic with threaded steel inserts, assembly hardware uses zinc-plated steel bolts and barrel nuts, and a steel wall anchor bracket is included for anti-tip security. The full unit has a net weight of 35 kg, with a total static load capacity of 100 kg, and each shelf supports 30 kg of distributed weight. Functionality is tailored for flexible, accessible use: 13 staggered, offset shelves at varied heights accommodate items of differing sizes, while the double-sided open design allows access from both front and rear faces. Threaded nylon feet adjust up to 15mm to accommodate uneven flooring, and smooth non-porous shelf and frame surfaces simplify routine cleaning. The unit ships as a flat-pack set with pre-drilled frame holes and all required hardware, with an assembly time of 40 minutes per unit; packaging includes multiple cartons per set. This piece suits a broad range of commercial and residential spaces: it works as an open workspace divider between office desk clusters to define zones without blocking sightlines, as a living room etagere to display books, decor and small potted plants, as an entryway partition to separate foyer space with accessible storage for keys and decorative items, as a boutique retail fixture to showcase small merchandise without obstructing store views, as a studio separator to divide sleep and work zones in open lofts, and as open storage alongside home study or library desks for reference materials. For procurement, note that wall anchor installation is required for tip-over safety, the flat-pack format requires on-site assembly, and total packaged weight reaches 100 kg per set with a total packaging volume of 0.65 m³ to coordinate delivery and installation planning.

Industrial Double-Bay Hexagonal Grid Open Etagere Bookcase Room Divider Specifications
