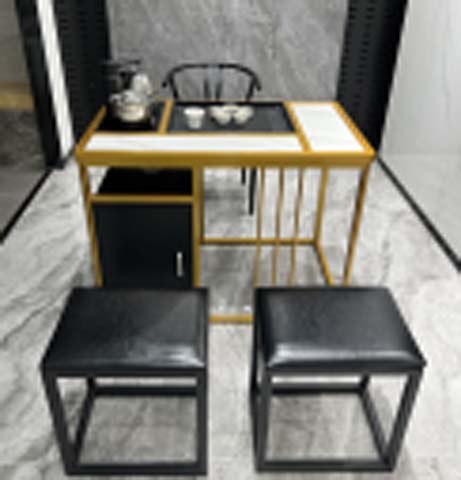

Product supplierModern Light Luxury Integrated Tea Serving Table with Left Storage Cabinet, Gold-plated carbon steel tubular frame
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 1200 × 700 × 750 mm | |
|---|---|---|
| Recessed tea tray zone size | 600 x 400 mm | |
| Left storage cabinet dimensions | 400 x 350 x 600 mm | |
| Seated knee well clearance height | 620 mm | |
| Seated knee well width | 800 mm | |
| Vertical support bar spacing | 120 mm | |
| Matching square stool dimensions | 350 x 350 x 420 mm | |
| Tabletop panel thickness | 12 mm | |
| Metal frame tube diameter | 30 mm | |
| Lower support crossbar height | 120 mm | |
| Carcass Panel Thickness | 25 mm | |
| Back Panel Thickness | 9 mm | |
| Door / Drawer Front Thickness | 22 mm | |
| Shelf Thickness | 25 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Table static load capacity | 150 kg | |
|---|---|---|
| Table net weight | 48 kg | |
| Seating capacity | 3 people | |
| Sintered stone tabletop heat resistance | 180 °C | |
| Storage cabinet internal volume | 84 L | |
| Tabletop scratch resistance rating | Level 4 | |
| Shelf Distributed Load | 30 kg/shelf | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Angle / Life | 165°; 80000 cycles | |
| Anti-tip Fixing Reference | Products above 1200 mm should use at least 2 wall fixing points |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Support frame | Gold-plated carbon steel tubular frame | |
|---|---|---|
| Main tabletop panels | White polished sintered stone | |
| Recessed tea tray surface | Black matte stone composite | |
| Storage cabinet body | Black matte MDF with edge banding | |
| Cabinet door handle | Brushed silver aluminum alloy pull | |
| Stool seat padding | 30mm high-density polyurethane foam | |
| Stool upholstery | Black matte faux leather | |
| Stool frames | Matte black powder-coated square steel tube | |
| Floor glides | Non-slip plastic foot pads | |
| Edge Band Thickness | 2 mm | |
| Primary Connector Specification | Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints | |
| Reference Finish / Color Count | Recommended 6finish options |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Recessed tea tray drainage | Built-in hidden drain channel | |
|---|---|---|
| Left enclosed storage | Single-door enclosed cabinet | |
| Seating configuration | Compatible with 1 chair and 2 nested stools | |
| Boiler integration compatibility | Pre-sized cutout for bottom-feed electric kettle | |
| Frame stability bracing | Welded cross-brace structure | |
| Surface maintenance | Non-porous sintered stone surface | |
| Assembly method | Knock-down assembly with bolted connections | |
| Cable / Vent Opening Reference | If fitted, 80 mm diameter |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | 2100× 700× 350 mm/carton according to carcass split | |
| Reference Packaged Gross Weight | 100 kg/set in 3 cartons | |
| Reference Packaging Volume | 0.65 m³/set |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Small apartment balcony | Compact footprint fits 4sqm tea corners for daily tea drinking | |
|---|---|---|
| Home living room side | Light luxury finish complements modern minimalist living room decor | |
| Small office reception | Suitable for 3-person informal tea reception in office break areas | |
| Studio tea space | Multi-function surface doubles as small work desk when tea set is stored | |
| Matching seating configuration | Pairs with 1 wishbone-style host chair and 2 padded cube stools | |
| Recommended use case | Casual gongfu tea service for 3 guests |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| Domestic furniture safety | EN 12521:2015 | |
|---|---|---|
| Furniture surface durability | EN 15185:2011 |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| Table furniture safety | GB/T 3324 | |
|---|---|---|
| Furniture surface coating | GB/T 17657 | |
| Furniture hardware performance | GB/T 28203 |
Standardized tender description text
This product must meet the following technical requirements: 1. Table furniture safety: GB/T 3324; 2. Furniture surface coating: GB/T 17657; 3. Furniture hardware performance: GB/T 28203; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
