Automatic mm / inch conversion · Core engineering specifications

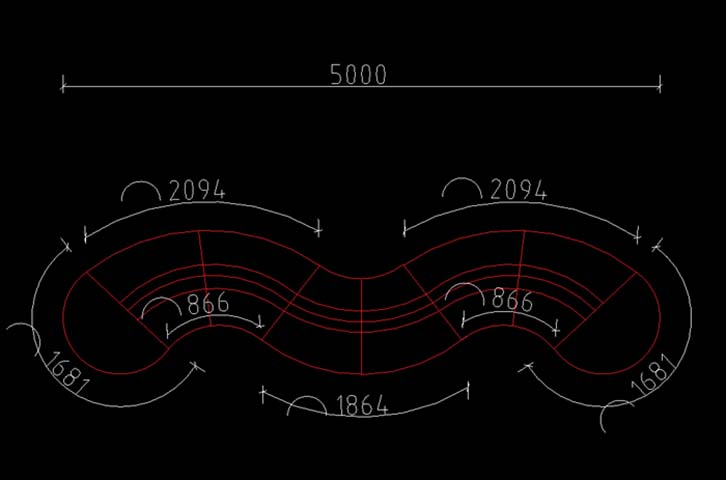

| Overall footprint | 5000 x 800 x 1100 mm | |
|---|---|---|
| Front transaction counter height | 1100 mm | |
| Inner seated work surface height | 750 mm | |
| Maximum counter depth | 800 mm | |
| Work surface depth per station | 700 mm | |
| Side outer curved arc length | 2094 mm | |
| Inner concave work arc length per station | 866 mm | |
| End cap arc dimension per side | 1681 mm | |
| Central convex front arc length | 1864 mm | |
| Seated knee clearance height under work surface | 650 mm | |
| Countertop overhang | 50 mm | |
| Solid surface countertop thickness | 25 mm | |
| Edge banding thickness | 2 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall |
Net weight / load capacity / users / durability
| Countertop static load capacity | 150 kg | |
|---|---|---|
| Total assembled unit weight | 400 kg | |
| Staff seating capacity | 2 | |
| Countertop flexural strength | 60 MPa | |
| Countertop compressive strength | 45 MPa | |
| Substrate formaldehyde emission | 0.5 mg/L | |
| Drawer slide load rating per drawer | 25 kg | |
| Surface abrasion resistance | 400 cycles | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles |
Core acceptance fields · Panels / hardware / frame / upholstery
| Transaction countertop | 25mm seamless acrylic artificial stone, high-gloss finish | |
|---|---|---|
| Inner work surface substrate | E0 grade moisture-resistant solid particle board, melamine laminate backing | |
| Edge banding | 2mm thick PVC edge trim, impact and stain resistant | |
| Support frame | 1.5mm thick powder-coated square steel tubing, corrosion resistant | |
| Cabinet panel finish | Flame-retardant melamine laminate, scratch resistant finish | |
| Undercounter drawer boxes | 18mm thick particle board, full-extension ball-bearing slides | |
| Optional front accent trim | Brushed stainless steel kick plate, 1mm thick, polished finish | |
| Cable management grommets | ABS plastic, 80mm diameter, matching countertop color | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Adjustment / rotation / tilt / mobility / storage features
| Dual-height stepped counter design | 1100mm front transaction surface and 750mm inner work surface | |
|---|---|---|
| Dual independent workstations | Two separate concave work zones with dedicated undercounter storage | |
| Undercounter storage system | Two suspended drawer units and open equipment bays under each work surface | |
| Integrated cable management | 80mm diameter grommets and under-desk cable tray per workstation | |
| Seamless curved counter splice | On-site bonded solid surface joints with no visible seams | |
| Leveling adjustment | M8 adjustable feet at support points, 15mm adjustment range | |
| Optional LED accent lighting | Recessed LED strip along front counter kick plate, 3000K warm white | |
| Floor anchoring provision | Pre-drilled anchor points at steel support legs for secure fixing | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Commercial office main lobby | Suitable for corporate entrance reception, visitor check-in and guest greeting | |
|---|---|---|
| Hotel front desk | Durable seamless surface and dual-station layout for continuous guest service | |
| Public service center hall | Long curved profile accommodates multiple visitor service points efficiently | |
| Exhibition hall information counter | Attractive curved silhouette directs visitor traffic and provides consultation space | |
| High-end medical clinic reception | Non-porous easy-to-clean surface meets public space hygiene requirements | |
| Dual-receptionist configuration | Two separate work zones reduce cross-interference during peak service periods |
EU Market Access Requirements* EN Standards
| EN 15372:2008+A1:2016 | Office furniture durability, strength and safety requirements for non-domestic storage units | |
|---|---|---|
| EN 13722:2004 | Test methods for surface resistance to cold liquids for furniture worktops | |
| EN 1022:2018 | Seating and work surface stability requirements for commercial workstations |
US and Canada office-furniture standards
| ANSI/BIFMA X5.5-2021 | Desk products safety and performance standard for office work surfaces | |
|---|---|---|
| ANSI/BIFMA X5.9-2019 | Storage units safety and durability standard for undercounter cabinetry | |
| ANSI/BIFMA e3-2019e | Furniture sustainability standard for material emissions and environmental impact |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden office furniture, applicable to cabinet substrate and finish | |
|---|---|---|
| GB 18580-2017 | Formaldehyde emission limits for wood-based panels, required for indoor commercial furniture | |
| GB/T 35607-2017 | Green product evaluation standard for furniture, applicable for low-emission material selection |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden office furniture, applicable to cabinet substrate and finish; 2. GB 18580-2017: Formaldehyde emission limits for wood-based panels, required for indoor commercial furniture; 3. GB/T 35607-2017: Green product evaluation standard for furniture, applicable for low-emission material selection; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
