Automatic mm / inch conversion · Core engineering specifications

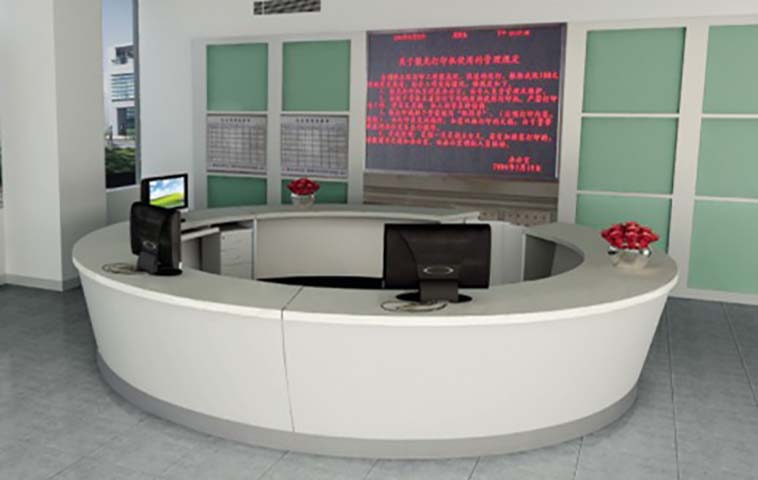

| Overall dimensions (outer arc diameter x depth x visitor-facing height) | 3600 x 750 x 1100 mm | |
|---|---|---|
| Staff work surface height from floor | 750 mm | |
| Visitor-facing counter overhang depth | 330 mm | |
| Per-staff knee well clear width | 800 mm | |
| Knee well clear height under work surface | 650 mm | |
| Toe kick clearance depth at base | 450 mm | |
| Main carcass/front panel thickness | 18 mm | |
| Worktop thickness | 25 mm | |
| PVC edge banding thickness | 2 mm | |
| Kickplate height from floor | 100 mm | |
| Cable grommet inner diameter | 80 mm | |
| Internal cable tray usable width | 150 mm | |
| Finished Top Thickness | 50 mm | |
| Effective Knee Clearance | 680 mm high and 900 mm wide per main seat | |
| Leg / Support Section | 80 mm main section with 2 mm metal wall | |
| Cable Opening Size | 80 mm diameter; cable tray depth 120 mm |
Net weight / load capacity / users / durability
| Overall worktop static uniform load capacity | 260 kg | |
|---|---|---|
| Recommended maximum concurrent users | 3 | |
| Surface finish abrasion resistance | 2000 cycles | |
| Product net weight (fully assembled) | 280 kg | |
| Front panel impact resistance | 1.5 J | |
| Top Static Load Reference | 150 kg uniformly distributed | |
| Drawer Slide Load / Life | 45 kg/pair; 50000 cycles | |
| Hinge Opening Life | Acceptance target 80000 cycles | |
| Top Abrasion Reference | Acceptance target ≥4,000 abrasion cycles or finish-system test | |
| Recommended Procurement Warranty | Structure 5 years; hardware 3 years; finish 2 years |
Core acceptance fields · Panels / hardware / frame / upholstery
| Front facade panel | 18mm E1 grade high-density fiberboard, matte white baked paint finish | |
|---|---|---|
| Work surface | 25mm E1 grade particleboard, matte white laminate, 2mm PVC sealed edges | |
| Base kickplate | 1.2mm thick brushed gray stainless steel | |
| Internal structural frame | 1.5mm thick rectangular steel tubing, powder coated black | |
| Internal cabinet drawer slides | Cold-rolled steel three-section silent slides, zinc plated | |
| Access panel hinges | Stainless steel soft-close concealed hinges | |
| Cable grommets | ABS plastic, brushed silver finish, with brush seal | |
| Internal cable tray | 0.8mm thick galvanized steel, perforated design | |
| Primary Panel Thickness | 25 mm; load-bearing top may use 40 mm composite build-up | |
| Edge Band Thickness | 2 mm | |
| Metal Frame Wall Thickness | 2 mm cold-rolled steel | |
| Primary Connector Specification | Reference M6-M8 with at least 2 fixing points per main support |
Adjustment / rotation / tilt / mobility / storage features
| Cable management system | 3 grommets + full-length under-tray routes power/data to all work positions | |
|---|---|---|
| Staff under-counter storage | Integrated mobile pedestal with 3 drawers per workstation, lockable option | |
| Modular panel assembly | Bolt-connected segmented panels form continuous curved facade, on-site reconfigurable | |
| Accessible transaction surface | Raised visitor counter at 1100mm height supports standing guest interaction | |
| Anti-tip floor anchoring | Pre-drilled base plates secure unit to lobby floor to prevent forward tipping | |
| Rounded edge protection | All public-facing counter edges are radius-rounded to eliminate sharp impact points | |
| Toe kick recess | 100mm high recess at base allows seated staff to rest feet close to unit | |
| Cable Management Capacity | Reference capacity 10power/data cables; tray load 10 kg | |
| Reference Reassembly Count | Main joints should support 5controlled assembly cycles |
Verified carton / gross weight / assembly / loading data
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Package Dimensions | Main top 2500× 1050× 350 mm; return/pedestal packed separately | |
| Reference Packaged Gross Weight | 180 kg/set in 4 cartons | |
| Reference Packaging Volume | 1 m³/set |
Recommended spaces / users / usage modes
| Corporate office lobbies | Multi-station layout supports 3 reception staff greeting visitors and processing check-ins | |
|---|---|---|
| Government service centers | Curved public-facing facade provides open, approachable transaction points for citizens | |
| Hospital outpatient reception areas | Smooth sealed surfaces support easy disinfection for high-traffic public health settings | |
| University administration lobbies | Wide transaction counter handles student inquiries and document drop-off efficiently | |
| Hotel welcome lobbies | Curved design creates a central focal point for guest check-in and concierge services | |
| Bank branch entry areas | Raised transaction surface supports secure document and item exchange with customers |
EU Market Access Requirements* EN Standards
| EN 527-1:2011 | Office work tables: safety and strength requirements for work surfaces | |
|---|---|---|
| EN 15372:2016 | Furniture: strength, durability and safety for non-domestic storage | |
| EN 1728:2014 | Furniture: seating and table test methods for strength and stability | |
| EN 13986:2004 | Wood-based panels for construction: formaldehyde emission limits |
Standards applicable to China-market projects
| GB/T 3324-2017 | General technical requirements for wooden furniture, applicable to wood panel components | |
|---|---|---|
| GB/T 4897.3-2015 | Requirements for particleboard used in furniture, applicable to worktop substrates | |
| GB 18580-2017 | Formaldehyde emission limit for wood-based panels, minimum E1 grade required | |
| GB/T 14531-2017 | Ergonomic requirements for office work surfaces, applicable to work height |
This product must meet the following technical requirements: 1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to wood panel components; 2. GB/T 4897.3-2015: Requirements for particleboard used in furniture, applicable to worktop substrates; 3. GB 18580-2017: Formaldehyde emission limit for wood-based panels, minimum E1 grade required; 4. GB/T 14531-2017: Ergonomic requirements for office work surfaces, applicable to work height; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
