PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	1600 × 350 × 800 mm
Back gallery rail height	90 mm
Single slatted door size	400 x 450 mm
Central open compartment size	600 x 450 mm
Central shelf clearance per tier	220 mm
Lower open slatted shelf height from floor	200 mm
Support leg section size	40 x 40 mm
Lower slatted shelf depth	300 mm
Brass teardrop pull length	80 mm
Vertical slat width on doors	18 mm
Slat gap width on doors	18 mm
Lower shelf solid end platform size	150 x 300 mm
Carcass panel thickness	20 mm
Back panel thickness for open shelves	9 mm
Edge band thickness	2 mm
Back Panel Thickness	9 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Total unit static load capacity	100 kg
Door hinge cycle rating	50000 cycles
Unit net weight	90 kg
Recommended maximum weight for top surface	60 kg
Anti-tip connector required quantity	2
Shelf Distributed Load	30 kg/shelf
Drawer Slide Load / Life	45 kg/pair; 50000 cycles
Hinge Opening Angle / Life	165°; 80000 cycles
Anti-tip Fixing Reference	Products above 1200 mm should use at least 2 wall fixing points
Recommended Procurement Warranty	Carcass 5 years; hardware 3 years; finish 2 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Main structural frame	Solid kiln-dried hardwood, walnut brown matte lacquer finish
Cabinet door slats	Solid wood vertical slats, same walnut finish as frame
Open compartment back panel	9mm dark brown MDF backing, matte finish
Hardware pulls	Cast brass teardrop-shaped handles, brushed brass finish
Door hinges	Cold-rolled steel concealed soft-close hinges, zinc-plated
Lower slatted shelf	Solid wood slats with shaped stepped end caps, walnut finish
Back gallery rail	Solid wood frame with central vertical slats, shaped cutout corners
Support legs	Solid wood squared straight legs, floor-protecting felt pads
Shelf surfaces	Solid wood flat panels, sanded smooth with matching lacquer finish
Finish coating	Low-VOC matte nitrocellulose lacquer, scratch-resistant top coat
Edge Band Thickness	2 mm
Primary Connector Specification	Reference M6-M8 cam/bolt fittings with at least 2 fixing points at major joints

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Side cabinet storage	Two slatted doors conceal single-compartment enclosed storage on left and right
Central open display	Two-tier fixed open shelf for frequently accessed entry items or decor
Lower open storage	Full-width slatted open shelf designed for shoe storage and daily entry items
Gallery rail guard	Raised back top rail prevents items from sliding off rear of top surface
Door operation	Hinged doors open 110 degrees outward for full access to enclosed storage
Ventilation design	Slatted door and shelf construction allows air circulation for stored footwear
Floor protection	Felt pads on leg bottoms prevent scratches to hard flooring surfaces
Cable / Vent Opening Reference	If fitted, 80 mm diameter

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Package Dimensions	2100× 700× 350 mm/carton according to carcass split
Reference Packaged Gross Weight	100 kg/set in 3 cartons
Reference Packaging Volume	0.65 m³/set

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Residential entryway	Suitable for placement against entry walls for shoe, key and decor storage
Living room partition	Functions as a low open partition between living room and entry space
Dining room sideboard	Usable as a dining storage cabinet for tableware and serving items
Reception waiting area	Suitable for commercial reception spaces for visitor item storage
Tea room storage	Ideal for traditional tea rooms to store tea ware and display decor
Hallway accent piece	Works as a decorative narrow hallway cabinet for small display items
Matching configuration	Pairs with solid wood entry benches, shoe racks and hanging racks in the same finish

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 14749:2016	Domestic and kitchen storage units and worktops - safety requirements
EN 71-3:2019	Safety of toys - migration of certain elements, applicable to hardware finish safety
EN 13722:2004	Furniture - test methods for strength and durability of storage units

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 3324-2017	General technical requirements for wooden furniture, applicable to structural and finish quality
GB 18584-2001	Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture
GB/T 4893.8-2013	Test for surface wear resistance of furniture coatings

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 3324-2017: General technical requirements for wooden furniture, applicable to structural and finish quality;
2. GB 18584-2001: Indoor decorating and refurbishing materials - limit of harmful substances for wood furniture;
3. GB/T 4893.8-2013: Test for surface wear resistance of furniture coatings;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · ENT-CON-WAL-1600

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · ENT-CON-WAL-1600

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · ENT-CON-WAL-1600Open Export Tool

Quick Actions

Post an RFQ

Product Description

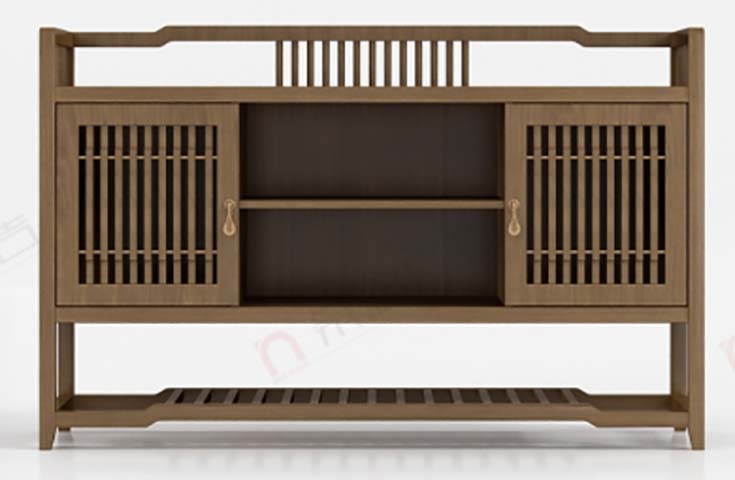

Blending understated traditional design cues with functional storage, the New Chinese Style Walnut Brown Slatted Entryway Console Cabinet delivers a balanced mix of display space and concealed organization for both residential and commercial settings. The piece features a balanced linear layout, with slatted door-fronted enclosed storage zones on the left and right, a two-tier central open display section, a full-width lower slatted open shelf, and a raised back gallery rail along the rear edge of the top surface. Squared straight support legs lift the lower shelf clear of the floor, while teardrop-shaped brushed brass hardware pulls add a refined, warm accent to the consistent walnut brown matte finish across all solid wood visible surfaces. Constructed with a solid kiln-dried hardwood frame finished in walnut brown matte lacquer, the cabinet is built for regular long-term use. Vertical solid wood slats form the doors and lower shelf, paired with a dark brown matte MDF back panel for the central open compartment. Cold-rolled steel concealed soft-close zinc-plated hinges support smooth door operation, while cast brass teardrop handles offer a tactile, polished hardware detail. All leg bases are fitted with felt floor-protecting pads, and shaped stepped end caps finish the edges of the lower slatted shelf. The slatted construction supports natural air circulation throughout all storage zones.
Functionally, the cabinet addresses diverse entry and storage needs: the two side compartments behind outward-opening slatted doors offer enclosed storage, the central fixed two-tier open shelf holds frequently accessed items or decorative pieces, and the full-width lower slatted shelf is configured for footwear and everyday entry items. The raised back gallery rail prevents objects placed on the top surface from sliding off the rear edge, while the soft-close hinges operate smoothly through regular use cycles.
This versatile piece works equally well in residential entryways as a primary storage unit for keys, footwear and decor, as a low open partition between living spaces and entry zones, as a dining room sideboard for tableware and serving pieces, or as a functional accent in commercial reception waiting areas, traditional tea rooms for tea ware storage and display, or narrow hallways for curated small displays.
Procurement teams and buyers should note the unit requires assembly upon delivery, ships across multiple cartons, and includes a requirement for two anti-tip connectors to secure it safely to walls for stable installation. The total static load capacity and per-surface weight limits should be observed to maintain long-term performance, and the fixed shelf configuration should be aligned with intended storage needs prior to purchase.
