PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 660 × 1000 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	16 kg
Recommended user weight capacity	160 kg
Recommended user body height	190 cm
Seating capacity	1 person
Cantilever flex durability target	200,000 cycles
Seat static-load verification target	1,600 N
Backrest static-load verification target	760 N
Arm downward-load verification target	900 N per arm
Floor runner point load	40 kg per contact pad
Recommended warranty period	5 years

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Burgundy leather-look surface over padded cushioning
Backrest upholstery	Burgundy leather-look facing with soft padded body
Seat foam	80 mm molded polyurethane foam at 45 kg/m3 density
Back foam	70 mm polyurethane foam at 40 kg/m3 density
Seat support board	12 mm molded plywood or composite load board
Internal back frame	1.5 mm thick steel reinforcement panel
Armrest structure	25 mm diameter steel tube with matching burgundy upholstered padding
Cantilever base	25 mm diameter chrome-plated steel tube
Chrome plating	0.8 micron bright chrome over 8 micron nickel layer
Floor glides	Injection-molded polymer pads at four runner ends
Edge stitching	Burgundy bonded thread with 7 stitches per 50 mm seam pitch
Upholstery abrasion target	50,000 Martindale cycles

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed cantilever support	Continuous chrome sled frame provides controlled flex without casters or a gas cylinder
Swivel function	0 degrees rotation
Height adjustment	Fixed 450 mm seat height with 0 mm lift travel
Recline function	Fixed back angle at 100 degrees from horizontal
Tilt lock positions	1 fixed position
Arm support design	Integrated fixed loop arms provide 230 mm forearm rise and side impact support
Entry and exit access	Open-front sled frame allows approach from the front with 340 mm under-seat clearance
Floor protection	Four polymer glide pads isolate chrome runners from hard floors
Movement behavior	Stationary chair with slight frame deflection during sitting
Upholstery maintenance	Wipe-clean burgundy surface suitable for meeting-room turnover
Room rearrangement	Two rear carry points beneath the seat allow repositioning by two handles
Recline Angle / Lock Reference	125° with 3suggested lock positions

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive conference room	Place around boardroom tables at 450 mm fixed seat height for formal meetings
Visitor seating	Use across a desk or meeting table for guests requiring upright support
Reception waiting area	Pair two or four chairs with a low table for a coordinated burgundy executive look
Manager meeting office	Position in front of an executive desk for short-to-medium duration discussions
Hard-floor installation	Use on tile, wood, or resilient floors with integrated polymer glides
Commercial interior standard	Specify for projects requiring a leather-look executive aesthetic without high-back managerial mechanisms
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

EN 16139 applicability	Use for non-domestic seating strength, durability, and safety requirements
EN 1022 applicability	Use for determination of stability when tilted backward and forward
EN 1728 applicability	Use for common test methods for seating strength and durability

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

GB/T 10357.2 applicability	Use for furniture mechanical property testing of chair and stool structures
GB/T 10357.3 applicability	Use for chair and stool strength and durability test methods
GB 18584 applicability	Use for indoor decorative material limit of harmful substances in wooden furniture
GB/T 2960 applicability	Use for leather physical and mechanical testing if the cover is genuine leather

Standardized tender description text

This product must meet the following technical requirements:
1. GB/T 10357.2 applicability: Use for furniture mechanical property testing of chair and stool structures;
2. GB/T 10357.3 applicability: Use for chair and stool strength and durability test methods;
3. GB 18584 applicability: Use for indoor decorative material limit of harmful substances in wooden furniture;
4. GB/T 2960 applicability: Use for leather physical and mechanical testing if the cover is genuine leather;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · UBC-SLED-620-MB-BG

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · UBC-SLED-620-MB-BG

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · UBC-SLED-620-MB-BGOpen Export Tool

Quick Actions

Post an RFQ

Product Description

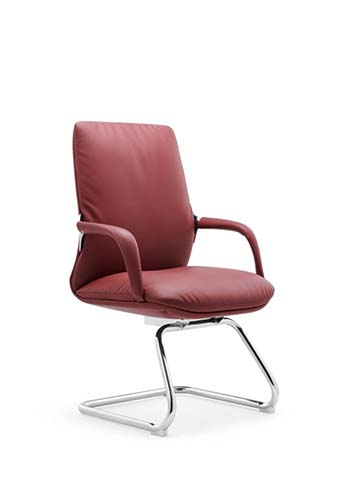

The Mid-Back Leather Visitor Conference Chair with Chrome Cantilever Sled Base is a polished fixed-position seating solution for professional meeting and reception settings. Its burgundy leather-look upholstery creates a formal executive appearance, while the continuous polished chrome sled frame gives the chair a clean, open silhouette. Integrated fixed loop armrests follow the side profile and are upholstered to match the seat and back, contributing to a coordinated visual presentation. The chair accommodates one person and has overall dimensions of 620 x 660 x 1000 mm, with a 540 mm clear width between the armrests. Construction combines a steel internal frame, padded polyurethane cushioning, molded plywood or composite seat support, and a chrome-plated steel cantilever base. The seat uses 80 mm molded polyurethane foam at 45 kg/m3 density beneath a 90 mm finished cushion, while the backrest uses 70 mm polyurethane foam at 40 kg/m3 density. A 1.5 mm steel reinforcement panel supports the back, and the armrests and cantilever base use 25 mm diameter steel tube. The bright chrome finish is applied over a nickel layer. Integrated polymer glides help the chair suit tile, wood, and resilient hard floors. The chair is designed for stable, low-maintenance use rather than active adjustment. It has a fixed 450 mm seat height, no swivel movement, no height lift, and a fixed back angle of 100 degrees from horizontal. The cantilever frame provides controlled flex without casters or a gas cylinder, and the open front allows straightforward approach and exit with 340 mm of under-seat clearance. The fixed armrests provide forearm support and side impact support, while the mid-height back includes a defined lumbar support zone. Product targets include a 160 kg recommended user weight capacity, suitability for a user height up to 190 cm, and a 200,000-cycle cantilever flex durability target. This model is well suited to executive conference rooms, visitor seating across desks or meeting tables, reception waiting areas, and manager meeting offices. It can be arranged around boardroom tables, paired with low tables in waiting zones, or placed in front of executive desks for short-to-medium duration discussions. Its leather-look aesthetic is appropriate for commercial interiors seeking a managerial appearance without high-back mechanisms or adjustable controls. For procurement planning, the chair is supplied unbranded under model UBC-SLED-620-MB-BG and ships as one set in two cartons, with a packaged gross weight of 23 kg and a reference assembly time of 40 minutes per set. Carton dimensions are 850 x 420 x 720 mm, with a carton volume of 0.26 m3 per set. The indicative loading capacity is 135 sets in a 20GP container at 85 percent space utilization. Buyers should confirm floor protection needs, seating layout clearance, fixed seat-height compatibility with intended tables, and delivery and assembly resources for project quantities.

Mid-Back Leather Visitor Conference Chair with Chrome Cantilever Sled Base Specifications
