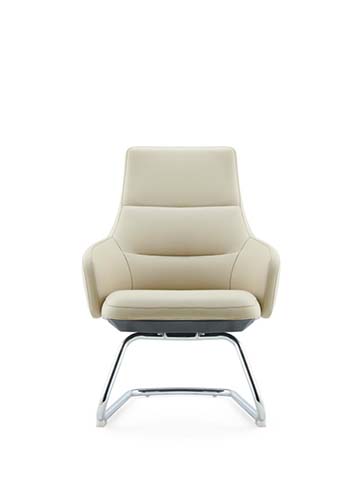

Product supplierBeige Upholstered Sled-Base Executive Guest Chair, Beige leather-look upholstery, 1.2 mm face thickness
Contact the supplier for production scheduling and quotation.
PRODUCT MODULE 01 / 06
Physical Dimensions
Automatic mm / inch conversion · Core engineering specifications
Data source: Structured from factory data; final measured values prevail.
| Overall dimensions (W × D × H) | 680 × 760 × 1040 mm | |
|---|---|---|
| Finished Seat Cushion Thickness | 90 mm | |
| Backrest Padding Thickness | 70 mm | |
| Lumbar Support Zone Height | 240 mm | |
| Clear Width Between Armrests | 540 mm |
PRODUCT MODULE 02 / 06
Weight, Load & Performance
Net weight / load capacity / users / durability
Data source: Product performance data; verify exact test conditions before procurement.
| Net weight | 17 kg | |
|---|---|---|
| Recommended user weight | 160 kg | |
| Frame static load | 250 kg | |
| Backrest static load | 110 kg | |
| Arm downward load | 67 kg per arm | |
| Seat impact durability | 100,000 cycles | |
| Back cyclic durability | 100,000 cycles | |
| Suggested seat occupancy | 1 person | |
| Warranty period | 5 years | |
| Seat Foam Density / Rebound Reference | 45 kg/m³ / 65% |
PRODUCT MODULE 03 / 06
Materials & Structure
Core acceptance fields · Panels / hardware / frame / upholstery
Data source: Subject to the factory material list and inspection report.
| Outer upholstery | Beige leather-look upholstery, 1.2 mm face thickness | |
|---|---|---|
| Seat foam | Molded polyurethane cushion, 100 mm thick and 45 kg/m3 density | |
| Back foam | Polyurethane padding, 80 mm thick and 40 kg/m3 density | |
| Internal seat board | 12 mm molded plywood or composite support board | |
| Back support shell | 8 mm molded plywood or reinforced polymer inner shell | |
| Sled frame | 25 mm chrome-plated steel tube, 1.5 mm wall thickness | |
| Floor glides | Black non-marking polymer glides, 40 x 20 mm | |
| Under-seat support plate | Black powder-coated steel plate, 3 mm thick | |
| Arm construction | Upholstered padded arm pads over steel-reinforced supports | |
| Joinery hardware | M8 steel bolts with threaded frame inserts | |
| Seam construction | Stitched horizontal and angled panel seams at 8 mm pitch | |
| Color offering | 1 standard beige color |
PRODUCT MODULE 04 / 06
Functions & Adjustment
Adjustment / rotation / tilt / mobility / storage features
Data source: Functional configuration; the supplier specification prevails.
| Fixed cantilever support | Polished steel sled frame provides gentle flex without tilt, rotation, or height change | |
|---|---|---|
| Integrated arm support | Padded continuous arms support forearms at 680 mm above floor | |
| High-back ergonomic support | Segmented back provides lumbar, mid-back, and upper-back contact zones | |
| Floor protection | Four replaceable polymer glides contact hard floors and reduce metal marking | |
| No-swivel design | The chair remains in a fixed facing position for formal visitor settings | |
| No recline lockout | Back angle is fixed at 100 degrees with no user-operated tilt mechanism | |
| Cantilever entry access | Open front frame allows side and front entry without a crossbar at knee height | |
| Stacking restriction | Non-stacking single chair due to high upholstered back and wide arm profile | |
| Maintenance access | Under-seat bolted construction allows upholstery or glide replacement | |
| Recline Angle / Lock Reference | 125° with 3suggested lock positions | |
| Tilt Tension User-weight Range | Reference adjustment coverage 120 kg | |
| Height Adjustment Stroke | 100 mm continuous travel |
PRODUCT MODULE 05 / 06
Packaging & Logistics
Verified carton / gross weight / assembly / loading data
Data source: Reference for export quotations and container planning.
| Reference Package Count | 1 set / 2 cartons | |
|---|---|---|
| Reference Assembly Time | 40 minutes per set | |
| Reference Carton Dimensions | 850× 420× 720 mm | |
| Reference Packaged Gross Weight | 23 kg/set | |
| Reference Carton Volume | 0.26 m³/set | |
| Indicative 20GP Loading | 135 sets at 85% space utilization | |
| Indicative 40HQ Loading | 320 sets at 85% space utilization |
PRODUCT MODULE 06 / 06
Applications & Usage
Recommended spaces / users / usage modes
Data source: Recommended applications based on product form and category.
| Executive office visitor seating | Place opposite a desk at a 450 mm seat height for brief discussions and laptop-side meetings | |
|---|---|---|
| Conference rooms | Use around meeting tables where a uniform non-swivel chair reduces distraction and preserves sight lines | |
| Reception and waiting areas | Beige upholstery and compact 680 mm width fit orderly guest rows or paired seating arrangements | |
| Manager workrooms | Use for one or two visitors adjacent to a credenza or round discussion table | |
| Hard-floor interiors | Recommended for tile, sealed wood, laminate, and concrete floors with non-marking glides | |
| Adult commercial users | Sized for users requiring a 520 mm seat width and 230 mm arm height above the seat | |
| Static seating applications | Best for meetings lasting 30 to 120 minutes rather than full-time task seating | |
| Recommended Matching Desk Size | 2.4 m executive desk |
STANDARD S1
EU Market Entry Requirements * EN Standards
EU Market Access Requirements* EN Standards
| EN 16139 applicability | Strength, durability, and safety requirements for non-domestic seating | |
|---|---|---|
| EN 1022 applicability | Determination of stability for seating | |
| EN 1728 applicability | Applicable standards and test results require confirmation | |
| EN 12521 applicability | Safety, strength, and durability requirements for non-domestic tables if coordinated with meeting tables |
STANDARD S3
Standards Applicable to China-Market Projects * GB Standards
Standards applicable to China-market projects
| GB/T 10357.2 applicability | Furniture mechanical testing for chairs and stools: seat and back static loads | |
|---|---|---|
| GB/T 10357.3 applicability | Chair and stool strength and durability test methods for repeated loading | |
| GB/T 3324 applicability | General technical requirements for wooden furniture, if the inner shell is wood-based | |
| GB 28007 applicability | Metal-furniture safety and performance requirements for the steel sled frame |
Standardized tender description text
This product must meet the following technical requirements: 1. GB/T 10357.2 applicability: Furniture mechanical testing for chairs and stools: seat and back static loads; 2. GB/T 10357.3 applicability: Chair and stool strength and durability test methods for repeated loading; 3. GB/T 3324 applicability: General technical requirements for wooden furniture, if the inner shell is wood-based; 4. GB 28007 applicability: Metal-furniture safety and performance requirements for the steel sled frame; Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.
