PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	620 × 640 × 890 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	13 kg
Recommended user weight	120 kg
Static seat-load verification target	1,600 N
Cantilever frame cyclic durability target	100,000 loading cycles
Back-rest backward force verification target	670 N
Frame deflection limit	25 mm under 1,600 N seat load
Floor protection	4 polymer end caps, 2 per runner
Seating capacity	1 person
Color options	1 visible beige upholstery color with black edge piping
Seat Foam Density / Rebound Reference	45 kg/m³ / 65%

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer seat-back shell	Continuous upholstered molded shell with beige facing and black perimeter piping
Seat cushion	80 mm polyurethane foam pad over seat support
Back padding	35 mm polyurethane foam or wadding over rigid inner shell
Upholstery facing	Beige upholstery textile or leather-like fabric, 1.2 mm face thickness
Edge trim	Black 5 mm exposed piping or welt following shell perimeter
Back decorative seam	V-shaped stitched seam with 8 mm stitch pitch
Internal support board	8 mm rigid molded composite or plywood seat-back substrate
Sled frame	25 mm diameter bent steel tube with polished chrome-look finish
Frame return rail	Continuous U-shaped lower steel rail connecting left and right cantilevers
Floor tips	30 x 50 mm polymer glides at four runner ends
Underseat mounting plate	2 mm powder-coated steel plate with four bolted frame connections
Corrosion protection	Chrome plating or nickel-chrome tube finish with welded joints

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Cantilever movement	Fixed sled base provides controlled vertical flex without height adjustment
Rotation	0-degree non-swiveling fixed orientation
Recline mechanism	No tilt mechanism; back provides static support at a fixed 100-degree torso angle
Height adjustment	Fixed 450 mm seat height with no gas cylinder
Arm support	Integrated upholstered side wraps up to 180 mm high, without separate armrest pads
Stacking	Non-stacking single chair based on continuous bucket and closed sled geometry
Floor protection	Four replaceable polymer glides reduce scratching on hard floors
Entry and exit	Open-front sled design allows side and front access in meeting-row layouts
Cleaning	Wipe-clean continuous upholstered face with sewn perimeter piping
Installation	Tool-based shell-to-frame assembly with 4 bolts and 4 glides
Suggested warranty	3 years structural frame and mechanism coverage
Recline Angle / Lock Reference	125° with 3suggested lock positions

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Meeting rooms	Fixed-height armless form supports compact visitor seating around conference tables
Reception areas	Beige shell and polished sled base suit neutral executive or hotel reception settings
Visitor seating	120 kg user target and cantilever frame suit short-duration guest use
Executive touchdown spaces	Armless profile allows quick pull-up use beside desks or low meeting tables
Training layouts	Non-swiveling fixed frame reduces movement distraction in arranged seating rows
Hard-floor interiors	Polymer glides are appropriate for tile, wood, and vinyl floors
Pairing recommendation	Use with a 760 mm high meeting table
Recommended Matching Desk Size	2.4 m executive desk

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · USC-SLED-BG-01

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · USC-SLED-BG-01

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · USC-SLED-BG-01Open Export Tool

Quick Actions

Post an RFQ

Product Description

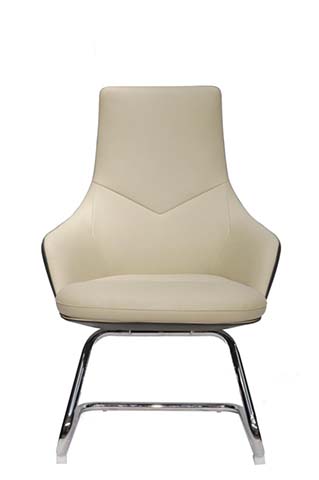

The Continuous Upholstered Sled-Base Guest Chair combines a unified bucket-style silhouette with a streamlined cantilever frame, making it suitable for professional visitor, conference, and reception settings. Designed as model USC-SLED-BG-01 and offered without a branded label, the chair presents a continuous beige upholstered seat-and-back shell outlined by black perimeter piping. A V-shaped stitched seam on the back adds a tailored visual detail, while integrated upholstered side wraps provide gentle lateral definition without separate armrest pads. Its armless profile and fixed orientation support an orderly, space-efficient layout around meeting tables or in arranged seating rows. The seat uses an 80 mm polyurethane foam cushion over a rigid seat support, with a finished cushion thickness of 90 mm. Back padding consists of 35 mm polyurethane foam or wadding over a molded inner shell, with a 70 mm finished padding depth and a 240 mm lumbar support zone. The facing is beige upholstery textile or leather-like fabric with a 1.2 mm face thickness, and the perimeter is finished with 5 mm black exposed piping or welt. Beneath the upholstery is an 8 mm rigid molded composite or plywood seat-and-back substrate. Support is provided by a polished chrome-look sled frame made from 25 mm bent steel tube. A continuous U-shaped lower rail connects the left and right cantilever sides, reinforcing the structured base. The chair does not swivel, tilt, adjust in height, or stack; instead, it offers fixed 450 mm seating and controlled vertical flex through the cantilever structure. The back is set at a fixed 100-degree torso angle for static support. Four replaceable polymer glides, two on each runner, help reduce scratching on tile, wood, vinyl, and other hard floors. Weighing 13 kg net, the chair is rated for a recommended user weight of 120 kg and is intended for short-duration guest use. Its construction targets include a 1,600 N static seat-load verification, 100,000 cantilever frame loading cycles, a 670 N backward-force verification, and a 25 mm frame deflection limit under the stated seat load. The neutral beige shell and polished frame suit reception lounges, executive touchdown areas, hotel-style waiting zones, training rooms, and conference spaces. For procurement, buyers should note the fixed seat height, non-stacking design, armless 540 mm clear width, and hard-floor glides. Each set ships in two cartons with a packaged gross weight of 23 kg and a carton volume of 0.26 cubic meters; reference assembly time is 40 minutes. The indicative 20GP loading quantity is 135 sets at 85 percent space utilization.

Continuous Upholstered Sled-Base Guest Chair Specifications
