PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	600 × 620 × 1010 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Net weight	11.5 kg
Recommended user weight capacity	160 kg
Recommended daily occupancy duration	8 hours
Seat static load verification target	102 kg
Backrest backward force target	68 kg
Arm downward static load target	45 kg per arm
Floor glide compressive capacity	90 kg per glide
Expected frame cyclic durability	100,000 cantilever flex cycles
Seat foam density	45 kg/m3
Back foam density	35 kg/m3

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Seat upholstery	Black smooth upholstery, likely leather-look PU or bonded leather, over padded foam
Back upholstery	Black upholstered face and side bolsters with softly rounded top corners
Seat cushion	80 mm molded polyurethane foam at 45 kg/m3 density and 40% rebound
Back cushion	60 mm polyurethane foam pad at 35 kg/m3 density and 35% rebound
Internal seat support	12 mm plywood or steel-edged composite seat board fastened to the frame
Back support board	9 mm molded board or steel-reinforced back carrier with edge binding
Cantilever frame	Polished bright chrome or stainless-look steel tube, 32 x 32 x 1.5 mm
Arm pads	Black curved polymer or leather-faced pads fixed over the metal arm curve
Frame finish	Mirror-polished or bright-chromed metal finish with continuous welds
Floor glides	Four black non-marring polymer glides with two per floor runner
Frame joints	Welded side-frame bends with concealed seat and back fasteners
Upholstery seam	Perimeter stitched seam with 7 stitches per 100 mm target

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

Fixed cantilever seating	Non-swivel fixed seat on two continuous side runners that flex slightly under load
Back support	Upright padded rectangular back with 5-degree backward ergonomic rake
Arm support	Integrated curved arms transfer from the front legs to the back supports without height adjustment
Floor protection	Four black glides distribute load and reduce sliding noise on tile, wood, or vinyl floors
Stacking capability	Non-stacking side-cantilever construction intended for individual placement
Seating adjustment	No tilt, lift, swivel, recline, or seat-depth adjustment; position is fixed
Cleaning and maintenance	Smooth black upholstery and polished frame allow wipe-down maintenance with no fabric crevices
Occupancy configuration	Single-person chair designed for placement in pairs or rows across conference and reception zones
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg
Height Adjustment Stroke	100 mm continuous travel
Rotation / Mobility Configuration	360° swivel with 5-caster multidirectional movement

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Carton dimensions	680 x 650 x 1050 mm
Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Conference rooms	Place around boardroom tables where fixed posture, padded support, and quiet glides are needed
Executive visitor seating	Use in front of desks for guests and clients, with arm support and a formal black finish
Reception areas	Deploy in waiting zones requiring wipe-clean surfaces and stable non-swivel seating
Interview rooms	Use for candidate or consultation seating where a neat, upright chair is required
Training or seminar rooms	Arrange in rows for adult attendees during sessions up to eight hours
Open-plan touchdown spaces	Pair with side tables for short meetings or temporary laptop discussions
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · VIS-CB580-BLK

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · VIS-CB580-BLK

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · VIS-CB580-BLKOpen Export Tool

Quick Actions

Post an RFQ

Product Description

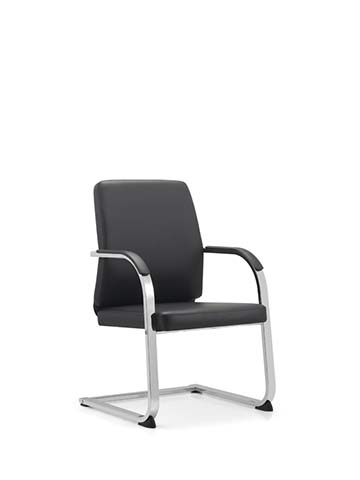

The Black Upholstered Conference Chair with Polished Cantilever Arms presents a formal, structured seating solution for meeting, visitor, and touchdown environments. Model VIS-CB580-BLK from an unbranded range is designed as a fixed conference and visitor chair with a black upholstered seat and back, integrated arms, and a continuous polished metal side frame. Its upright rectangular backrest has softly rounded top corners and side bolsters, while the curved arms flow from the front supports through to the back structure, producing a clean, tailored silhouette. Overall dimensions are 600 x 620 x 1010 mm, with a 540 mm clear width between the armrests. Construction combines padded comfort with a rigid cantilever layout. The finished seat cushion is 90 mm thick and the backrest padding is 70 mm thick. The seat uses an 80 mm molded polyurethane foam pad at 45 kg/m3 density, paired with a 12 mm plywood or steel-edged composite support board. The back uses a 60 mm polyurethane foam pad at 35 kg/m3 density over a 9 mm molded board or steel-reinforced carrier with edge binding. The frame is formed from polished bright chrome or stainless-look steel tube measuring 32 x 32 x 1.5 mm, with mirror-polished or bright-chromed finishing and continuous welds. Black polymer or leather-faced arm pads follow the metal arm curve, and four black polymer floor glides complete the base. Functionally, the chair is non-swivel and non-reclining, with no tilt, lift, or seat-depth adjustment. The two continuous side runners provide a slight flex under load, while the backrest offers a five-degree backward rake and a 240 mm lumbar support zone. The fixed arms provide upper-body support without adjustment, and the glides help reduce sliding noise on tile, wood, or vinyl floors. The chair is non-stacking and intended for individual placement. Smooth black upholstery and a polished frame support simple wipe-down maintenance with no fabric crevices. This model suits boardrooms, executive desk-side visitor positions, reception and waiting areas, interview rooms, training or seminar rooms, and open-plan meeting or laptop touchdown spaces. Its formal appearance coordinates with boardroom tables, reception desks, and side tables while maintaining a stable, upright seating position for sessions up to eight hours. Procurement teams should note the recommended 160 kg user weight capacity, 11.5 kg net weight, and fixed-position design when comparing chairs. Delivery is supplied as one set across two cartons, with a packaged gross weight of 23 kg and a reference assembly time of 40 minutes per set. Buyers should also confirm upholstery preference, arm pad finish, floor surface compatibility, and the need for individual rather than stackable seating before specification.

Black Upholstered Conference Chair with Polished Cantilever Arms Specifications
