PRODUCT MODULE 01 / 06

Physical Dimensions

Automatic mm / inch conversion · Core engineering specifications

Data source: Structured from factory data; final measured values prevail.

Overall dimensions (W × D × H)	640 × 660 × 1080 mm
Finished Seat Cushion Thickness	90 mm
Backrest Padding Thickness	70 mm
Lumbar Support Zone Height	240 mm
Clear Width Between Armrests	540 mm

PRODUCT MODULE 02 / 06

Weight, Load & Performance

Net weight / load capacity / users / durability

Data source: Product performance data; verify exact test conditions before procurement.

Recommended user weight capacity	135 kg
Net weight	17.5 kg
Upholstery abrasion acceptance target	50,000 cycles
Seat foam density	40 kg/m3
Back foam density	35 kg/m3
Foam rebound acceptance target	35%
Seat static load acceptance target	680 kg over 1 hour
Backrest backward static load target	136 kg
Base static load acceptance target	1134 kg
Seating capacity	1 person

PRODUCT MODULE 03 / 06

Materials & Structure

Core acceptance fields · Panels / hardware / frame / upholstery

Data source: Subject to the factory material list and inspection report.

Outer seat and back upholstery	Dark blue coated fabric or leather-look upholstery with stitched perimeter panels
Seat cushion	Molded polyurethane foam, 90 mm thick, 40 kg/m3 target density
Back cushion	Molded polyurethane foam, 70 mm thick, 35 kg/m3 target density
Internal seat support	12 mm bent plywood or 1.5 mm steel seat pan enclosed in the upholstered shell
Back support frame	1.2 mm welded steel or formed sheet inner frame
Arm and side frame	25 mm polished chrome-finish tubular steel continuous loop
Swivel column	50 mm polished steel central gas-style or bearing column
Four-star base	Polished aluminum-alloy or chrome-finish steel four-leg base
Floor glides	35 mm polymer or nylon non-marking glides with black base pads
Swivel bearing	Steel rotary bearing with 360-degree rotation capacity
Surface finish	Mirror-polished chrome-style metal finish with smooth weld and tube junctions
Seam construction	Upholstered edge seams with 8 stitches per 100 mm target pitch

PRODUCT MODULE 04 / 06

Functions & Adjustment

Adjustment / rotation / tilt / mobility / storage features

Data source: Functional configuration; the supplier specification prevails.

360-degree swivel	Central rotary bearing allows full 360-degree horizontal rotation for conference use
Fixed-height seating	470 mm fixed seat height suited to 760 mm conference tables
Stationary glide movement	Four non-marking floor glides provide stable positioning and protect hard floors
Integrated arm support	Continuous wraparound steel arms provide 220 mm forearm support above the seat
High-back torso support	660 mm high back supports the lumbar and lower thoracic region
Slight flex-back comfort	Fixed upholstered back shell is specified for controlled comfort flex without tilt lockout
Stacking compatibility	Non-stacking single chair with rigid four-star base
Floor clearance	70 mm minimum underside clearance for cleaning access around the base
Orientation and entry	Open-front seat allows front entry with side arms positioned 520 mm apart
Recommended fabric color count	1 standard dark blue upholstery color
Recline Angle / Lock Reference	125° with 3suggested lock positions
Tilt Tension User-weight Range	Reference adjustment coverage 120 kg

PRODUCT MODULE 05 / 06

Packaging & Logistics

Verified carton / gross weight / assembly / loading data

Data source: Reference for export quotations and container planning.

Reference Package Count	1 set / 2 cartons
Reference Assembly Time	40 minutes per set
Reference Carton Dimensions	850× 420× 720 mm
Reference Packaged Gross Weight	23 kg/set
Reference Carton Volume	0.26 m³/set
Indicative 20GP Loading	135 sets at 85% space utilization
Indicative 40HQ Loading	320 sets at 85% space utilization

PRODUCT MODULE 06 / 06

Applications & Usage

Recommended spaces / users / usage modes

Data source: Recommended applications based on product form and category.

Executive office	High-back support and polished frame suit a manager or executive desk setting
Conference room	Fixed glides and 470 mm seat height suit 760 mm meeting tables
Visitor and guest seating	Stationary feet prevent unintended rolling while guests turn by swivel bearing
Hard-floor meeting space	Non-marking glides are suitable for wood, tile, and polished stone floors
Formal reception area	Dark blue upholstery and polished metal create a restrained corporate appearance
Recommended table pairing	Pair with desks or meeting tables 760 mm high and 800 mm deep
Recommended Matching Desk Size	2.4 m executive desk
Reference Daily Use Duration	8 hours/day; confirm by ergonomic testing

STANDARD S1

EU Market Entry Requirements * EN Standards

EU Market Access Requirements* EN Standards

No standards data is available for this market.

STANDARD S2

North America Purchasing & Inspection Reference * ANSI/BIFMA Standards

US and Canada office-furniture standards

North America procurement and testing reference	Recommended references: ANSI/BIFMA X5.1

STANDARD S3

Standards Applicable to China-Market Projects * GB Standards

Standards applicable to China-market projects

No standards data is available for this market.

Standardized tender description text

This product must meet the following technical requirements:
1. Technical standards and test reports must be supplied during tender or purchase confirmation;
Final delivery parameters, test reports, and acceptance criteria are subject to the purchase contract.

GENERATED EXPORTS

Ready-to-use export tools

Export data is generated from the current published product record.

Technical Report PDF

Directly download an English report in metric or imperial units.

PDF · OFC-HB4S-NAVY-001

Complete Parameter Workbook

Download all product information and parameter modules in English.

XLSX · OFC-HB4S-NAVY-001

International Listing Template

English title, specifications, materials, standards and purchasing fields.

XLSX · LISTING

Customs Declaration Data

Prepare customs description, material, usage, dimensions and declaration elements.

CUSTOMS · OFC-HB4S-NAVY-001Open Export Tool

Quick Actions

Post an RFQ

Product Description

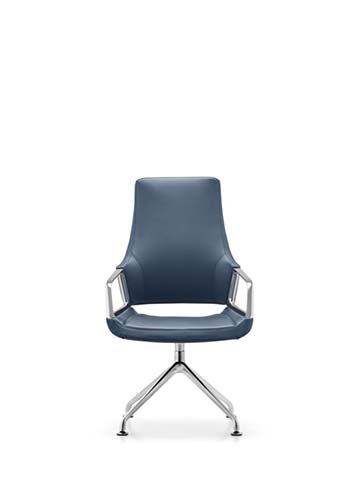

The Contemporary High-Back Swivel Conference Chair presents a structured, corporate seating form with dark blue upholstery, a tall padded back, and a polished chrome-finish metal framework. Its continuous loop arms wrap from the seat sides toward the back, visually linking the armrests, side frame, and four-star base into one refined silhouette. The chair has an overall dimension of 640 x 660 x 1080 mm, with a clear width of 540 mm between armrests. Dark blue coated fabric or leather-look upholstery is finished with stitched perimeter panels, giving the seat and back a tailored appearance suited to restrained professional interiors. Construction centers on a steel inner frame and upholstered cushioning. The seat uses molded polyurethane foam 90 mm thick with a 40 kg/m3 target density, while the back cushion uses molded polyurethane foam 70 mm thick with a 35 kg/m3 target density. Internal support is provided by a bent plywood or steel seat pan, paired with a welded steel or formed sheet back frame. The arm and side structure is a 25 mm polished chrome-finish tubular steel loop, and the chair sits on a polished aluminum-alloy or chrome-finish steel four-leg base. A 50 mm polished steel central gas-style or bearing column enables full 360-degree horizontal rotation. The fixed seat height is 470 mm, intended for use with 760 mm conference tables. Rather than casters, the chair is fitted with 35 mm polymer or nylon non-marking glides with black base pads, supporting stable positioning while helping protect wood, tile, and polished stone floors. The fixed arms provide integrated forearm support, and the high back offers lumbar and lower thoracic support. The fixed upholstered back shell is specified for controlled comfort flex without tilt lockout, making the chair appropriate for meetings, visitor discussions, and desk-focused work where swivel access is useful but rolling movement is not desired. It is a non-stacking, single-seat design. This model works well in executive offices, conference rooms, formal reception areas, and hard-floor meeting spaces. Its dark blue upholstery and bright polished frame balance presence with a conventional business look. Procurement teams should note the unbranded product designation, model OFC-HB4S-NAVY-001, recommended user weight capacity of 135 kg, and net weight of 17.5 kg. The acceptance targets include 50,000 upholstery abrasion cycles, 35% foam rebound, and a 680 kg seat static-load test over one hour. Each set ships in two cartons, with packaged gross weight of 23 kg, reference assembly time of 40 minutes, and 20GP loading of 135 sets at 85% space utilization. Buyers should also confirm upholstery type, base material, seat support construction, floor conditions, and matching 760 mm high desks or meeting tables before specification.

Contemporary High-Back Swivel Conference Chair Specifications
